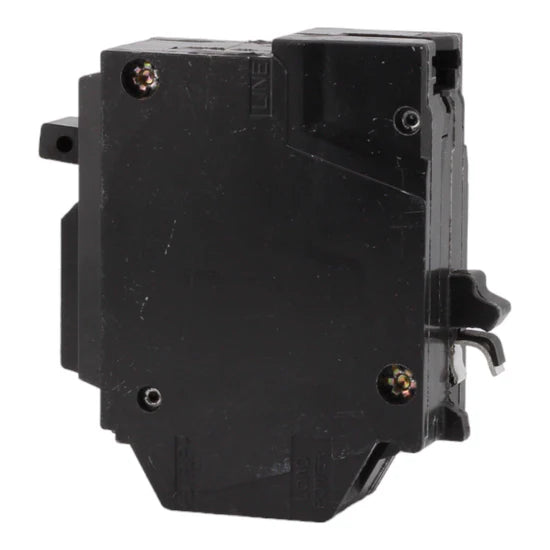

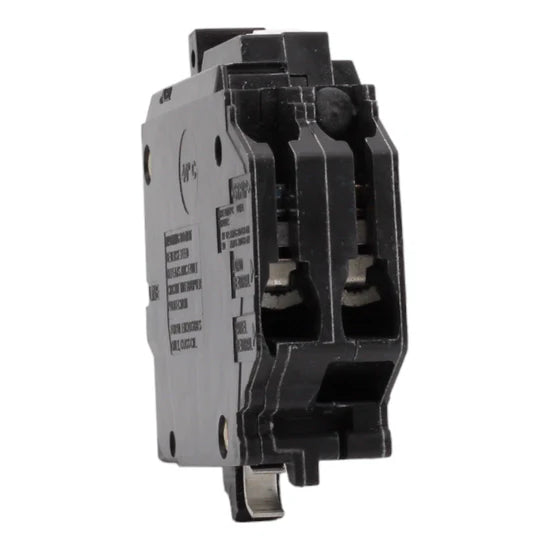

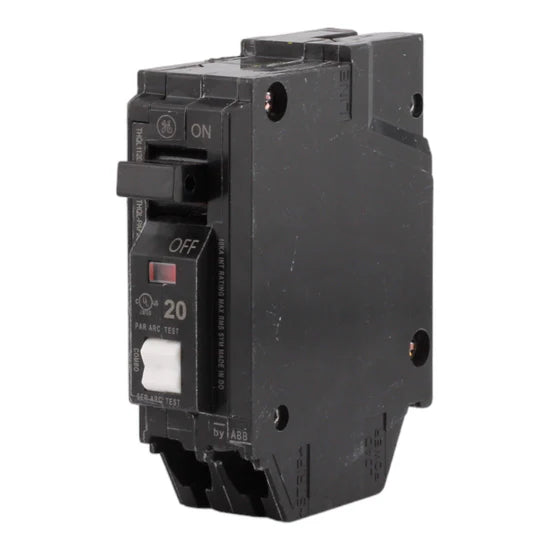

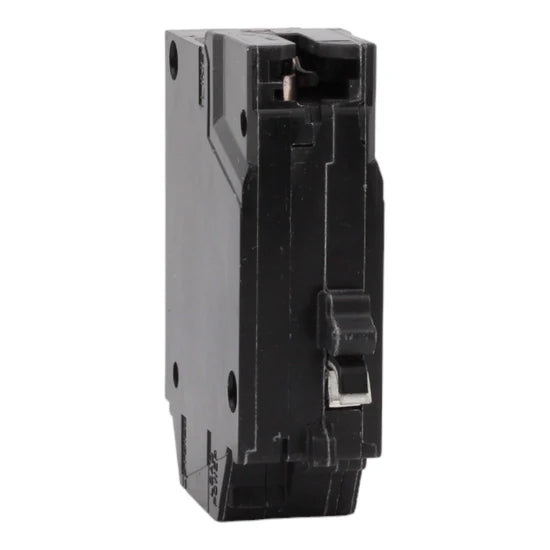

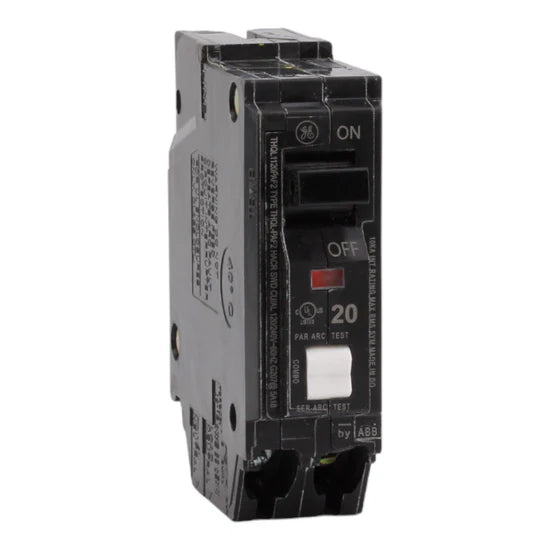

GE THHQL1120PAF2 20A 1P AFCI Circuit Breaker – Plug-On Neutral – 120/240V

The GE THHQL1120PAF2 plug-on neutral AFCI circuit breaker provides dependable 20 Amp, single-pole arc-fault protection for 120/240V residential circuits. Designed for ABB THHQL loadcenters, it features advanced combination AFCI technology that detects both series and parallel arcing faults to help prevent electrical fires. The plug-on neutral design simplifies installation and reduces wiring time, making it an efficient and reliable solution for modern residential safety requirements.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kAIC

Key Specifications

• Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-On Neutral (Plug-in)
• Series: THHQL
• Application: Residential branch circuit protection
• Compatible Load Centers: ABB THHQL loadcenters

Technical Specifications

• Wire Size Range: #14–8 AWG Cu/Al
• Terminal Tightening Torque: 35.4 lb-in
• Connection Type: Plug-on neutral terminal
• Operating Mechanism: Thermal-magnetic with integrated AFCI protection
• Interrupt Rating: 22 kAIC

Product Data

• Manufacturer: ABB (formerly GE Industrial Solutions)
• Model Number: THHQL1120PAF2
• UPC: 783164652857

Dimensions:

• • Height: 3.28 in
  • Width: 1.0 in
  • Depth: 2.38 in
  • Weight: 0.529 lbs
  • Certifications: UL Listed, HACR Rated
