GE

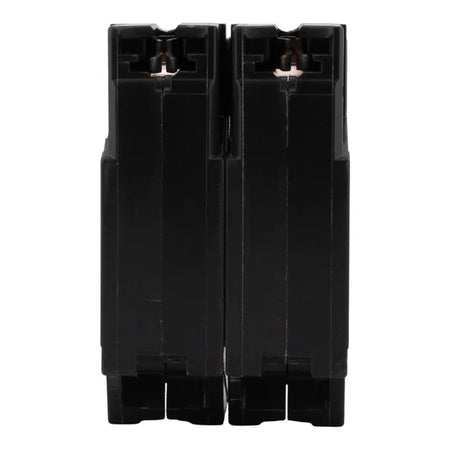

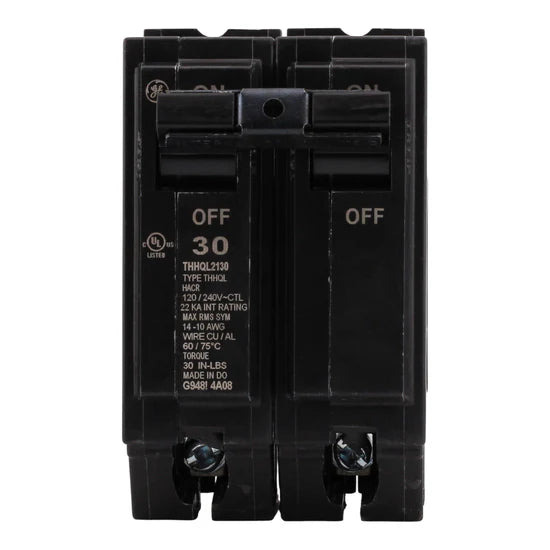

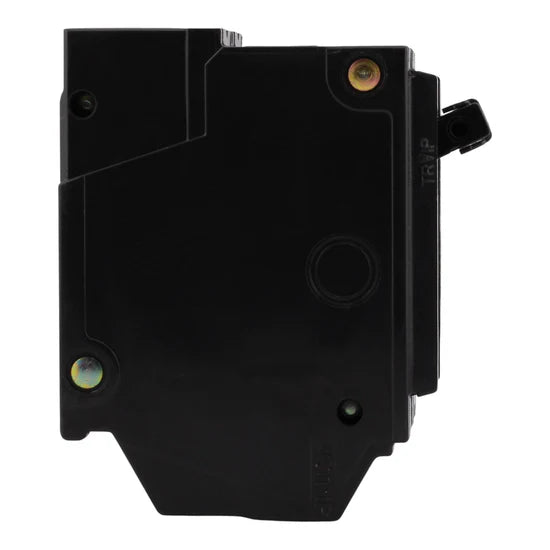

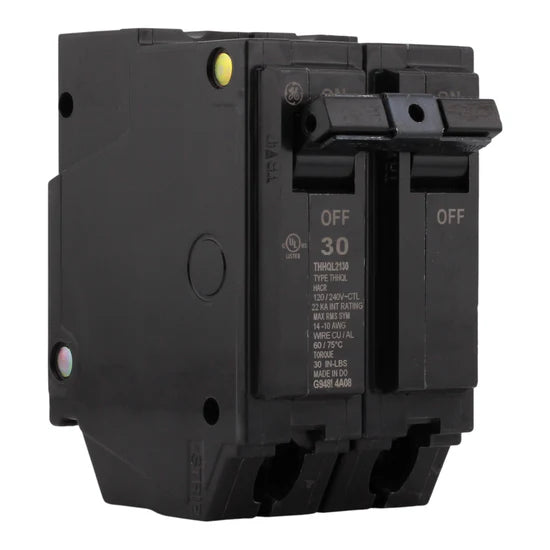

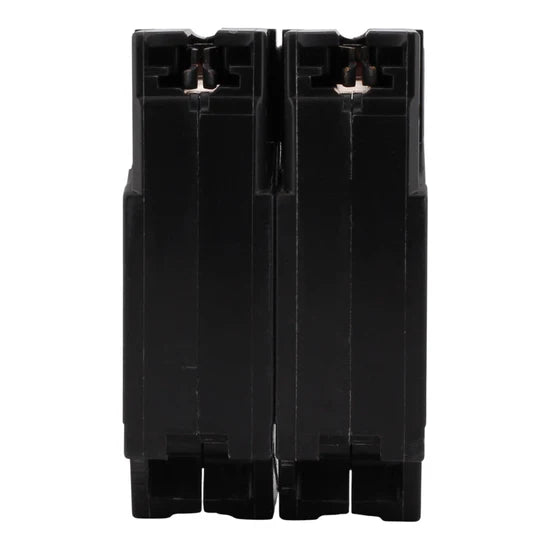

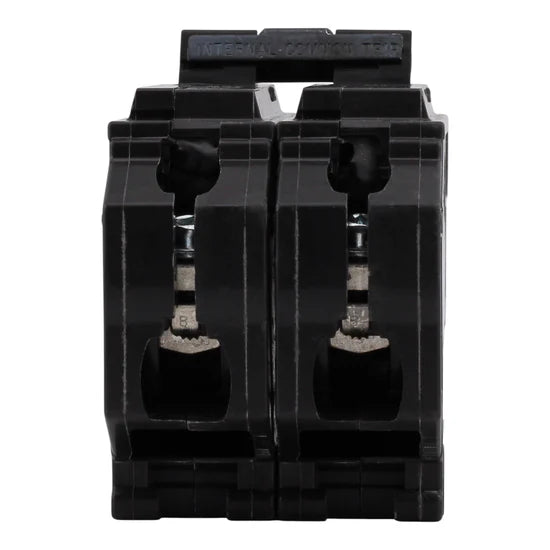

GE THHQL2130 30A 2-Pole Thermal-Magnetic Plug-In Circuit Breaker – Plug-In – 120/240V AC

In stock
SKU: THHQL2130 GTIN/UPC: 783164117516
$32.63

Select product select item condition:

SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The GE Q Line THHQL2130 is a 30 Amp, 2-pole thermal-magnetic circuit breaker designed for 120/240V AC circuits in load centers and lighting panels. Featuring plug-in mounting and a quick-make/quick-break mechanism, it provides reliable overcurrent protection with a 22kA interrupting capacity. The breaker’s LI trip function and common trip bar ensure safe operation, clear trip indication, and enhanced protection for both residential and commercial applications.

Electrical Ratings:

  • Amperage: 30 Amps
  • Voltage: 120/240V AC
  • Interrupt Rating: 22 kAIC
  • Frequency: 50/60 Hz

Key Specifications:

  • Breaker Type: Thermal-Magnetic
  • Poles: 2-Pole
  • Product Range: Q Line
  • Mounting Mode: Plug-In
  • Terminal Type: Plug-On
  • Application: Residential and commercial overcurrent protection
  • Special Rating: HACR Rated

Technical Specifications:

  • Wire Size: (1) #14–4 AWG Cu/Al
  • Tightening Torque: 27.0 lb-in
  • Dimensions: 3.28" H × 2.0" W × 2.56" D
  • Weight: 0.65 lbs
  • Certifications: UL Listed, HACR Rated

Product Data:

  • Manufacturer: ABB
  • Brand: GE
  • Model Number: THHQL2130
  • UPC: 783164117516
  • Type Circuit Breakers
  • Vendor GE
  • Brand GE
