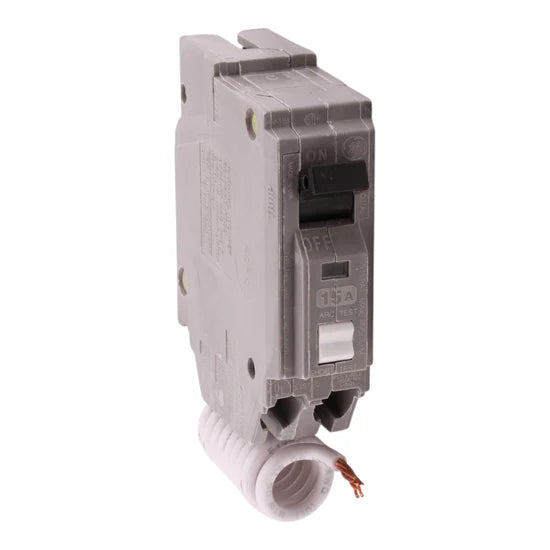

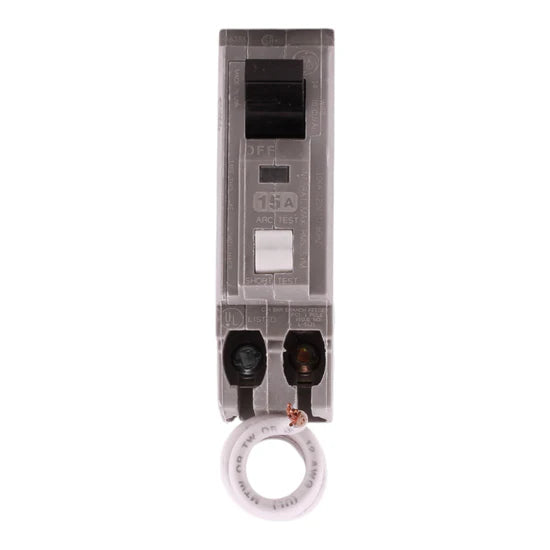

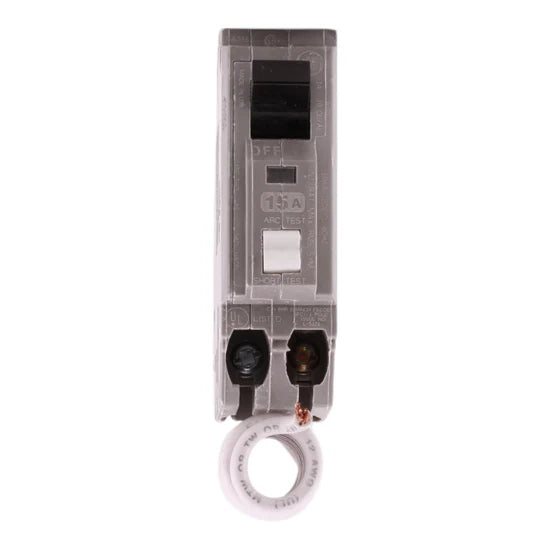

GE THQL1115AF 15A 1-Pole AFCI – Pigtail Neutral – 120V

The GE THQL1115AF is a 15 Amp, 1-Pole AFCI (Arc-Fault Circuit Interrupter) breaker designed for Q-Line loadcenters. It provides reliable protection for 120V residential circuits, detecting arc faults to enhance electrical safety and reduce the risk of fire.

Electrical Specifications

• Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC

Mechanical & Mounting Specifications

• Mounting Mode: Plug-in

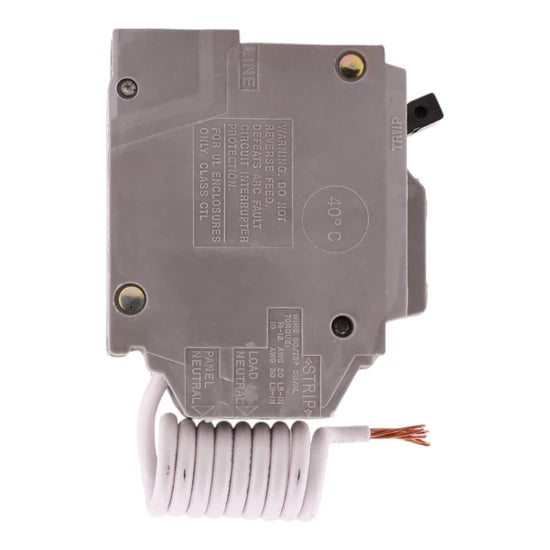

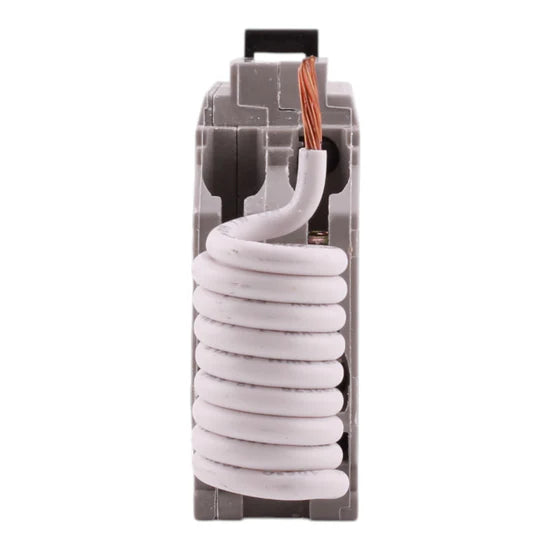

• Connection Terminals: Pigtail neutral
• Wire Size Range: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
• Tightening Torque: 35.4 lb-in

Certifications

• UL Listed
• HACR Rated
• SWD Rated

Physical Dimensions

• • Height: 3.28 in
  • Width: 1.0 in
  • Depth: 2.38 in
  • Weight: 0.419 lbs

Key Features

• Reliable 15A, 1-Pole AFCI protection for 120V circuits
• Pigtail neutral for simple wiring in Q-Line loadcenters
• Arc-fault detection enhances residential electrical safety
• Plug-in mounting for secure and easy installation
• UL, HACR, and SWD rated for compliance and safety
