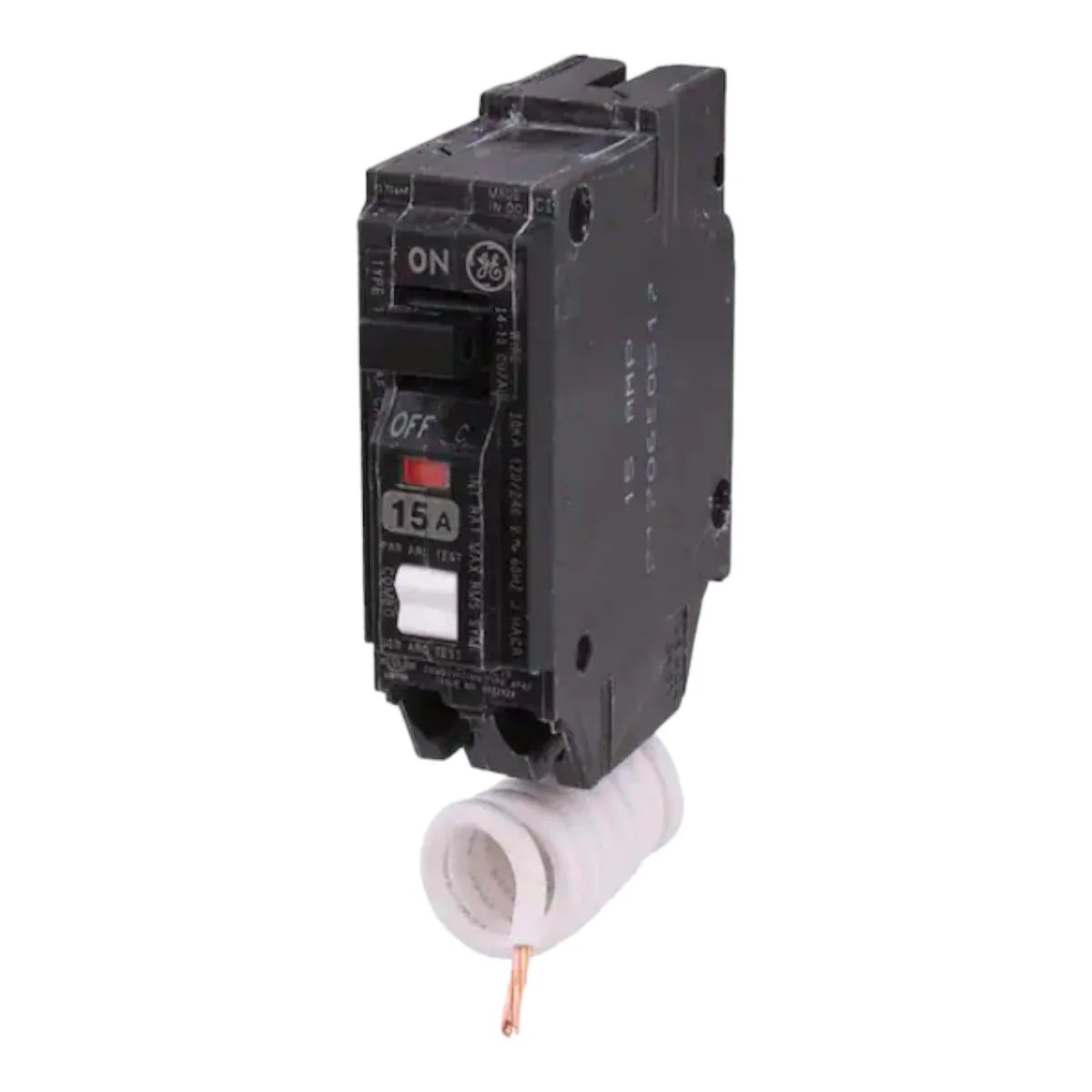

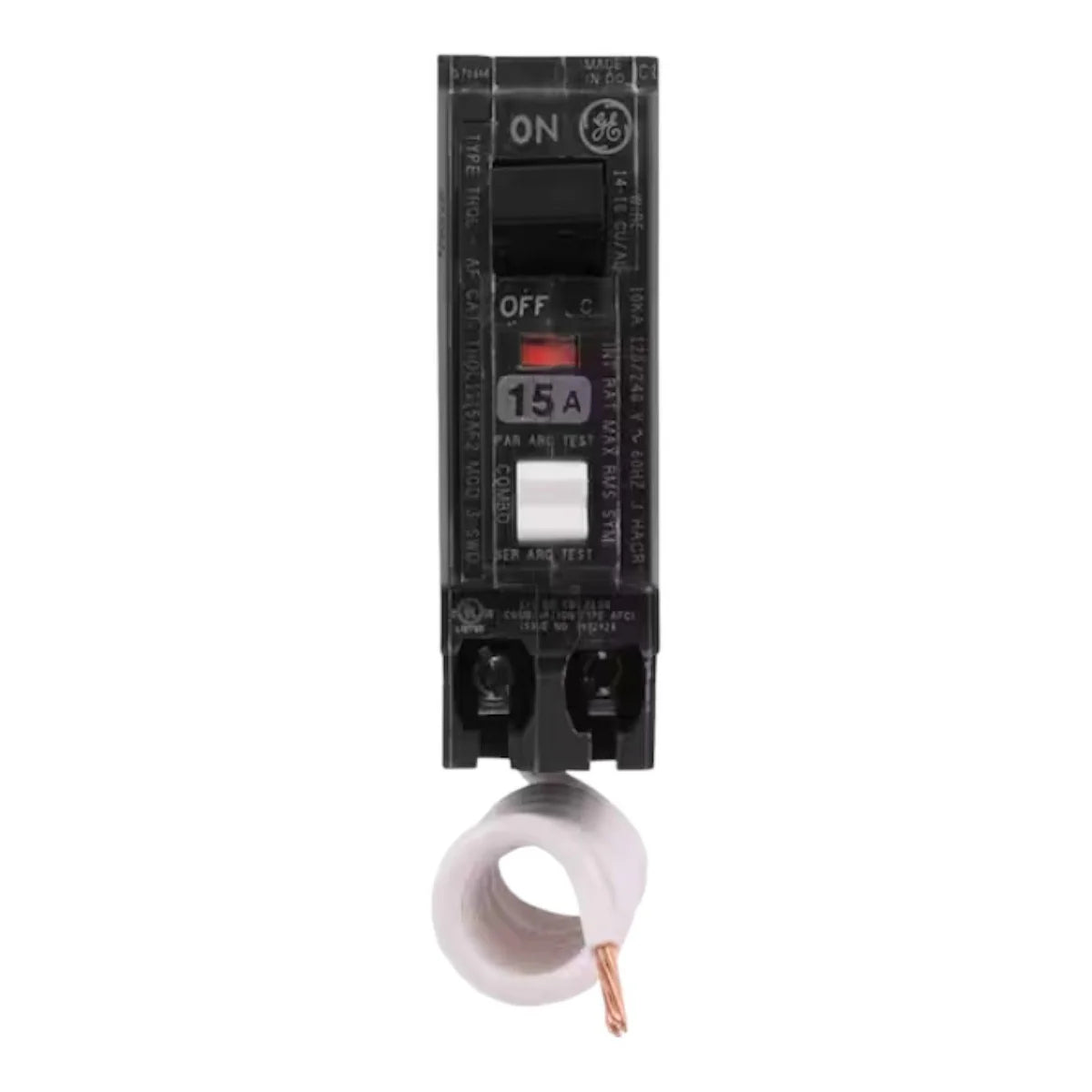

GE THQL1115AF2 Q Line 15A 1-Pole AFCI Pigtail Neutral Circuit Breaker – 120V
Couldn't load pickup availability
Ask an expert
The GE THQL1115AF2 15 Amp single-pole AFCI circuit breaker is designed to provide advanced arc-fault protection for 120V branch circuits. Engineered for use in GE Q Line load centers, this breaker helps reduce the risk of electrical fires by detecting dangerous arc faults and automatically disconnecting power when needed. Featuring a plug-in design with a pigtail neutral connection, it offers dependable performance and straightforward installation for residential and light commercial applications.
Voltage and rating
- Current Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Interrupting Capacity: 10 kAIC
- Frequency: 50/60 Hz
Key Specifications
- Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
- Number of Poles: 1-Pole
- Mounting Type: Plug-In
- Neutral Type: Pigtail Neutral
- Series: Q Line
- Application: Branch circuit protection
- Compatible Load Centers: GE Q Line load centers
Technical Specifications
- Wire Size Range: #14–8 AWG
- Terminal Tightening Torque: 20 lb-in
- Connection Type: Pigtail neutral lead
- Operating Mechanism: Thermal-magnetic with integrated AFCI protection
- Interrupt Rating: 10 kAIC
- Certifications: UL Listed
Product Data
- Manufacturer: ABB
- Brand: GE
- Model Number: THQL1115AF2
- UPC: 783164652802
- Dimensions:
- Height: 2.92 in
- Width: 1.0 in
- Depth: 3.28 in
- Weight: 0.39 lbs
- Type Circuit Breakers
- Vendor GE
- Brand GE
