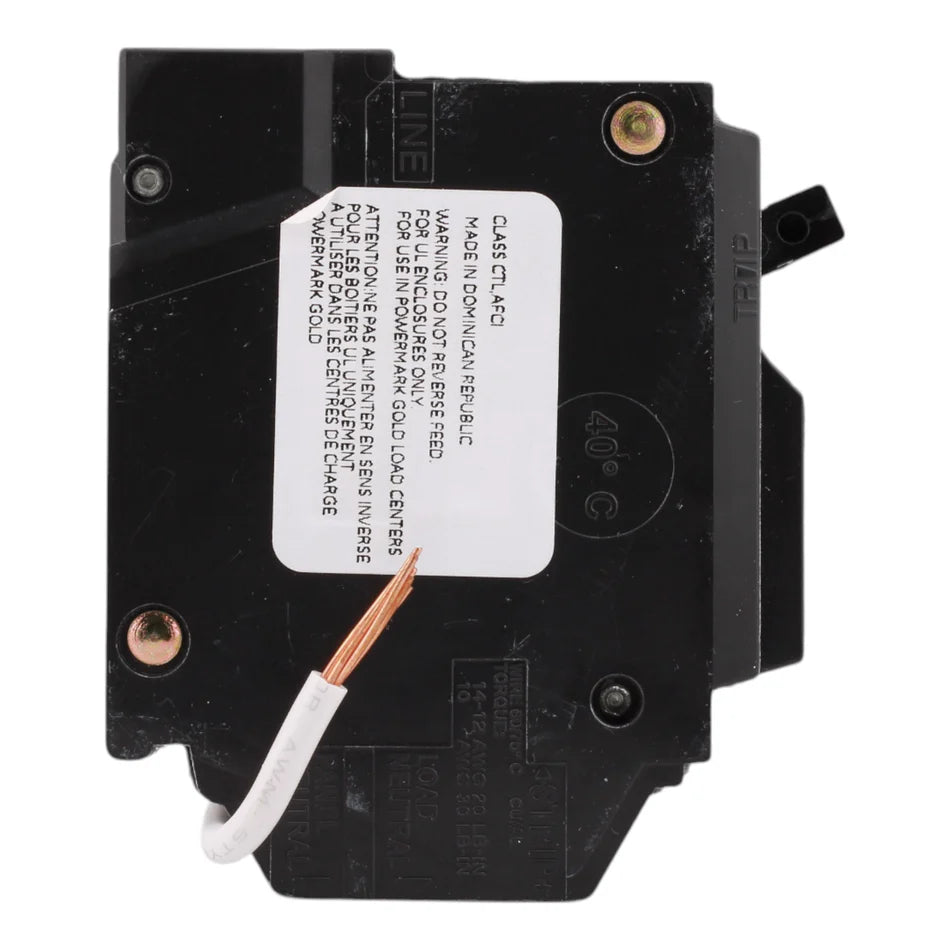

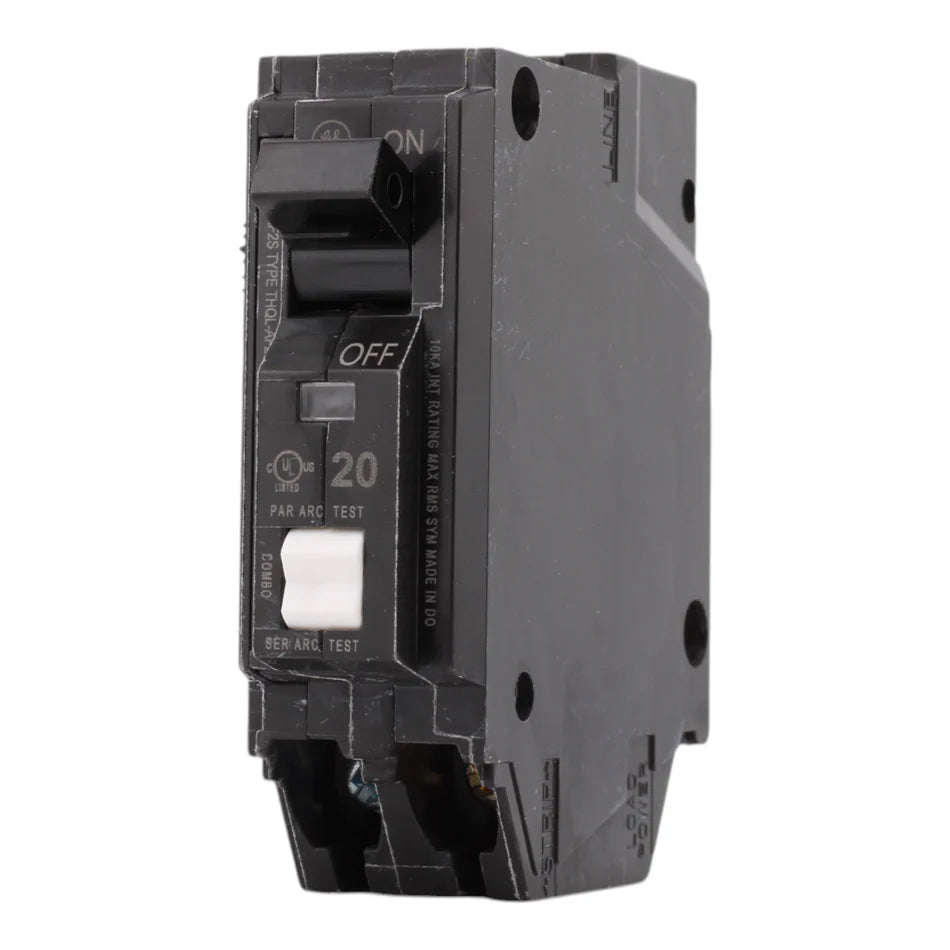

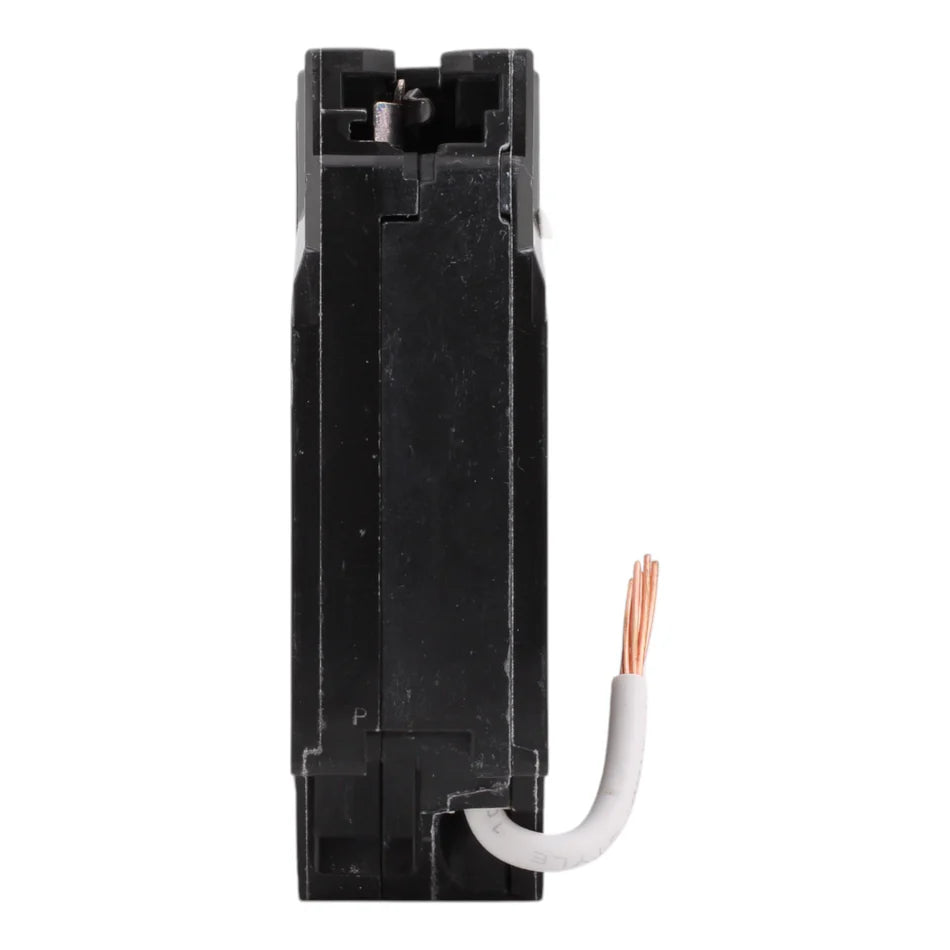

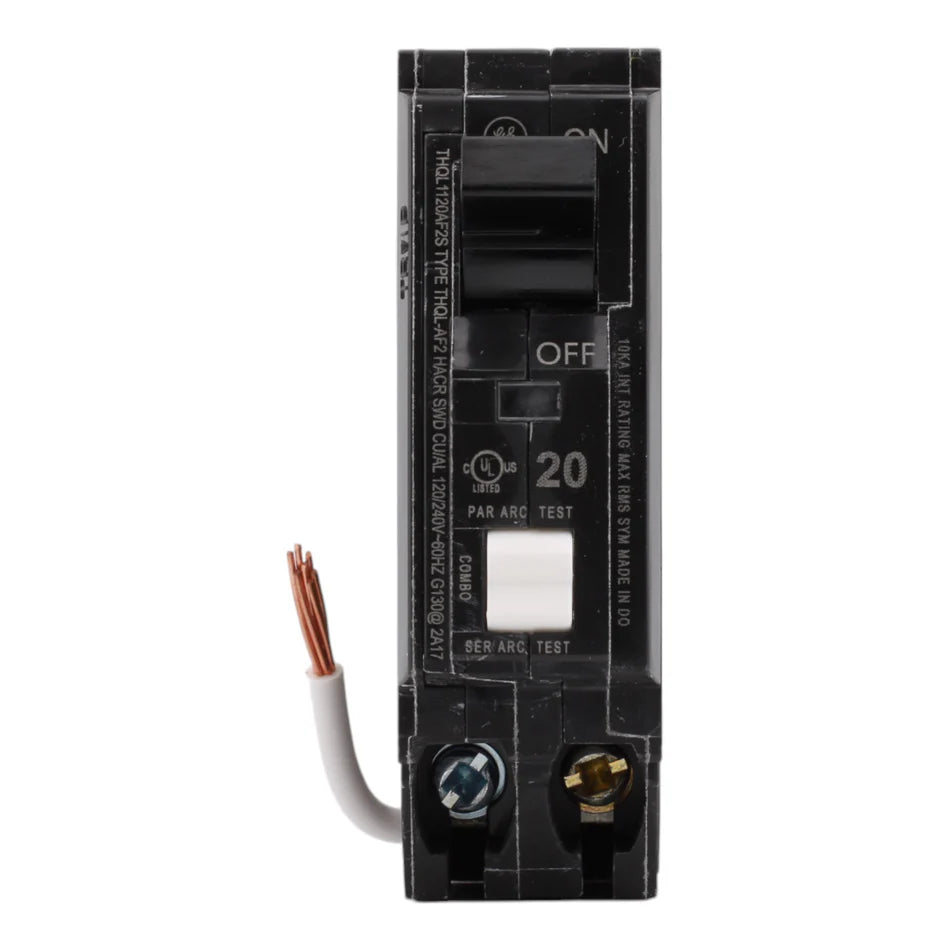

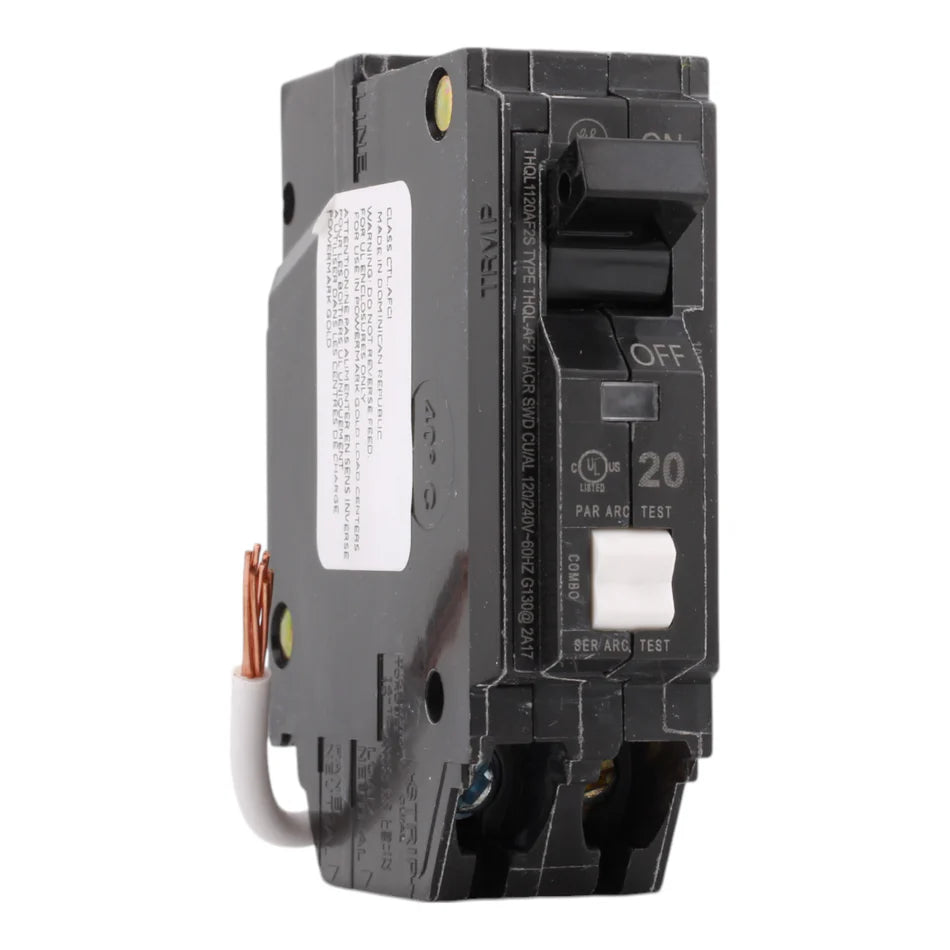

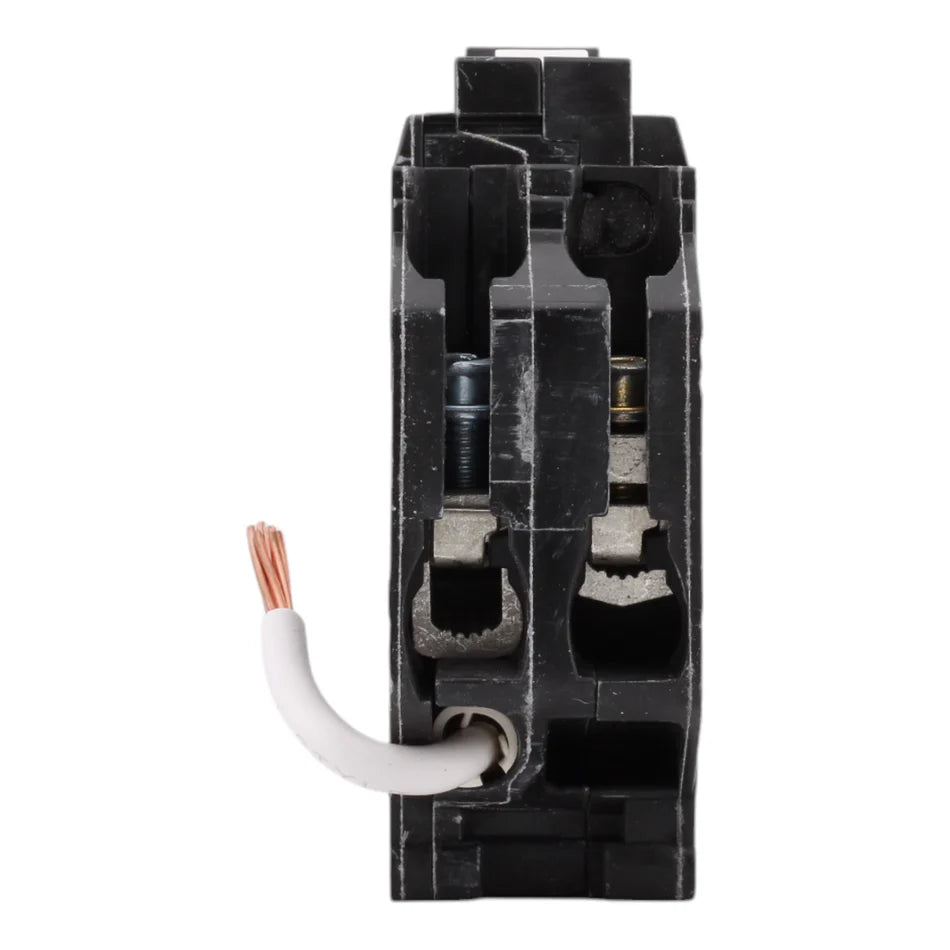

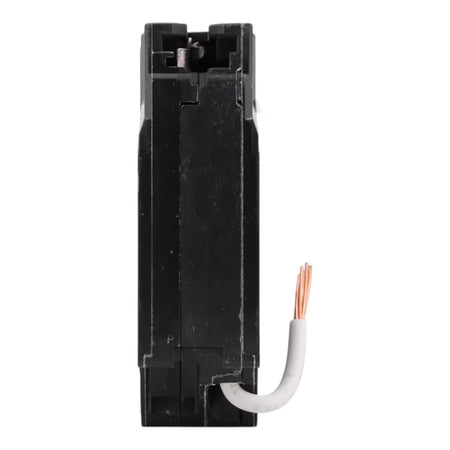

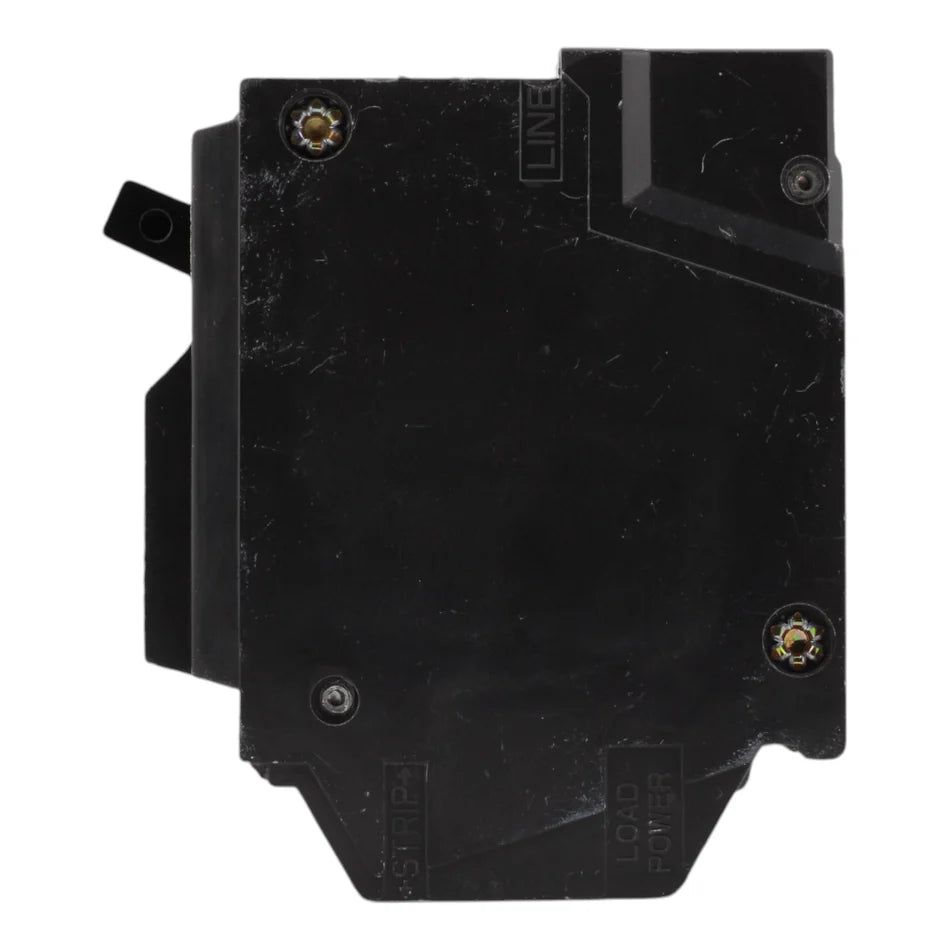

GE THQL1120AF2S 20A 120V Single-Pole AFCI Circuit Breaker – Plug-In with Pigtail

The THQL1120AF2S from GE is a 20-amp, single-pole Arc Fault Circuit Interrupter (AFCI) breaker designed to protect branch circuits from dangerous arc faults that can cause electrical fires.

This breaker features a plug-in mount and a pigtail neutral connection, making it compatible with standard GE load centers. Built with a quick-make/quick-break mechanism and thermal-magnetic protection, it delivers dependable performance for residential applications where AFCI protection is required by code.

Electrical Ratings

• Amperage Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Number of Poles: Single Pole

Breaker Features

• Type: Arc Fault Circuit Breaker (AFCI)
• Mounting Type: Plug-In Mount
• Neutral Connection: Pigtail Connection
• Breaker Mechanism: Quick-Make / Quick-Break
• Circuit Protection Type: Thermal-Magnetic
• Compatibility: GE Panels

Certifications

• UL Listed

Physical Specifications

• Dimensions (W × H × D): 1 in × 2.92 in × 3.28 in
• Net Weight: 0.35 lbs

Product Data

• • Brand: GE
  • Model Number: THQL1120AF2S
  • Global Commercial Alias: THQL1120AF2S
  • UPC: 783164618242
