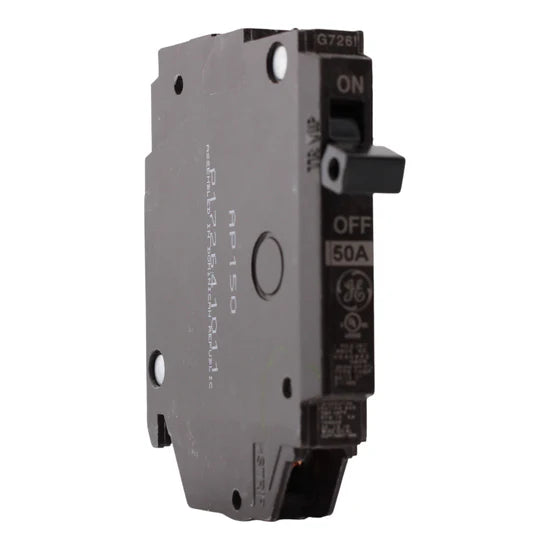

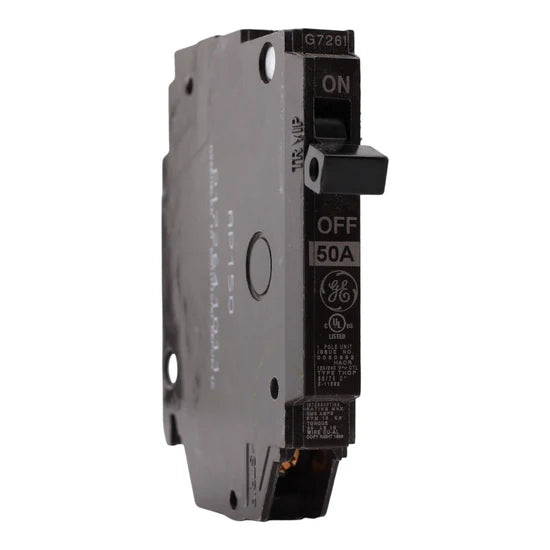

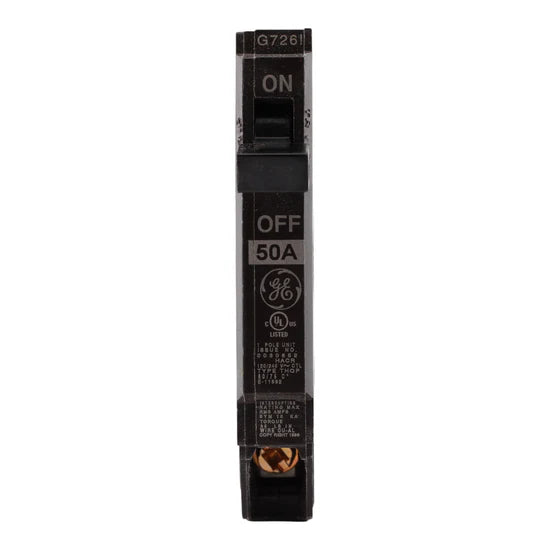

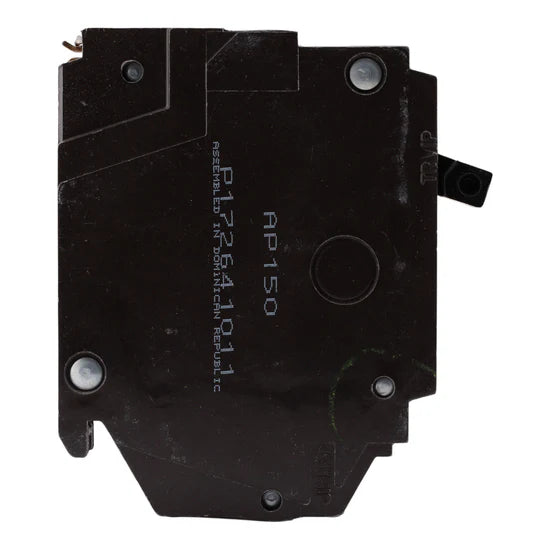

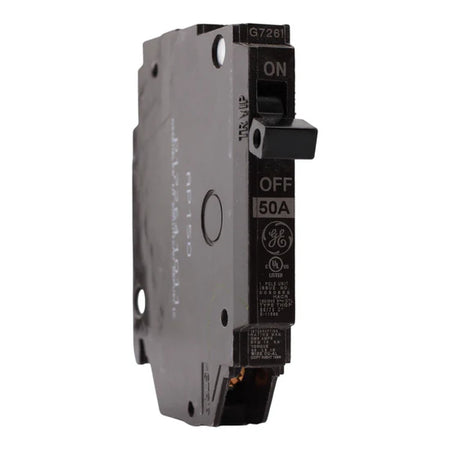

GE THQP150 50A 1-Pole Thermal Magnetic Circuit Breaker – Plug-In – 120/240V

The GE THQP150 thin series circuit breaker provides reliable 50 Amp, 1-Pole protection for GE PowerMark and ABB ReliaHome load centers. Its half-width plug-in design maximizes panel space while maintaining dependable overload and short-circuit protection.

Voltage and Rating

• Amperage: 50 Amps
• Voltage: 120/240 Volts AC
• Poles: 1-Pole
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Thermal Magnetic Miniature Circuit Breaker (Thin/Half-Size)
• Mounting Mode: Plug-in (Half-Width)
• Terminal Type: Box Lug
• Wire Size: #8–4 AWG Cu/Al
• Series: Q-Line Thin Series (THQP)

Product Data

• Manufacturer: ABB (formerly GE Industrial Solutions)
• Brand: GE
• Model Number: THQP150
• UPC: 783164134476

Dimensions

• Height: 3.28 in
• Width: 0.5 in
• Depth: 2.38 in
• Weight: 0.15 lbs

Certifications

• UL Listed
• CSA Certified
• HACR Rated
