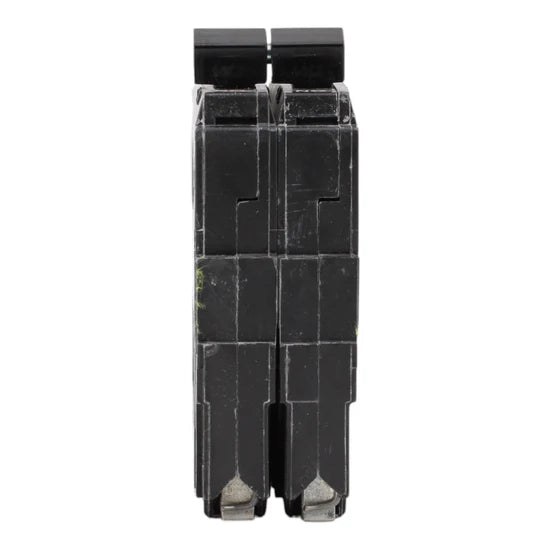

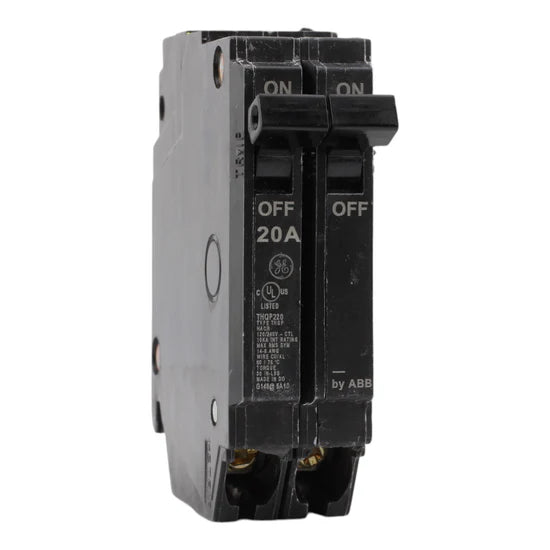

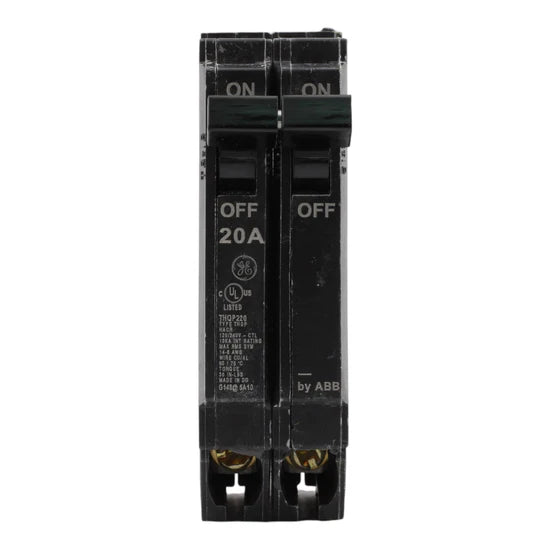

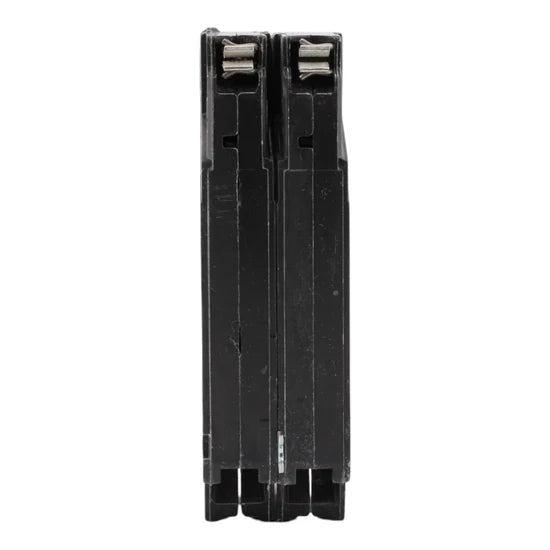

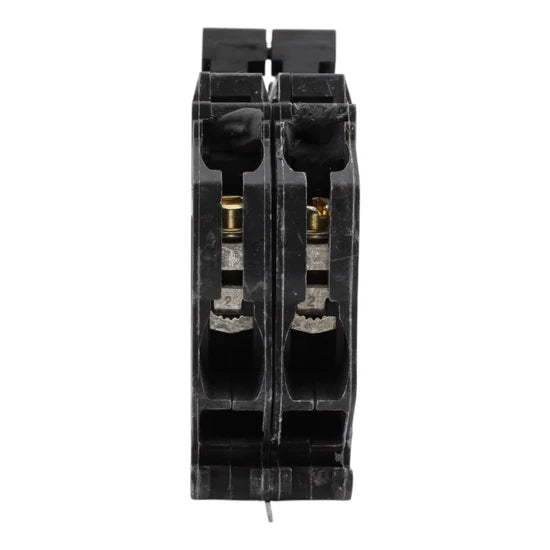

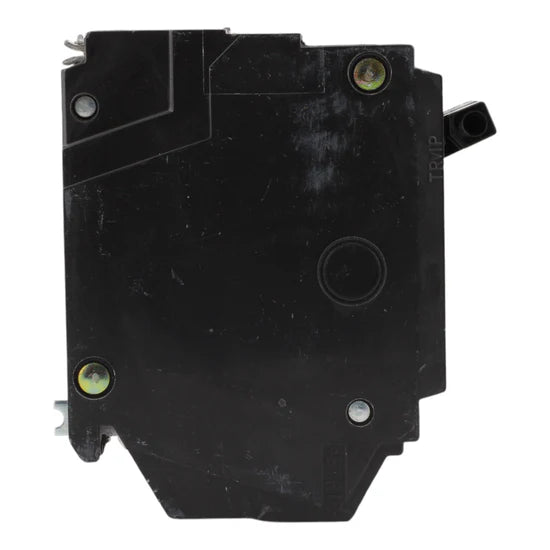

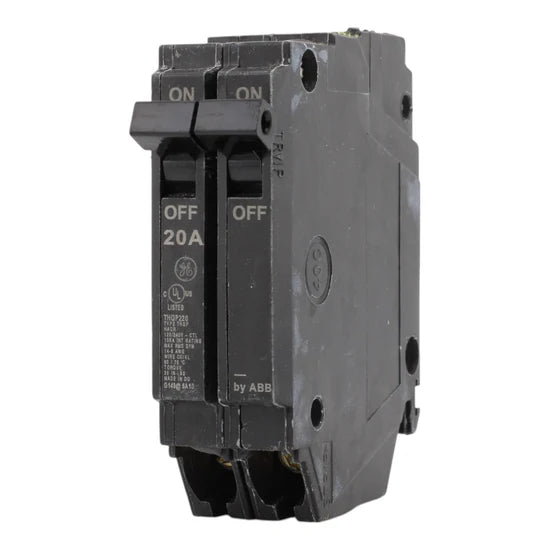

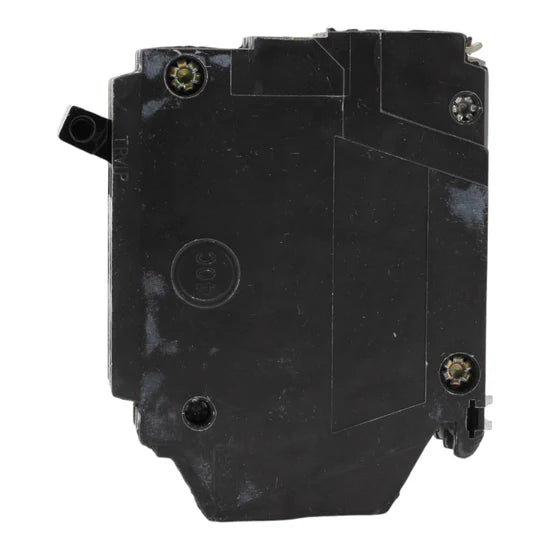

The GE THQP220 20 Amp 2-pole thin profile circuit breaker provides reliable thermal-magnetic protection for residential load centers. Its compact Q-Line plug-in design allows for efficient use of panel space, with a slim 1-inch total width. Equipped with an internal common trip bar and box-type terminals, this breaker ensures coordinated protection across both poles. Quick-make/quick-break operation delivers fast, accurate response to overloads and short circuits. Ideal for space-constrained applications, it is UL listed and HACR marked for safety and compliance.
Voltage and Rating
- Current Rating: 20 Amps
- Voltage Rating: 120/240 Volts AC
- Poles: 2-Pole
Key Specifications
- Breaker Type: Q-Line Thin Miniature Circuit Breaker (Plug-In)
- Mounting Type: Plug-In
- Special Features:
- Internal common trip bar
- Box type terminals
- Quick-make/quick-break operation
- Thin profile design (1-inch width total)
- Application: Residential load centers
Technical Specifications
- Operating Mechanism: Thermal-magnetic
- Wire Compatibility: Standard copper/aluminum per load center requirements
- Panel Spaces Required: 1 inch total (1/2-inch per pole)
- Certifications: UL listed, HACR
Product Data
-
- Manufacturer: GE (General Electric)
- Brand: Q-Line
- Model Number: THQP220
- UPC: 783164085723
- Dimensions: 1-inch width total, 1/2-inch per pole
