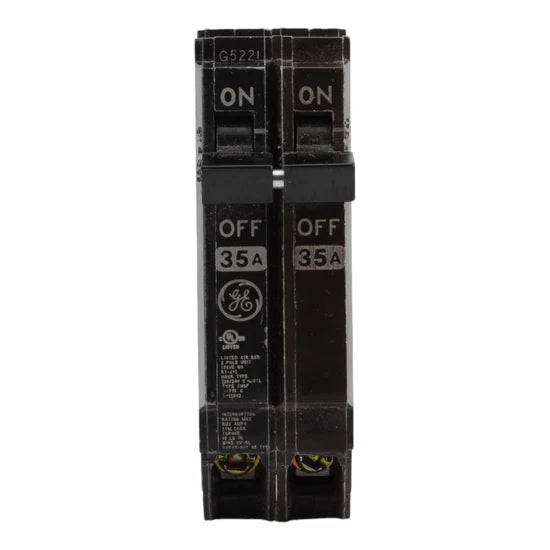

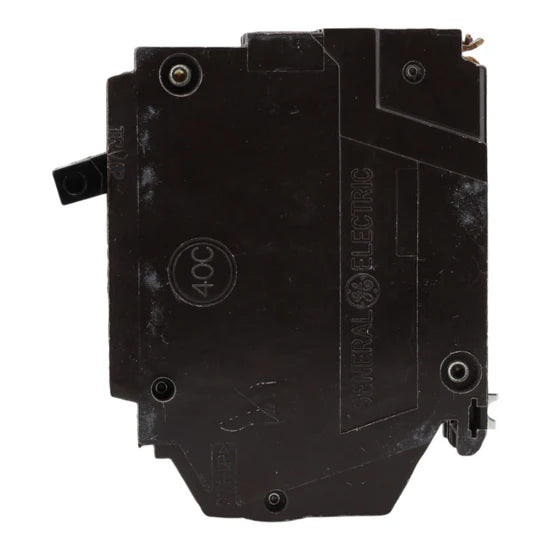

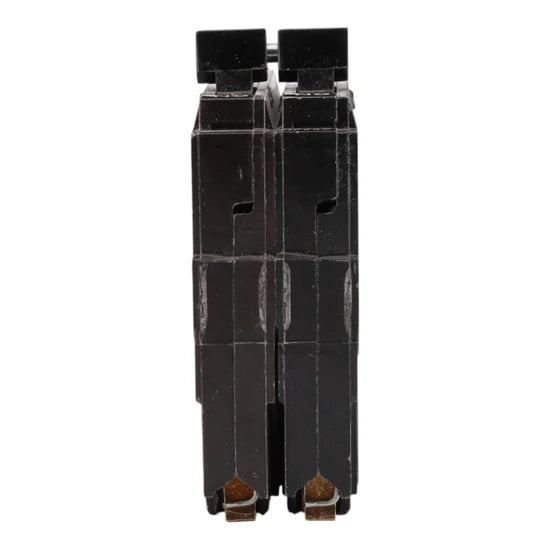

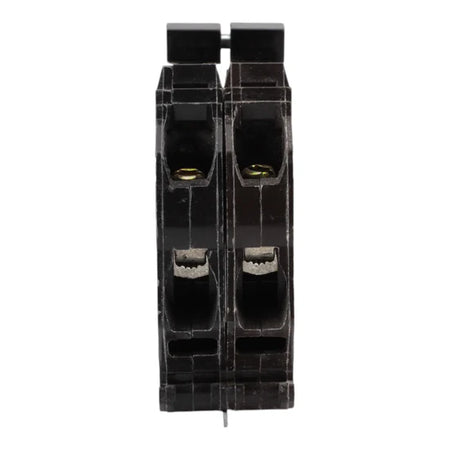

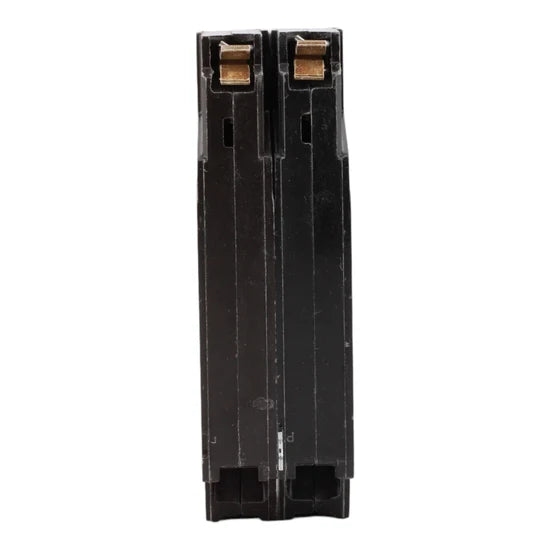

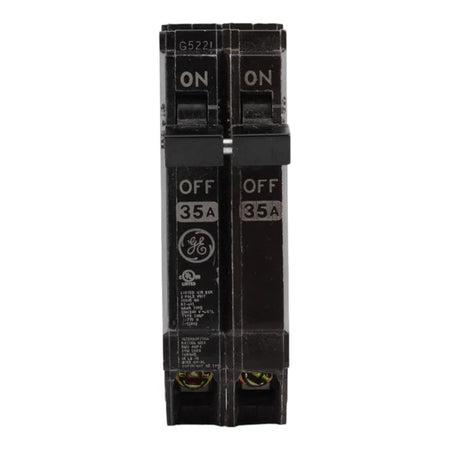

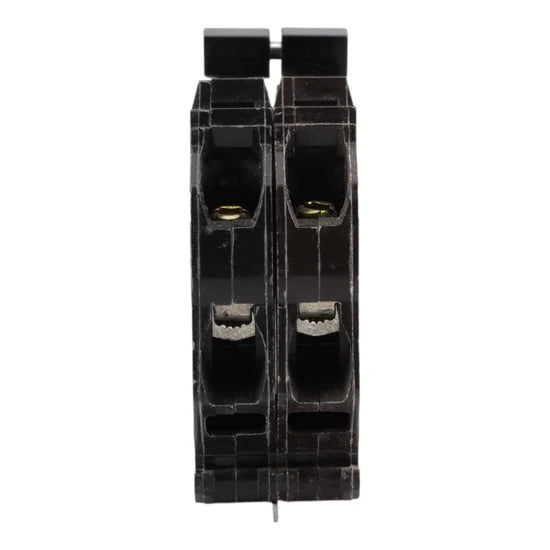

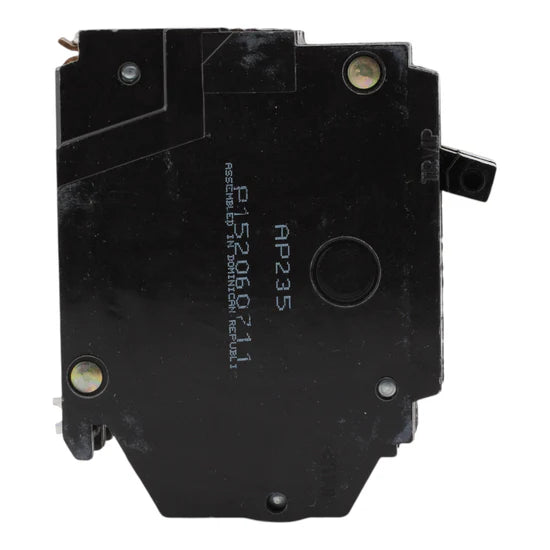

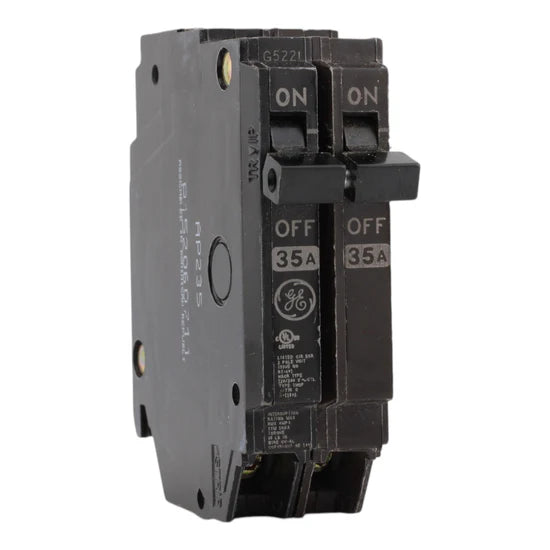

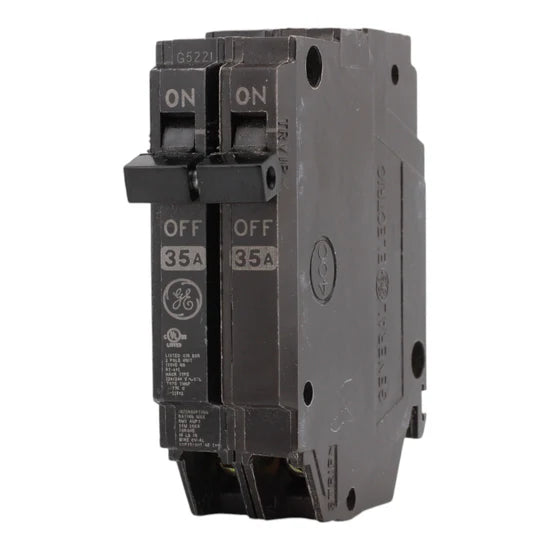

The GE THQP235 35 Amp 2-pole thin profile circuit breaker provides dependable thermal-magnetic protection for residential load centers. Its Q-Line plug-in design maximizes panel space with a slim 1-inch total width. Built with copper stabs plated with tin for corrosion resistance, a heat-resistant thermosetting case, and box-type terminals, it delivers long-lasting reliability. The breaker includes center-position trip indication and a dedicated cemented calibration screw for precise operation. Rated for 8–3 AWG copper or aluminum wiring and 65°C/75°C conductors, it exceeds UL, NEMA, ANSI, and CSA standards and comes with a lifetime warranty when used with Powermark Gold load centers.
Voltage and Rating
- Current Rating: 35 Amps
- Voltage Rating: 120/240 Volts AC
- Poles: 2-Pole
Key Specifications
- Breaker Type: Q-Line Thin Miniature Circuit Breaker (Plug-In)
- Mounting Type: Plug-In
- Wire Compatibility: 8–3 AWG Copper or Aluminum
- Special Features:
- Copper stabs with tin plating
- Heat-resistant thermosetting case
- Box type terminals
- Center-position trip indication
- Dedicated cemented calibration screw
- Thin profile design (1/2-inch per pole)
- Conductor Rating: 65°C/75°C
- Application: Residential load centers
- Certifications: Exceeds UL, NEMA, ANSI, CSA requirements
- Warranty: Lifetime when used with Powermark Gold load centers
Technical Specifications
- Operating Mechanism: Thermal-magnetic
- Panel Spaces Required: 1 inch total (1/2-inch per pole)
Product Data
-
- Manufacturer: GE (General Electric)
- Brand: Q-Line
- Model Number: THQP235
- UPC: 783164085747
- Dimensions: 1-inch total width, 1/2-inch per pole
