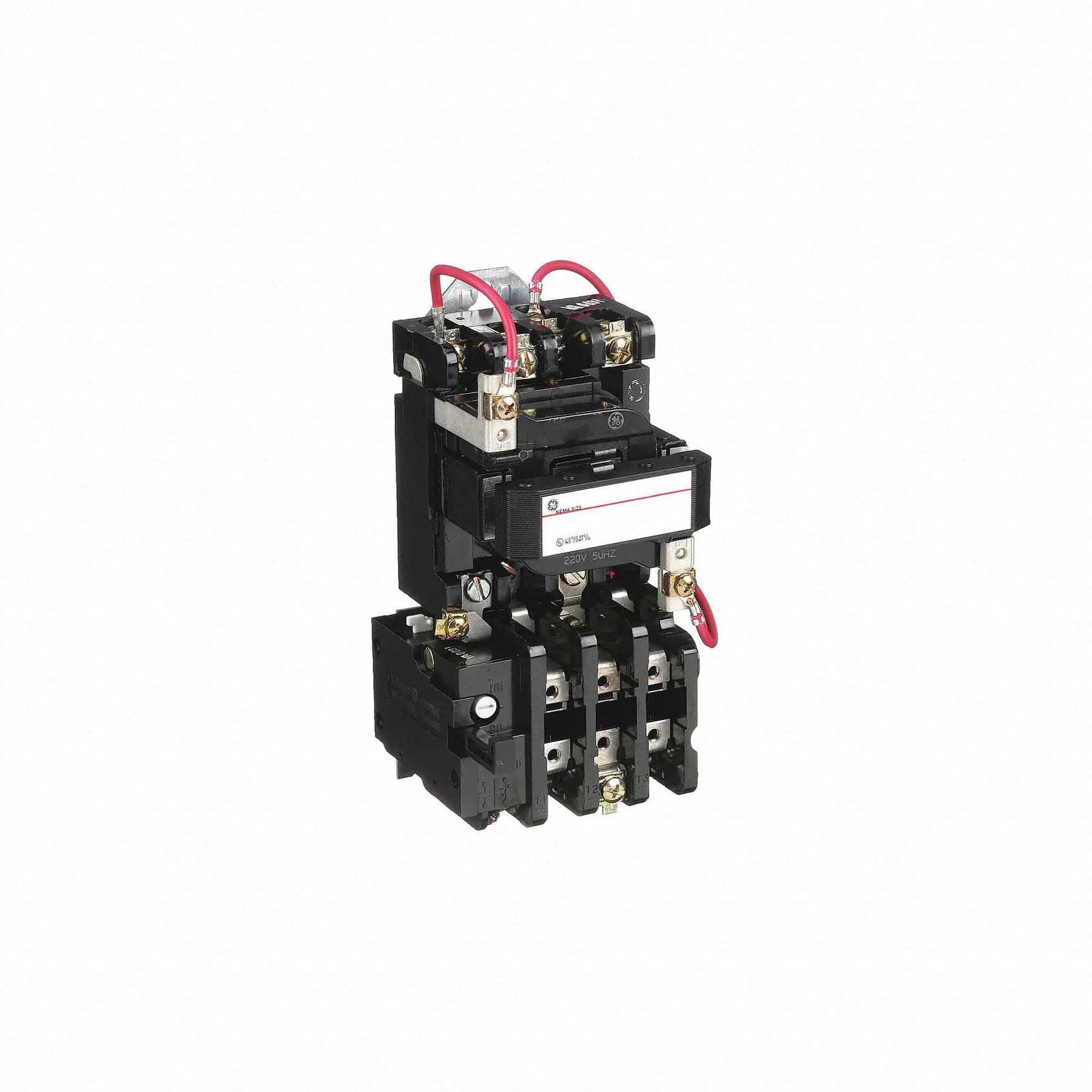

General Electric CR306C004 Magnetic Motor Starter – 3 Pole, 27A, 600VAC, Full Voltage Non-Reversing
Couldn't load pickup availability
Ask an expert
The General Electric CR306C004 is a full voltage non-reversing, non-combination magnetic motor starter designed for industrial three-phase motor control applications. Part of the GE CR306 series, this open-type starter delivers reliable switching and overload protection for motors up to 10 HP. It features pressure screw terminals and block type bimetal overload relays for dependable operation in demanding environments.
Key Specifications
- Manufacturer: General Electric
- Part Number: CR306C004
- McMc Part Number: GEDI306C004
- Product Type: Magnetic Motor Starter
- Series: CR306
- Type: Full Voltage Non-Reversing Non-Combination
- Number of Poles: 3
- Phase: 3 Phase
- Current Rating: 27 Amp
- Voltage Rating: 600VAC
- Coil Voltage:
- 440VAC at 50 Hz
- 460–480VAC at 60 Hz
- Frequency Rating: 50/60 Hz
- Motor Power Rating: 10 HP
- Connection Type: Pressure Screw Terminal
- Enclosure Type: Open
- Reset Type: Manual
- Overload Relay: (2) 3-leg block type bimetal
Physical Details
- Dimensions: 7 in H × 3.71 in W × 3.94 in D
- Operating Temperature: -20°C to 70°C
Identification
- UPC: 783166356579
Product Applications
- Industrial motor control systems
- Three-phase motor starters
- Factory automation equipment
- HVAC and pump control systems
- Machinery and process control panels
- Type Motor Starter
- Vendor GE
- Brand General Electric
