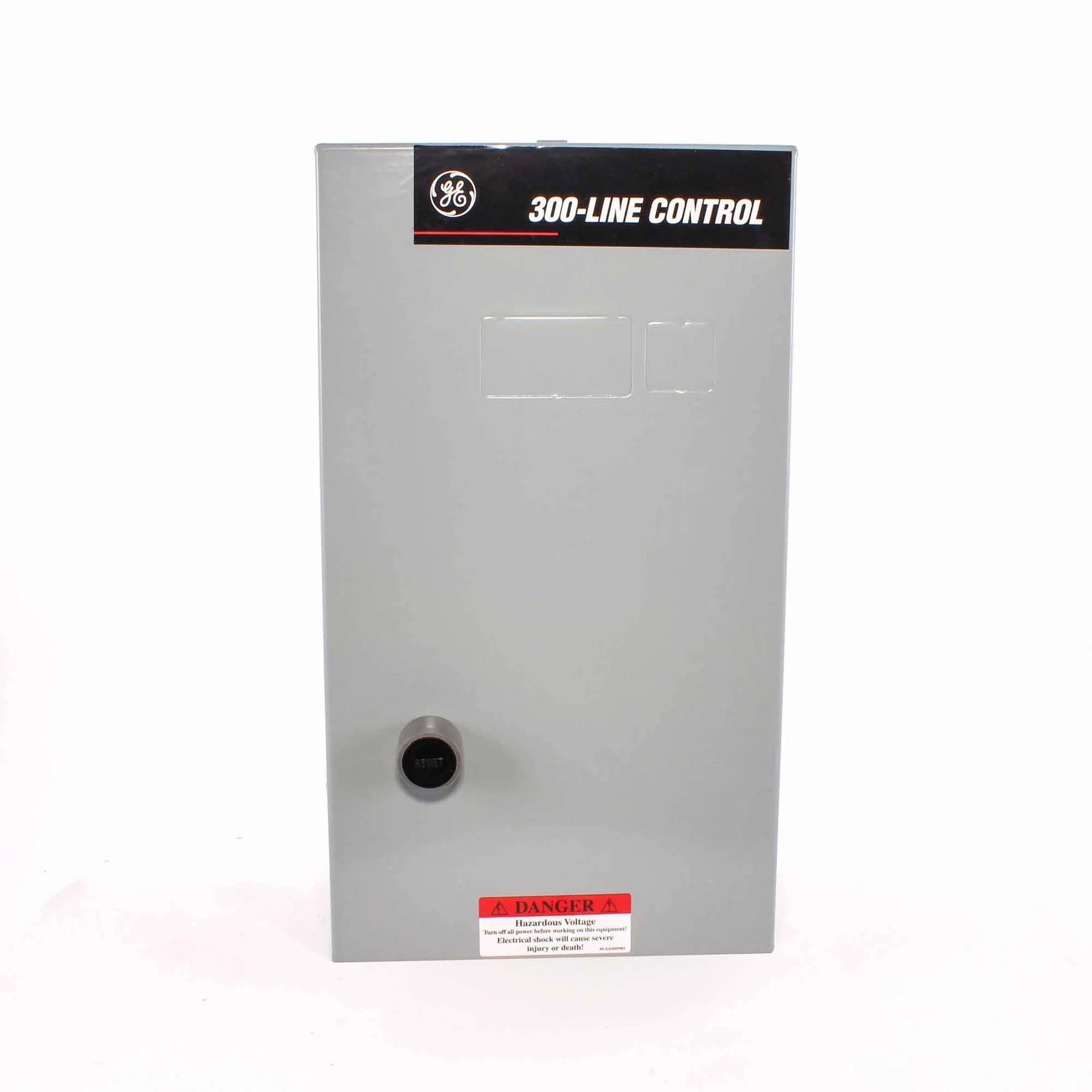

General Electric CR306D104 Motor Starter – 3 Pole, 45A, 600V, 300-Line Series, NEMA Type 1

The General Electric CR306D104 is a non-reversing, non-combination magnetic motor starter from the GE 300-Line series. Designed for industrial three-phase motor control systems, this starter provides dependable motor switching and overload protection for applications up to 25 HP. It features a NEMA Type 1 surface mount enclosure and is suitable for use in GE CR306 motor control systems.

Key Specifications

• Manufacturer: General Electric
• Part Number: CR306D104
• Product Type: Magnetic Motor Starter
• Series: 300-Line
• Type: CR306
• Poles: 3
• Phase: 3
• Current Rating: 45 Amp
• Voltage Rating: 600V
• Coil Voltage: 460–480V AC, 50/60Hz
• Horsepower Rating: 25 HP
• Configuration: Non-reversing, non-combination
• Enclosure Type: NEMA Type 1 surface mount

Physical Details

• Dimensions (H × W × D): 5.5 × 5.44 × 9.12 in
• Weight: 5 lb

Certifications

• CSA Approved

Product Applications

• Industrial motor control systems
• GE CR306 starter systems
• Three-phase motor switching
• HVAC and pump control applications
• Factory automation and machinery control panels
