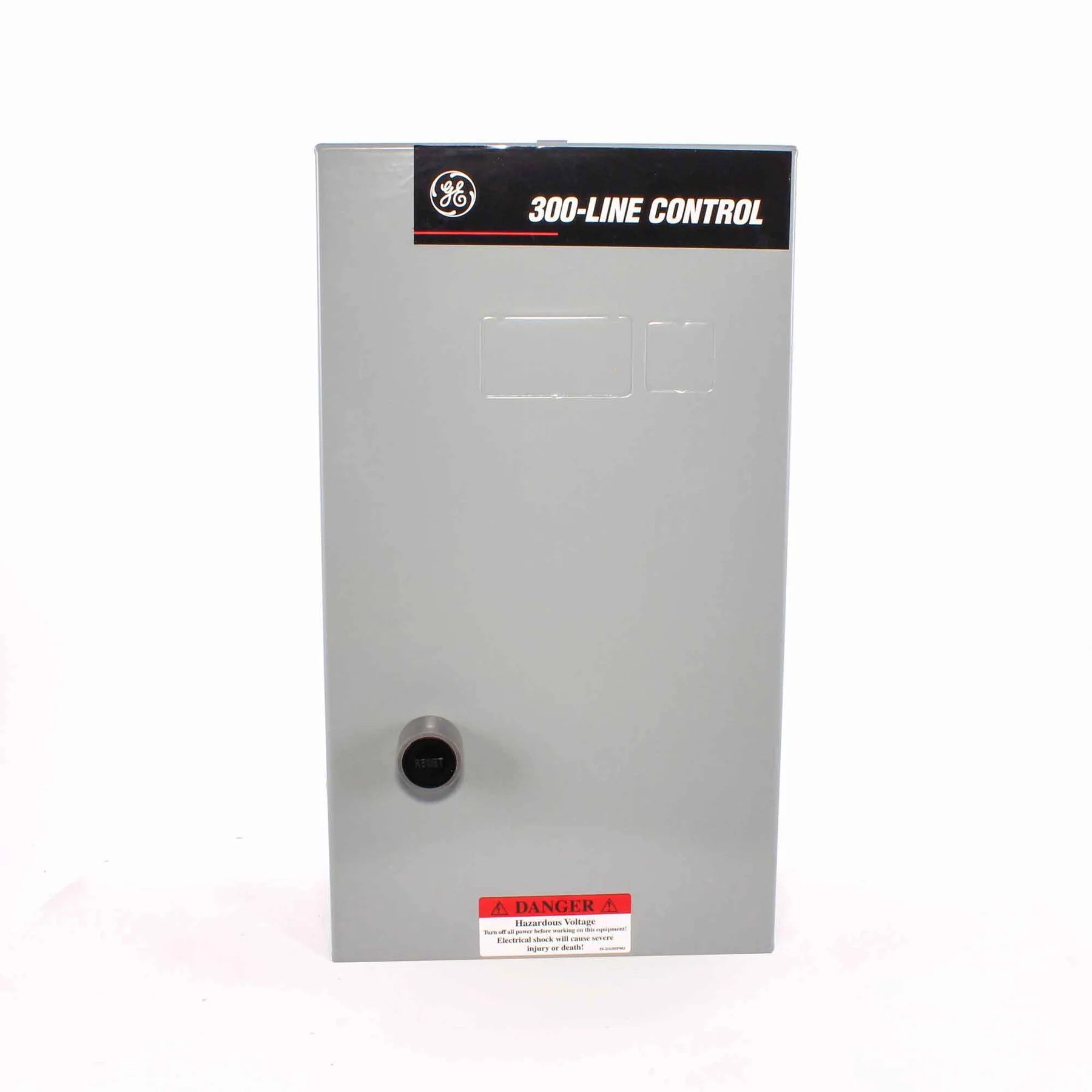

The General Electric CR306D602 is a non-reversing, non-combination magnetic motor starter from the GE 300-Line series. Designed for industrial three-phase motor control applications, this starter delivers reliable motor switching and overload protection in demanding environments. It includes a NEMA Type 3R surface mount enclosure for added protection in indoor and outdoor applications.
Key Specifications
- Manufacturer: General Electric
- Part Number: CR306D602
- Product Type: Magnetic Motor Starter
- Series: 300-Line
- Type: CR306
- Poles: 3
- Phase: 3
- Current Rating: 45 Amp
- Voltage Rating: 600V
- Coil Voltage: 115–120V AC, 50/60Hz
- Configuration: Non-reversing, non-combination
- Enclosure Type: NEMA Type 3R surface mount
Physical Details
- Dimensions (H × W × D): 19 × 11 × 8 in
- Weight: 5 lb
Certifications
- CSA Approved
Product Applications
- Industrial motor control systems
- GE CR306 motor starter systems
- Three-phase motor switching
- Indoor and outdoor electrical installations
- HVAC, pump, and machinery control applications
- Type Motor Starter
- Vendor GE
- Brand General Electric
