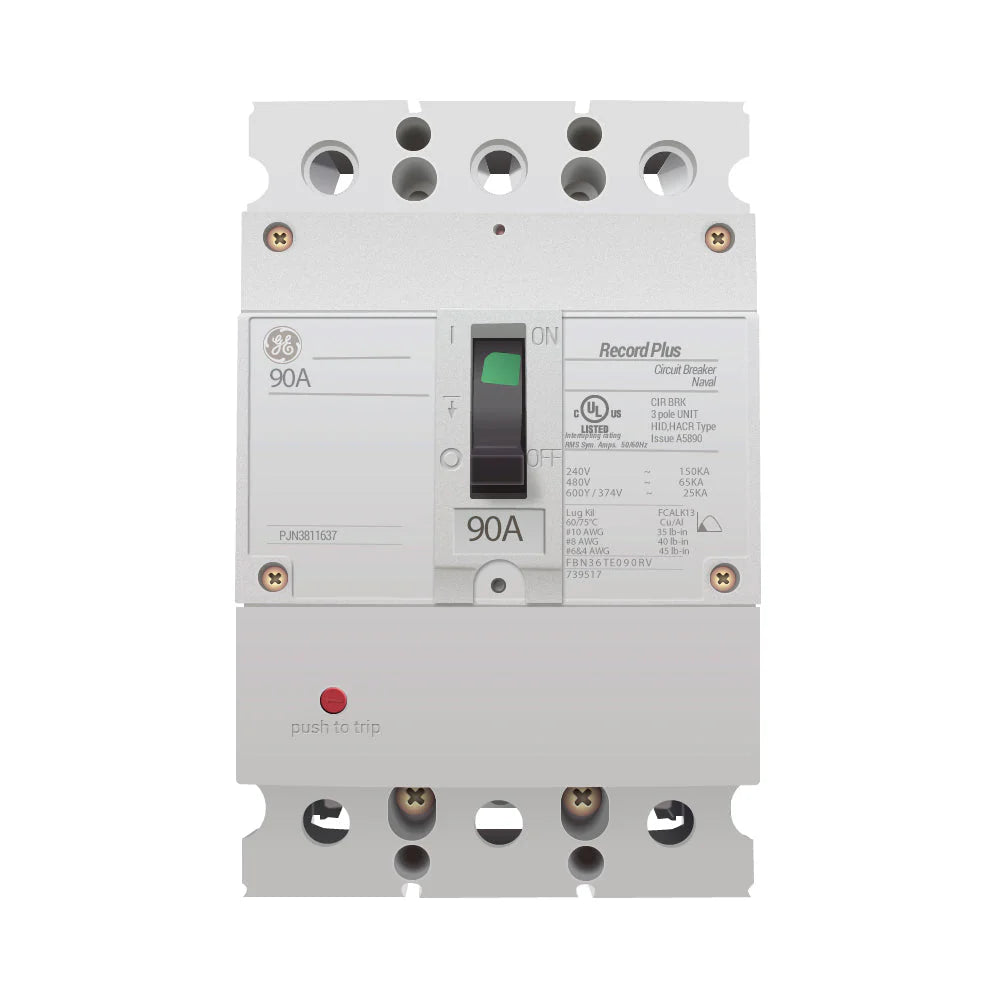

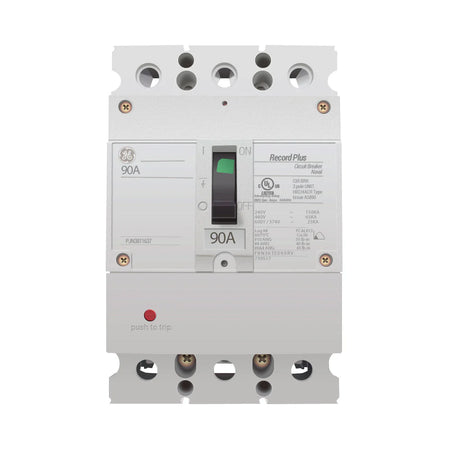

General Electric FBN36TE090RV Molded Case Circuit Breaker – 3 Pole, 90A, Record Plus Series
Couldn't load pickup availability
Ask an expert
The General Electric FBN36TE090RV is a molded case circuit breaker from the GE Record Plus series, designed for commercial and industrial power distribution systems. Built on the FBN / FB100 frame platform, this 3-pole breaker provides dependable thermal magnetic protection with long-time and instantaneous trip functions. Its bolt-on mounting design allows secure installation in panelboard applications while delivering high interrupting capacity performance.
Key Specifications
- Manufacturer: General Electric
- Part Number: FBN36TE090RV
- Product Type: Molded Case Circuit Breaker
- Series: Record Plus
- Type: FBN
- Frame Type: FB100
- Poles: 3
- Phase: 3
- Current Rating: 90A
- Voltage Rating: 600V
- Protection Type: Thermal Magnetic
- Trip Functions: LI – Long-Time and Instantaneous
- Interrupting Capacity: 65kA @ 480V
Installation & Connections
- Connection Type: Bolt-On
- Includes:
- Load side lug terminals
- Panel connections
- Trip Characteristics: Fixed thermal magnetic
Physical Details
- Dimensions (H × W × D): 4.25 × 1.25 × 6.5 in
- Weight: 7 lb
Certifications
- CSA Approved
Product Applications
- Commercial power distribution systems
- Industrial electrical panels
- Motor and equipment branch protection
- GE Record Plus panelboard systems
- High fault current applications
- Type Circuit Breakers
- Vendor GE
- Brand General Electric
