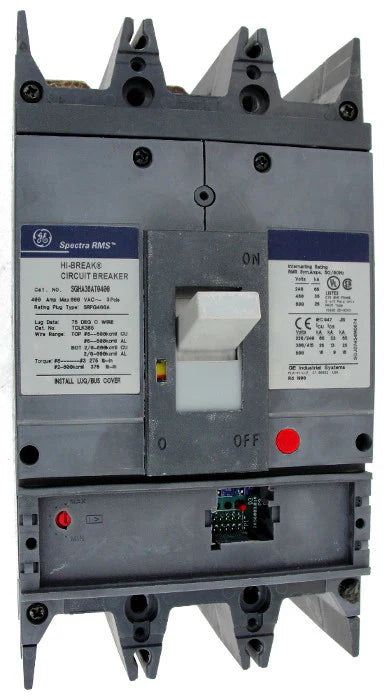

General Electric GE SGHA36AT0600 600A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

The General Electric GE SGHA36AT0600 is a high-capacity molded case circuit breaker designed for industrial and commercial power distribution systems requiring dependable circuit protection. Built on the SG600 frame platform, it features a thermal magnetic non-interchangeable trip unit for reliable response to overload and short circuit conditions. With a maximum 600 ampere rating, 3-pole configuration, and bolt-on mounting design, this breaker is suitable for switchgear, feeders, and heavy-duty electrical applications operating up to 600VAC. This unit requires a compatible rating plug for operation.

Product Specifications

• Brand: General Electric GE
• Model: SGHA36AT0600
• Amperage: 600 Ampere Maximum
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt On
• Frame Style: SG600 Frame
• Trip Unit Type: Thermal Magnetic Non-Interchangeable Trip Unit

Technical Specifications

• Operating Temperature: 40 Degree Celsius
• Frequency: 50/60Hz
• Connection Type: Bolt On
• Terminal Type: Terminals Not Included
• Lug Type: No Lugs Included
• Protection Type: Overload and Short Circuit Protection
• Rating Plug: Required for Proper Operation
• Application: Industrial Power Distribution, Switchgear, Heavy Feeders, Commercial Electrical Systems

Voltage and Ratings

• Rated Voltage: 600VAC Maximum
• Interrupting Rating @ 240V AC: 65 Kiloampere
• Interrupting Rating @ 480V AC: 35 Kiloampere
• Interrupting Rating @ 600V AC: 25 Kiloampere

Product Data

• Manufacturer: General Electric GE
• Condition: New / Reconditioned (Depending Supply)
• Warranty: One Year
• Availability: Subject to Stock
• Frame Type: G
• SKU / UPC: Available on Request

Important Note

This breaker requires a compatible rating plug in order to function and should be verified before ordering. Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker may be installed prior to shipment at no additional cost depending on supplier policy. Always confirm amperage rating, plug requirements, voltage ratings, and terminal configuration before purchase or installation.
