General Electric GE THJK636300WL 300A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC
Couldn't load pickup availability
Ask an expert
The General Electric GE THJK636300WL is a high-performance molded case circuit breaker designed for industrial and commercial power distribution systems requiring dependable overcurrent and short circuit protection. Built in the THJK Hi-Break J-frame series, this breaker features a thermal magnetic interchangeable trip unit and a robust bolt-on mounting design for secure installation. With a 300 ampere rating, 3-pole configuration, and voltage capacity up to 600VAC, it is ideal for protecting heavy-duty electrical systems and equipment.
Product Specifications
- Brand: General Electric GE
- Model: THJK636300WL
- Amperage: 300 Ampere
- Number of Poles: 3 Pole
- Breaker Type: Molded Case Circuit Breaker
- Mount Type: Bolt On
- Frame Style: THJK Hi-Break J Frame
- Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit
Technical Specifications
- Operating Temperature: 40 Degree Celsius
- Frequency: 50/60Hz
- Connection Type: Bolt On
- Terminal Type: Line and Load End Terminals Standard
- Lug Type: Standard Line and Load
- Trip Setting Range: 900-3000
- Protection Type: Overload and Short Circuit Protection
- Application: Industrial, Commercial, Distribution Panels, Motor Protection
Voltage and Ratings
- Rated Voltage: 600VAC Maximum
- Interrupting Rating @ 240V AC: 65 Kiloampere
- Interrupting Rating @ 480V AC: 35 Kiloampere
- Interrupting Rating @ 600V AC: 25 Kiloampere
- Interrupting Rating @ 250V DC: 40 Kiloampere
Product Data
- Manufacturer: General Electric GE
- Condition: New / Reconditioned (Depending Supply)
- Warranty: One Year
- Availability: Subject to Stock
- Frame Type: J
- SKU / UPC: Available on Request
Important Note

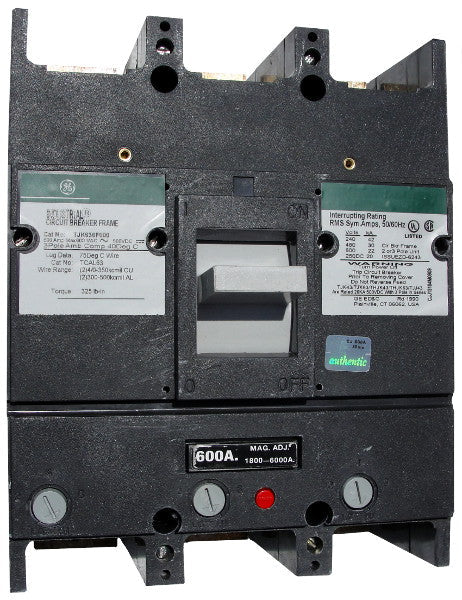

Product image may represent a base model and is shown for identification purposes only. Accessories ordered with the breaker can often be factory-installed at no additional cost depending on supplier policy. Always verify trip settings, voltage compatibility, terminal configuration, and application requirements before purchase or installation.
