General Electric GE THJK636600WL 600A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

The General Electric GE THJK636600WL is a heavy-duty molded case circuit breaker designed for high-capacity commercial and industrial electrical systems. Part of the THJK Hi-Break J-frame series, this breaker features a thermal magnetic interchangeable trip unit for dependable overload and short circuit protection. With a 600 ampere rating, 3-pole configuration, and secure bolt-on mounting, it is an excellent solution for switchboards, panelboards, feeders, and major power distribution applications operating up to 600VAC.

Product Specifications

• Brand: General Electric GE
• Model: THJK636600WL
• Amperage: 600 Ampere
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt On
• Frame Style: THJK Hi-Break J Frame
• Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit

Technical Specifications

• Operating Temperature: 40 Degree Celsius
• Frequency: 50/60Hz
• Connection Type: Bolt On
• Terminal Type: Line and Load End Terminals Standard
• Lug Type: Standard Line and Load
• Trip Setting Range: 1800-6000
• Protection Type: Overload and Short Circuit Protection
• Application: Switchboards, Industrial Distribution Systems, Commercial Panels, Feeders

Voltage and Ratings

• Rated Voltage: 600VAC Maximum
• Interrupting Rating @ 240V AC: 65 Kiloampere
• Interrupting Rating @ 480V AC: 35 Kiloampere
• Interrupting Rating @ 600V AC: 25 Kiloampere
• Interrupting Rating @ 250V DC: 40 Kiloampere

Product Data

• Manufacturer: General Electric GE
• Condition: New / Reconditioned (Depending Supply)
• Warranty: One Year
• Availability: Subject to Stock
• Frame Type: J
• SKU / UPC: Available on Request

Important Note

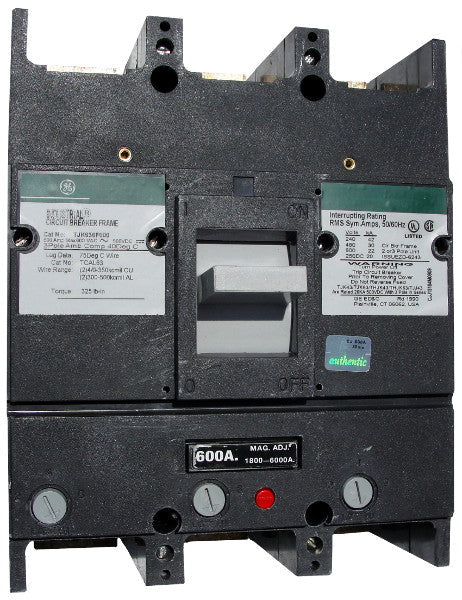

Product image may represent a base model and is shown for identification purposes only. Accessories purchased with the breaker may be installed before shipment at no additional cost depending on supplier policy. Always verify amperage, trip setting range, voltage ratings, terminal requirements, and system compatibility before purchase or installation.
