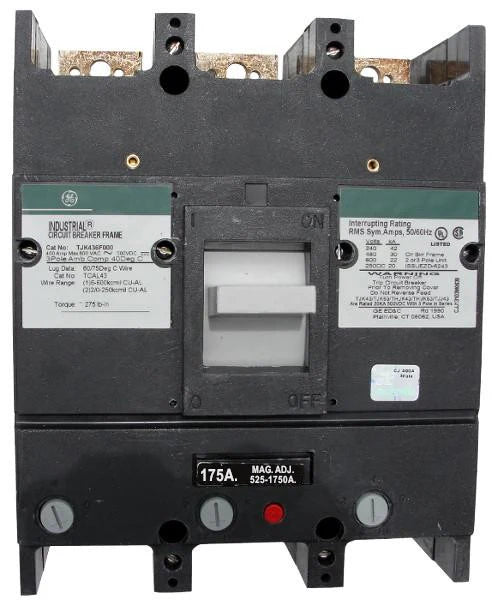

General Electric GE TJK436175WL 175A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC
Couldn't load pickup availability
Ask an expert
The General Electric GE TJK436175WL is a dependable molded case circuit breaker built for commercial and industrial electrical distribution systems requiring reliable overcurrent protection. Part of the TJK J-frame series, this breaker is equipped with a thermal magnetic interchangeable trip unit that provides accurate overload and short circuit protection. With a 175 ampere rating, 3-pole configuration, and bolt-on mounting style, it is well suited for panelboards, feeders, machinery protection, and general power distribution applications operating up to 600VAC.
Product Specifications
- Brand: General Electric GE
- Model: TJK436175WL
- Amperage: 175 Ampere
- Number of Poles: 3 Pole
- Breaker Type: Molded Case Circuit Breaker
- Mount Type: Bolt On
- Frame Style: TJK J Frame
- Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit
Technical Specifications
- Operating Temperature: 40 Degree Celsius
- Frequency: 50/60Hz
- Connection Type: Bolt On
- Terminal Type: Line and Load End Terminals Standard
- Lug Type: Standard Line and Load
- Trip Setting Range: 525-1750
- Protection Type: Overload and Short Circuit Protection
- Application: Commercial Panels, Industrial Equipment, Feeders, Distribution Systems
Voltage and Ratings
- Rated Voltage: 600VAC Maximum
- Interrupting Rating @ 240V AC: 42 Kiloampere
- Interrupting Rating @ 480V AC: 30 Kiloampere
- Interrupting Rating @ 600V AC: 22 Kiloampere
- Interrupting Rating @ 250V DC: 20 Kiloampere
Product Data
- Manufacturer: General Electric GE
- Condition: New / Reconditioned (Depending Supply)
- Warranty: One Year
- Availability: Subject to Stock
- Frame Type: J
- SKU / UPC: Available on Request
Important Note
Product image may represent a base model and is provided for identification purposes only. Accessories purchased with the breaker may be installed before shipment at no additional cost depending on supplier policy. Always verify amperage, trip setting range, voltage ratings, terminal configuration, and system compatibility before purchase or installation.
