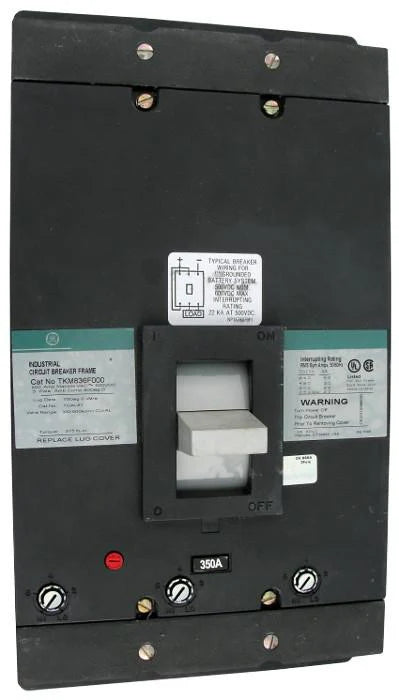

General Electric GE TKMA836350WL 350A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

In stock
SKU: TKMA836350WL-NS
$4,999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The General Electric GE TKMA836350WL is a reliable molded case circuit breaker engineered for industrial and commercial electrical distribution systems. Built on the TKM frame platform, it features a thermal magnetic interchangeable trip unit that provides dependable protection against overloads and short circuit faults. With a 350 ampere rating, 3-pole configuration, and bolt-on mounting design, this breaker is ideal for switchgear, feeders, panelboards, and general power distribution applications operating up to 600VAC.

Product Specifications

  • Brand: General Electric GE
  • Model: TKMA836350WL
  • Amperage: 350 Ampere
  • Number of Poles: 3 Pole
  • Breaker Type: Molded Case Circuit Breaker
  • Mount Type: Bolt On
  • Frame Style: TKM Frame
  • Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit

Technical Specifications

  • Operating Temperature: 40 Degree Celsius
  • Frequency: 50/60Hz
  • Connection Type: Bolt On
  • Terminal Type: Line and Load End Terminals Standard
  • Lug Type: Standard Line and Load
  • Trip Setting Range: 1050-3500
  • Protection Type: Overload and Short Circuit Protection
  • Application: Industrial Power Distribution, Switchgear, Feeders, Commercial Electrical Systems

Voltage and Ratings

  • Rated Voltage: 600VAC Maximum
  • Interrupting Rating @ 240V AC: 42 Kiloampere
  • Interrupting Rating @ 480V AC: 30 Kiloampere
  • Interrupting Rating @ 600V AC: 22 Kiloampere
  • Interrupting Rating @ 250V DC: 20 Kiloampere

Product Data

  • Manufacturer: General Electric GE
  • Condition: New / Reconditioned (Depending Supply)
  • Warranty: One Year
  • Availability: Subject to Stock
  • Frame Type: K
  • SKU / UPC: Available on Request

Important Note

Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker may be installed prior to shipment at no additional cost depending on supplier policy. Always verify amperage, trip setting range, voltage ratings, terminal configuration, and application suitability before purchase or installation.
