General Electric GE TKMA836800WL 800A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC
Couldn't load pickup availability
Ask an expert
The General Electric GE TKMA836800WL is a high-capacity molded case circuit breaker engineered for demanding industrial and commercial power distribution systems. Built on the TKM frame platform, it utilizes a thermal magnetic interchangeable trip unit to provide reliable protection against overload and short circuit faults. With an 800 ampere rating, 3-pole configuration, and bolt-on mounting design, this breaker is suitable for switchgear assemblies, large feeders, and critical electrical distribution networks operating up to 600VAC.
Product Specifications
- Brand: General Electric GE
- Model: TKMA836800WL
- Amperage: 800 Ampere
- Number of Poles: 3 Pole
- Breaker Type: Molded Case Circuit Breaker
- Mount Type: Bolt On
- Frame Style: TKM Frame
- Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit
Technical Specifications
- Operating Temperature: 40 Degree Celsius
- Frequency: 50/60Hz
- Connection Type: Bolt On
- Terminal Type: Line and Load End Terminals Standard
- Lug Type: Standard Line and Load
- Trip Setting Range: 2400-6400
- Protection Type: Overload and Short Circuit Protection
- Application: Industrial Power Distribution, Switchgear, Heavy Feeders, Commercial Electrical Systems
Voltage and Ratings
- Rated Voltage: 600VAC Maximum
- Interrupting Rating @ 240V AC: 42 Kiloampere
- Interrupting Rating @ 480V AC: 30 Kiloampere
- Interrupting Rating @ 600V AC: 22 Kiloampere
- Interrupting Rating @ 250V DC: 20 Kiloampere
Product Data
- Manufacturer: General Electric GE
- Condition: New / Reconditioned (Depending Supply)
- Warranty: One Year
- Availability: Subject to Stock
- Frame Type: K
- SKU / UPC: Available on Request
Important Note

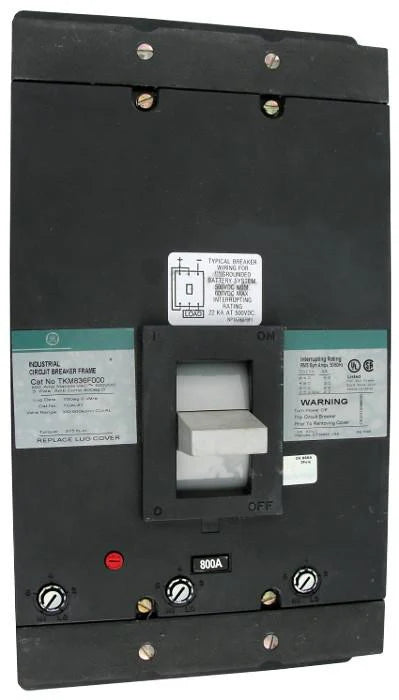

Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker may be installed prior to shipment at no additional cost depending on supplier policy. Always verify amperage, trip setting range, voltage ratings, terminal configuration, and application suitability before purchase or installation.
