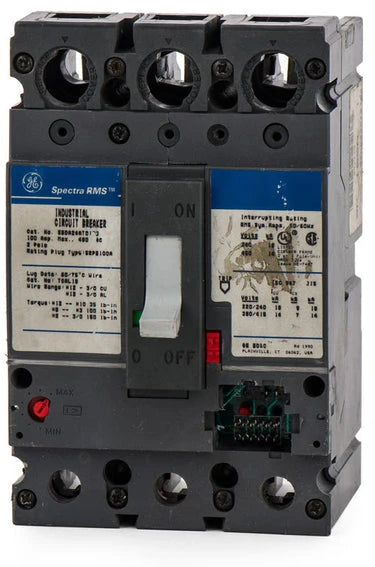

General Electric SEDA24AT0100-R Molded Case Circuit Breaker – 100A, Spectra RMS SE Frame

The General Electric SEDA24AT0100-R is a Spectra RMS molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical distribution systems. Built on the SE frame platform, this unit-mount breaker is intended for use in GE Spectra series panelboards, switchboards, and motor control centers. It features an electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection and true RMS sensing for accurate load monitoring and coordination.

Key Specifications

• Manufacturer: ABB / General Electric
• Part Number: SEDA24AT0100-R
• Series: Spectra RMS (SEDA frame)
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 100A
• Voltage Rating: 120 / 240 / 277 / 480 VAC
• Phase: 1 Phase
• Poles: 2

Interrupting Capacity (AIC Ratings)

• 18kA @ 120VAC
• 18kA @ 240VAC
• 18kA @ 277VAC
• 18kA @ 480VAC
• 18kA @ 120/240VAC

Protection & Trip Features

• Trip Technology: Electronic Trip Unit
• Trip Function Code: LSI
  • Long-Time
  • Short-Time
  • Instantaneous
• Trip Adjustability: Fixed Thermal, Adjustable Magnetic
• True RMS Sensing
• Current Limiting
• Reverse Feed Compatible

Installation & Construction

• Mounting Style: Unit Mount
• Terminal Type: Lugs
• Wire Range: 12 AWG – 3/0 AWG (Cu/Al)
• Max Wire Size: 3/0 AWG
• Min Wire Size: 12 AWG

Applications

• GE Spectra panelboards and switchboards
• Motor control centers (MCCs)
• Industrial power distribution systems
• Commercial electrical protection systems
• Retrofit applications (XT4NU2100TFF000XXX equivalent with kit)
