GE

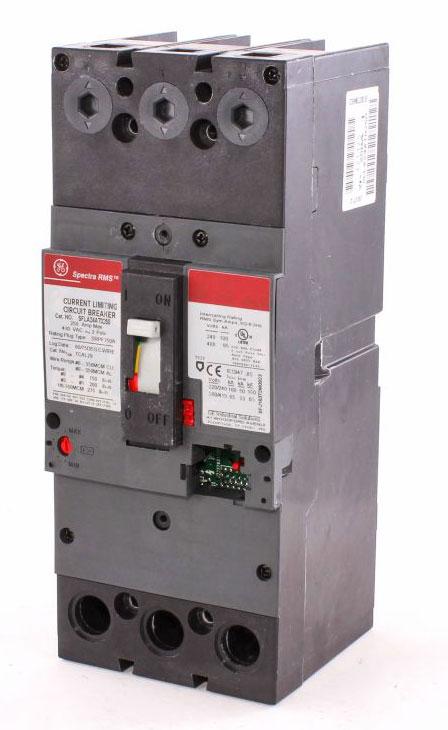

General Electric SFPA24AT0250 Molded Case Circuit Breaker – 250A, Spectra Series

In stock
SKU: SFPA24AT0250 GTIN/UPC: SFPA24AT0250
$988.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The General Electric SFPA24AT0250 is a high-performance Spectra Series molded case circuit breaker designed for demanding industrial power distribution systems. This 2-pole breaker is built on an SF frame platform and provides advanced electronic protection with LSI (Long-Time, Short-Time, Instantaneous) trip functionality. It delivers high interrupting capacity performance and is suitable for use in GE Spectra panelboards, switchboards, and motor control centers. The unit features true RMS sensing for accurate protection of modern electrical loads.

Key Specifications

  • Manufacturer: ABB / General Electric
  • Part Number: SFPA24AT0250
  • Series: SFPA (Spectra Series)
  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Current Rating: 250A
  • Voltage Rating: 240 / 480 / 600 VAC
  • Phase: 1 Phase
  • Poles: 2

Interrupting Capacity (AIC Ratings)

  • 200kA @ 240VAC
  • 100kA @ 480VAC
  • 25kA @ 600VAC

Protection & Trip Features

  • Trip Technology: Electronic Trip Unit
  • Trip Function Code: LSI
    • Long-Time
    • Short-Time
    • Instantaneous
  • Adjustable Trip Settings
  • True RMS Sensing
  • Current Limiting
  • Reverse Feed Compatible
  • Interchangeable Trip Unit
  • 2-pole configuration in 3-pole housing

Installation & Construction

  • Mounting Style: Bolt-On
  • Terminal Type: Lugs (not included)
  • Lugs: Not included

Applications

  • GE Spectra Series panelboards and switchboards
  • Motor control centers (MCCs)
  • Industrial high-fault-current protection systems
  • Heavy-duty commercial electrical distribution
  • System upgrades and retrofit applications (XT4LU3250BFF000XXX equivalent via retrofit kit)
  • Type Circuit Breakers
  • Vendor GE
  • Brand General Electric
