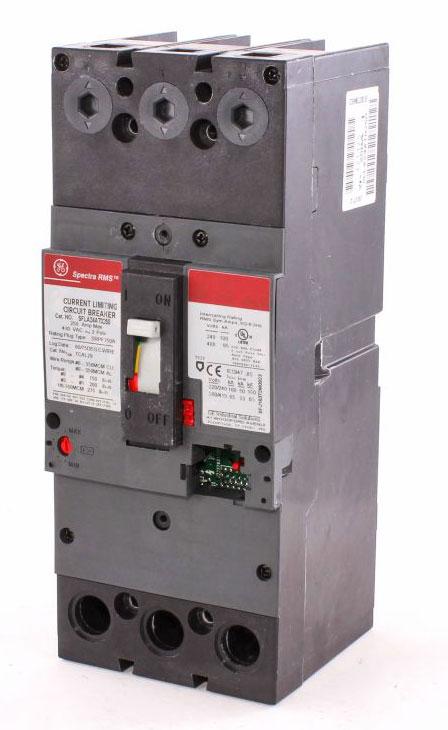

The General Electric SFPA36AT2250C is a Spectra Series molded case circuit breaker designed for high-capacity industrial and commercial power distribution systems. Built on the SFPA frame platform, this 3-pole breaker provides reliable overcurrent protection using a solid-state electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) functions. It is suitable for use in GE Spectra Series switchboards and panelboards where high interrupting capacity and precise coordination are required.
Key Specifications
- Manufacturer: General Electric
- Part Number: SFPA36AT2250C
- Series: Spectra Series
- Product Type: Molded Case Circuit Breaker (MCCB)
- Frame Type: SFPA
- Current Rating: 250A
- Voltage Rating: 600V
- Phase: 3 Phase
- Poles: 3
- UPC: 783164345414
- Weight: 11 lbs
Protection & Trip Features
- Protection Type: Solid State
- Trip Function: LSI
- Long-Time
- Short-Time
- Instantaneous
Interrupting Capacity
- 100kA @ 480V
Installation & Connection
- Mounting Type: Bolt-On
- Connection Type: Bolt-On
Applications
- GE Spectra Series panelboards
- Industrial power distribution systems
- Commercial electrical switchboards
- Motor control centers (MCCs)
- High fault-current electrical environments
