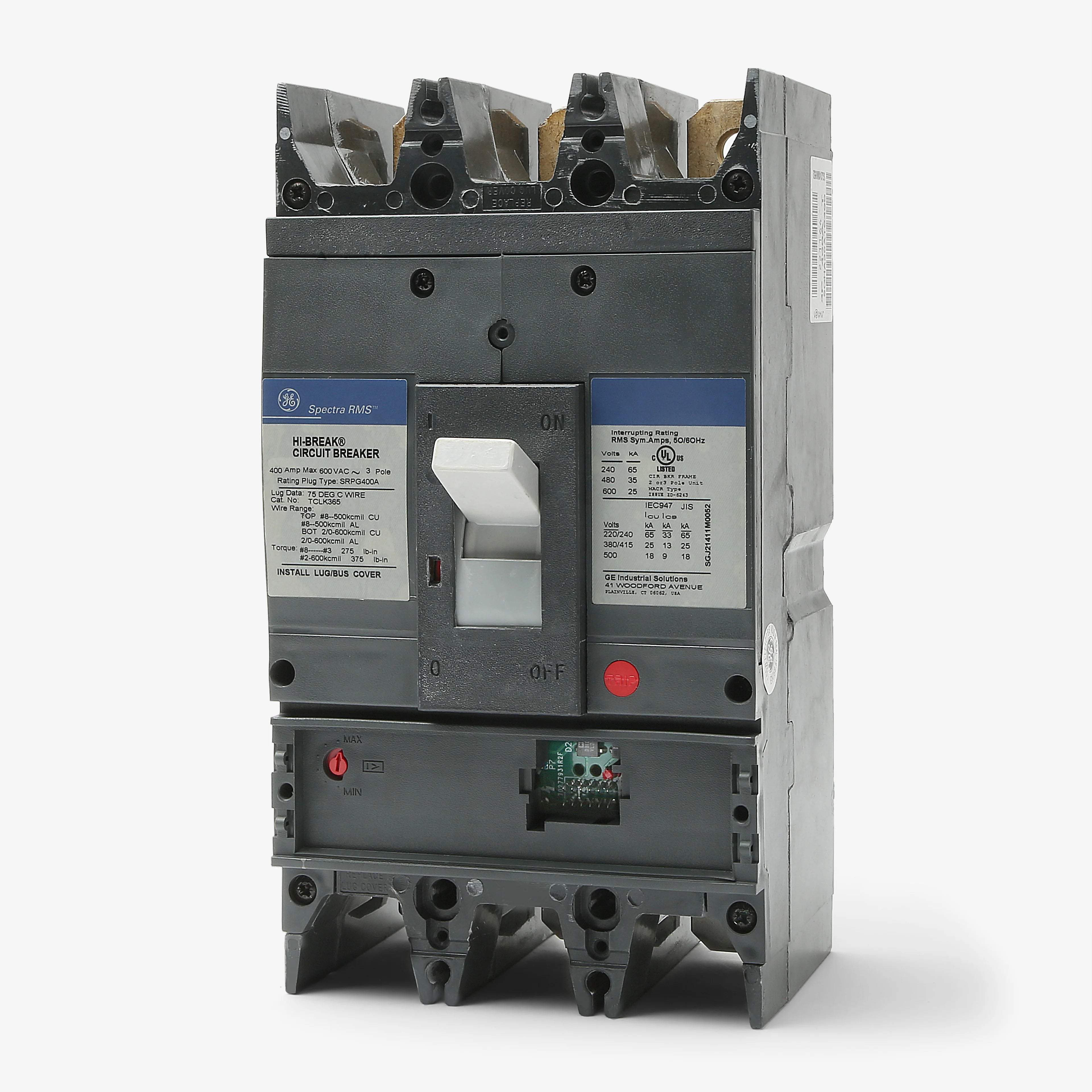

The General Electric SGHA36AT4400C is a heavy-duty Spectra Series molded case circuit breaker designed for industrial and commercial power distribution systems requiring high-capacity protection. Built on the SGHA frame platform, this 3-pole breaker delivers reliable solid-state electronic protection with LSI (Long-Time, Short-Time, Instantaneous) trip functionality. It is suitable for bolt-on installation in GE Spectra Series switchboards and panelboards where dependable high fault interruption performance is required.
Key Specifications
- Manufacturer: General Electric
- Part Number: SGHA36AT4400C
- Series: Spectra Series
- Product Type: Molded Case Circuit Breaker (MCCB)
- Frame Type: SGHA
- Current Rating: 400A
- Voltage Rating: 600V
- Phase: 3 Phase
- Poles: 3
- Weight: 20 lbs
Protection & Trip Features
- Protection Type: Solid State
- Trip Functions: LSI
- Long-Time
- Short-Time
- Instantaneous
Interrupting Capacity
- 35kA @ 480V
Installation & Connection
- Mounting Type: Bolt-On
- Connection Type: Bolt-On
Applications
- GE Spectra Series panelboards and switchboards
- Industrial power distribution systems
- Commercial electrical infrastructure
- Motor control centers (MCCs)
- Heavy-duty load protection in high-demand environments
- Type Circuit Breakers
- Vendor GE
- Brand General Electric
