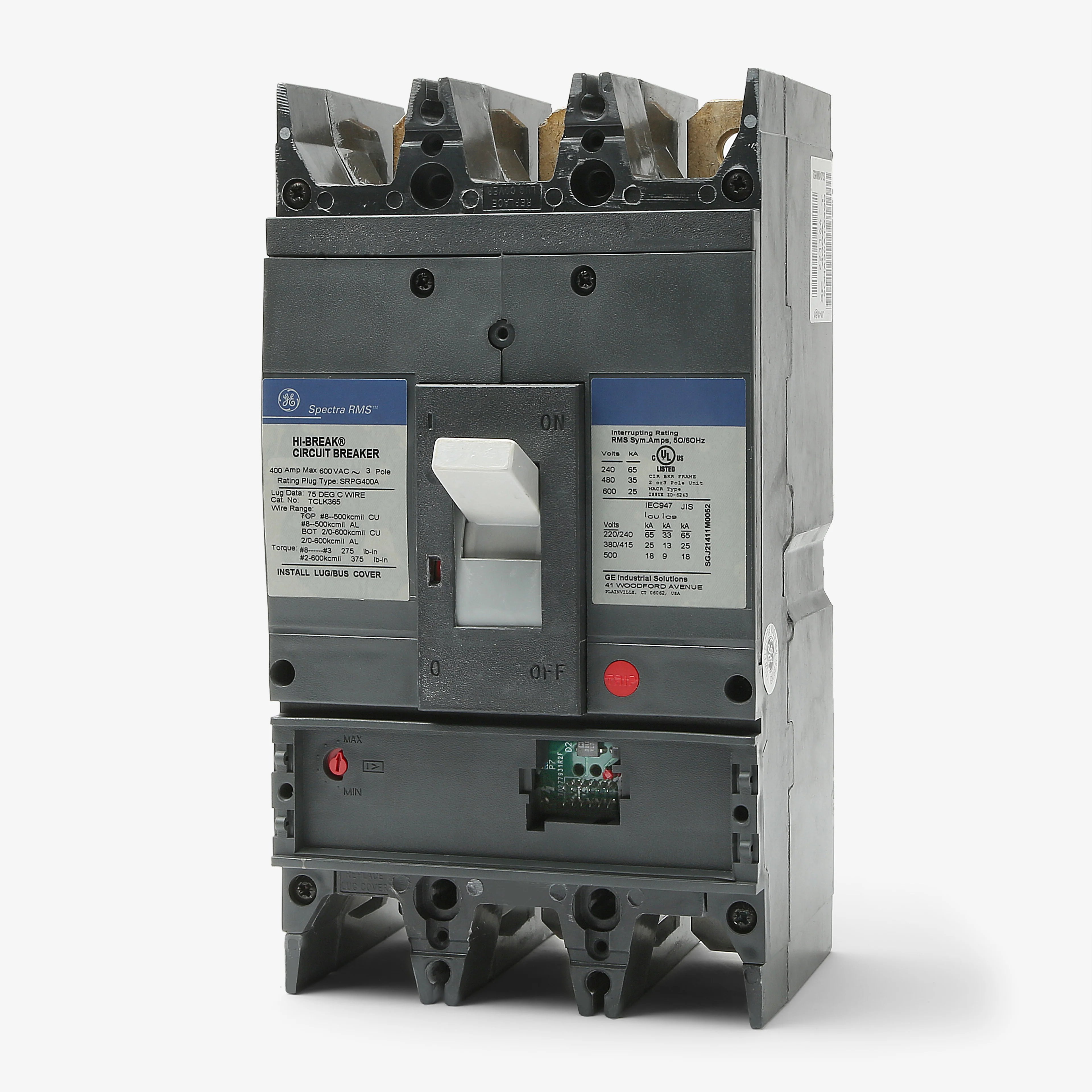

The General Electric SGHC3604L3XX is a Spectra Series molded case circuit breaker designed for reliable high-capacity power distribution in industrial and commercial electrical systems. Built on the SGHC frame platform, this 3-pole breaker features a microEntelliGuard solid-state trip unit providing advanced LSI (Long-Time, Short-Time, Instantaneous) protection. It supports reverse-fed applications and includes basic metering communication capability for enhanced system monitoring and coordination.
Key Specifications
- Manufacturer: General Electric
- Part Number: SGHC3604L3XX
- Series: Spectra Series
- Product Type: Molded Case Circuit Breaker (MCCB)
- Frame Type: SGHC
- Current Rating: 400A
- Voltage Rating: 600V
- Phase: 3 Phase
- Poles: 3
- Weight: 8 lb
Protection & Trip Features
- Protection Type: Solid State
- Trip Unit: microEntelliGuard
- Trip Functions: LSI
- Long-Time
- Short-Time
- Instantaneous
- Metering/Communication: Basic metering features included
- Reverse Feed Compatible: Yes
Interrupting Capacity
- 35kA @ 480V
Installation & Connection
- Mounting Type: Bolt-On
- Connection Type: Bolt-On
Applications
- GE Spectra Series panelboards and switchboards
- Industrial electrical distribution systems
- Commercial power infrastructure
- Motor control centers (MCCs)
- Systems requiring monitored and coordinated protection
- Type Circuit Breakers
- Vendor GE
- Brand General Electric
