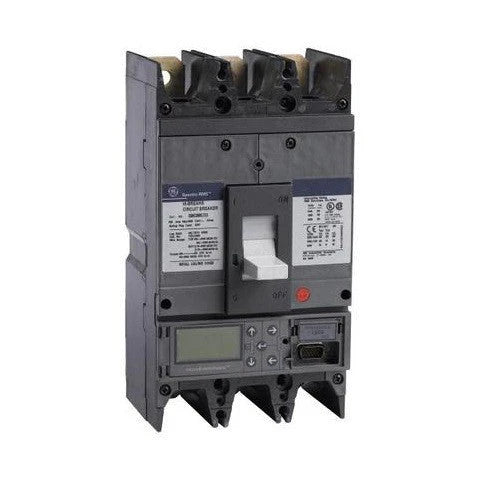

The General Electric SKHC3612L3XX is a high-capacity Spectra Series molded case circuit breaker designed for industrial and commercial power distribution systems requiring dependable overcurrent protection. Built on the SK frame platform, this 3-pole, 1200A breaker features a microEntelliGuard solid-state electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection and basic metering communication capabilities. Engineered for demanding three-phase applications, it offers standard interrupting capacity and is suitable for reverse-fed installations in GE Spectra Series panelboards and switchboards.
Key Specification
- Manufacturer: General Electric
- Part Number: SKHC3612L3XX
- Family: Spectra Series
- Product Type: Molded Case Circuit Breaker (MCCB)
- Frame Type: SK
- Current Rating: 1200A
- Voltage Rating: 600V
- Phase: 3 Phase
- Poles: 3
- Connection Type: Bolt-On
- Dimensions (H x W x D): 10 x 12 x 18 in
- Weight: 8 lbs
Protection & Trip Features
- Protection Type: Solid State Electronic Trip
- Trip Unit Model: microEntelliGuard
- Trip Function: LSI
- Long-Time
- Short-Time
- Instantaneous
- Basic Metering Communication Features
Interrupting Capacity
- 35kA @ 480V
Construction Features
- Standard Interrupting Capacity
- Reverse Feed Suitable
- Electronic Molded Case Design
- Solid-State Protection Technology
Standards & Certifications
- UL Listed
- CSA Approved
Applications
- GE Spectra Series panelboards
- Industrial switchboards
- Commercial power distribution systems
- Heavy-duty three-phase electrical infrastructure
- Feeder and main distribution protection applications
- Type Circuit Breakers
- Vendor GE
- Brand General Electric
