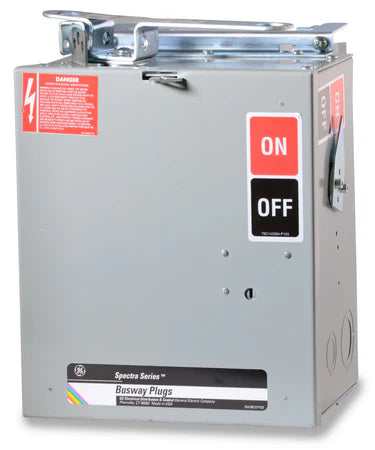

The General Electric SL463RG is an SL Series fusible bus plug designed for reliable power distribution in Spectra low amp busway systems. Rated at 100 Amps with 3 poles, this unit supports both aluminum and copper busway installations, providing flexible and safe power tapping in industrial and commercial environments. With a high interrupting rating of 200kA at 480V, the SL463RG delivers dependable fault protection and stable performance in demanding electrical applications.
Voltage and Rating
- Current Rating: 100 Amps
- Voltage Rating: 480/600VAC
- Interrupting Rating: 200kA @ 480V
Key Specifications
- Brand: General Electric
- Series: SL
- Product Type: Fusible Bus Plug
- Frame Type: SL
- Number of Poles: 3-Pole
- Phase: 3-Phase
- Number of Wires: 4
Technical Specifications
- Body Material: Aluminum
- Fusibility: Fusible
- Compatible with Spectra Low Amp Aluminum & Copper Busway Systems
- Heavy-Duty Industrial Design
- High Interrupting Capacity Performance
Product Data
- Manufacturer: General Electric
- Part Number: SL463RG
- UPC: 783175980550
Applications
- Spectra busway systems
- Industrial power distribution
- Commercial electrical systems
- Aluminum and copper busway tap-off units
- Three-phase feeder distribution applications
- Type Bus Plug
- Vendor GE
- Brand General Electric
