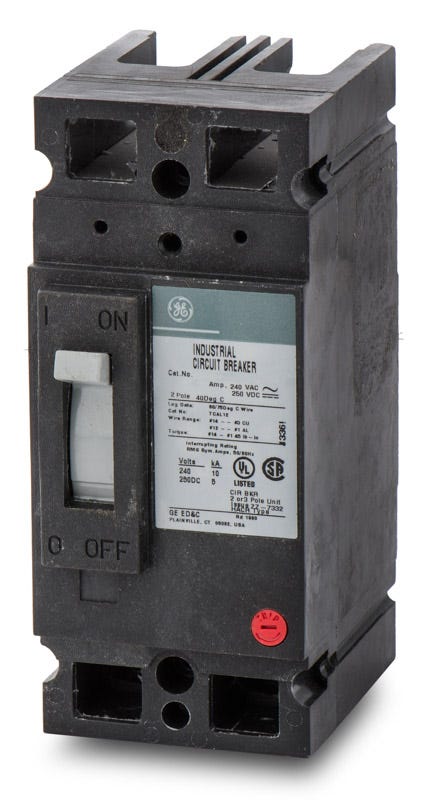

General Electric TEB122035 35A 2-Pole Thermal Magnetic Circuit Breaker – Bolt-On – 240VAC

The General Electric TEB122035 is an E-Frame series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. Rated at 35 Amps with a 2-pole configuration, this bolt-on breaker is built for installation in GE A-Series panelboards, motor control centers, and switchboards. It serves as a direct replacement for legacy TE122035 units and provides dependable protection with fixed thermal magnetic trip functionality.

Voltage and Rating

• Current Rating: 35 Amps
• Voltage Rating: 240VAC / 125–250VDC
• Interrupting Rating:
  • 10 kAIC @ 240VAC
  • 5 kAIC @ 125/250VDC

Key Specifications

• Catalog Number: TEB122035
• Brand: General Electric (ABB / GE)
• Series: TEB
• Product Type: Molded Case Circuit Breaker
• Frame Type: E-Frame
• Number of Poles: 2-Pole
• Phase: 1-Phase
• Mounting Style: Bolt-On
• Trip Technology: Thermal Magnetic
• Trip Function: LI (Long-Time, Instantaneous)
• Trip Adjustability: Fixed Thermal & Fixed Magnetic

Connection & Wiring

• Terminal Type: Lugs Included (Line & Load)
• Wire Range: 14–3 AWG (Cu), 12–1 AWG (Al)
• Max Wire: 3 AWG
• Min Wire: 14 AWG

Protection Features

• Thermal Magnetic Overcurrent Protection
• Fixed Trip Settings
• Common Trip Mechanism
• Trip-Free Operation
• Reverse Feed Compatible
• HACR Rated Performance

Technical Features

• Bolt-on installation design
• Direct replacement for TE122035
• Quick-make / quick-break mechanism
• Non-interchangeable trip unit

Certifications & Standards

• UL 489
• CSA Approved
• NEMA AB-1
• HACR Rated
• 40°C temperature rating

Applications

• GE A-Series panelboards
• Motor control centers (MCCs)
• Commercial switchboards
• Industrial electrical distribution systems
• HVAC and general branch circuit protection
