GE

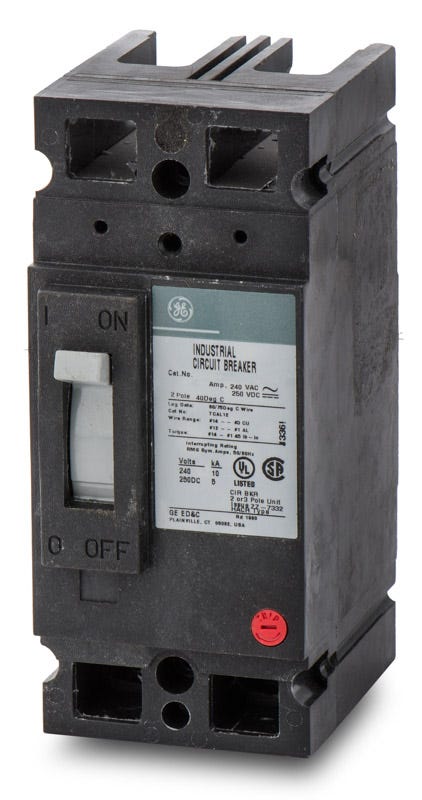

General Electric TED124070 70A 2-Pole Thermal Magnetic Circuit Breaker – Bolt-On – 480VAC

In stock
SKU: TED124070 GTIN/UPC: 783164068146
$446.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The General Electric TED124070 is an E-Frame series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. Rated at 70 Amps with a 2-pole configuration, this breaker is intended for use in GE A-Series and Spectra Series panelboards, switchboards, and motor control centers. It provides dependable protection for AC and DC circuits operating up to 480VAC and 250VDC, ensuring safe and stable performance in demanding electrical applications.

Voltage and Rating

  • Current Rating: 70 Amps
  • Voltage Rating: 480VAC / 250VDC
  • Interrupting Rating: Based on E-Frame system rating (application dependent)

Key Specifications

  • Catalog Number: TED124070
  • Brand: General Electric
  • Product Type: Thermal Magnetic Circuit Breaker
  • Product Line: E150 / E-Frame
  • Frame Type: E-Frame
  • Number of Poles: 2-Pole
  • Mounting Style: Bolt-On
  • Trip Technology: Thermal Magnetic
  • Trip Function: LI (Long-Time, Instantaneous)
  • Suitable for Reverse Feed: Yes

Protection Features

  • Fixed thermal and magnetic protection
  • Reliable short-circuit and overload protection
  • Trip-free mechanism for enhanced safety
  • Designed for AC and DC applications
  • HACR rated performance (where applicable)

Connection & Wiring

  • Line and load lugs included where WL suffix applies
  • Temperature rating: 60/75°C up to 100A, 75°C above 100A

Technical Features

  • Heavy-duty molded case construction
  • Compatible with GE E-Frame panelboards and switchboards
  • Non-interchangeable trip design
  • Industrial-grade durability

Certifications & Standards

  • UL 489
  • CSA C22.2 No. 5
  • CSA / UL Approved
  • NEMA AB-1
  • HACR Rated

Applications

  • Industrial power distribution systems
  • Motor control centers (MCCs)
  • Commercial switchboards and panelboards
  • HVAC and equipment branch circuits
  • General-purpose AC/DC protection systems
  • Type Thermal Magnetic
  • Vendor GE
  • Brand General Electric
