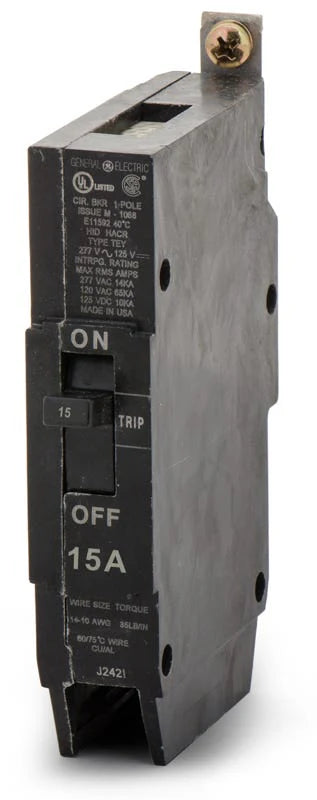

General Electric TEY115 15A 1-Pole Thermal Magnetic Circuit Breaker – Bolt-On – 277VAC

In stock
SKU: TEY115 GTIN/UPC: 783164180909
$93.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The General Electric TEY115 is a Q-Line series molded case circuit breaker designed for dependable branch circuit protection in commercial electrical distribution systems. Rated at 15 Amps with a 1-pole configuration, this bolt-on breaker installs directly into GE A-Series panelboards. It utilizes fixed thermal-magnetic trip technology to provide reliable long-time and instantaneous (LI) protection for lighting, HVAC, and motor branch circuits. The breaker is HACR, HID, and SWD rated for versatile commercial applications.

Voltage and Rating

  • Current Rating: 15 Amps
  • Voltage Rating: 120VAC / 120–240VAC / 240VAC / 277VAC / 125VDC
  • Interrupting Rating:
    • 65 kAIC @ 120VAC
    • 14 kAIC @ 120/240VAC
    • 14 kAIC @ 240VAC
    • 14 kAIC @ 277VAC
    • 10 kAIC @ 125VDC

Key Specifications

  • Catalog Number: TEY115
  • Brand: General Electric (ABB / GE)
  • Series: TEY / Q-Line
  • Product Type: Molded Case Circuit Breaker
  • Number of Poles: 1-Pole
  • Phase: 1-Phase
  • Mounting Style: Bolt-On
  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI (Long-Time, Instantaneous)
  • Trip Adjustability: Fixed Thermal & Fixed Magnetic

Protection Features

  • Reliable overload and short-circuit protection
  • Fixed thermal magnetic trip operation
  • HACR, HID, and SWD rated
  • Trip-free mechanism for enhanced safety
  • Quick-make / quick-break operation
  • Non-interchangeable trip design

Connection & Wiring

  • Wire Range: 14–10 AWG (Cu/Al)
  • Max Wire Size: 10 AWG
  • Min Wire Size: 14 AWG
  • Accessories: Load side lugs included

Technical Features

  • Bolt-on mounting for secure installation
  • Compatible with GE A-Series panelboards
  • Compact Q-Line breaker construction
  • Industrial and commercial-grade durability

Certifications & Standards

  • UL 489
  • CSA C22.2 No. 5
  • CSA Approved
  • HACR Rated
  • HID Rated
  • SWD Rated
  • UL Listed
  • 40°C Temperature Rating

Applications

  • Commercial branch circuit protection
  • Lighting distribution systems
  • HVAC equipment circuits
  • Motor and control panel circuits
  • GE A-Series panelboards and distribution systems
  • Type Thermal Magnetic
  • Vendor GE
  • Brand General Electric
