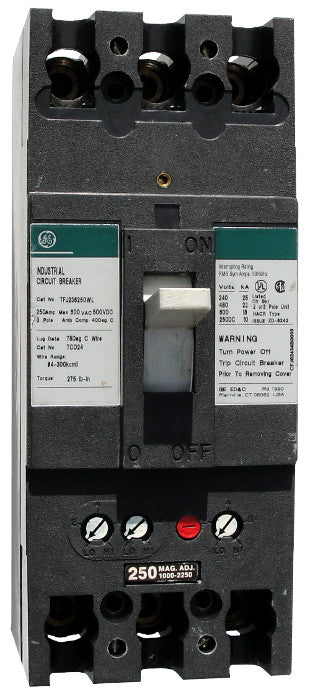

General Electric TFJ236250WL 250A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The General Electric TFJ236250WL is a heavy-duty molded case circuit breaker designed to deliver reliable overload and short-circuit protection in demanding commercial and industrial power distribution systems. Built on the TFJ frame platform, this 3-pole breaker features a thermal magnetic non-interchangeable trip unit rated at 250 amperes at 40°C. Its bolt-on mounting design ensures secure and stable installation, while standard line and load end terminals support straightforward field wiring. With high interrupting capacity across AC and DC systems, this breaker is well-suited for feeder and distribution protection in systems operating up to 600VAC.

Product Specifications

• Brand: General Electric
• Model: TFJ236250WL
• Amperage: 250 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt-On
• Voltage: 600VAC
• Frequency: 50/60 Hz
• Frame Type: F / TFJ Frame
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Protection Type: Overload and Short Circuit Protection
• Frame Style: TFJ
• Connection Type: Bolt-On
• Trip Setting Range: 1000-2250
• Standard Lug Type: Line and Load End Terminals Included
• Operating Temperature Rating: 40°C
• Construction: Heavy-Duty Industrial Design

Voltage and Ratings

• 25 kA @ 240V AC
• 22 kA @ 480V AC
• 18 kA @ 600V AC
• 10 kA @ 250V DC
• Maximum Rated Voltage: 600VAC
• Frequency Rating: 50/60 Hz

Product Data

• Manufacturer: General Electric GE
• Part Number: TFJ236250WL
• Condition: New Surplus / Certified Reconditioned (subject to availability)
• Poles: 3
• Mounting Style: Bolt-On
• Included Terminals: Line and Load End Terminals Standard
• Application: Commercial and Industrial Power Distribution
• Warranty Coverage: 1 Year In-House Warranty
• Suitable For: Panelboards, Switchgear, Distribution Equipment

Important Note

Please verify compatibility with your electrical system, panelboard, frame type, and current rating requirements before purchase. This breaker includes standard line and load terminals. Installation should be performed by a qualified electrician in accordance with applicable electrical codes and safety standards to ensure safe and reliable operation.
