General Electric GE

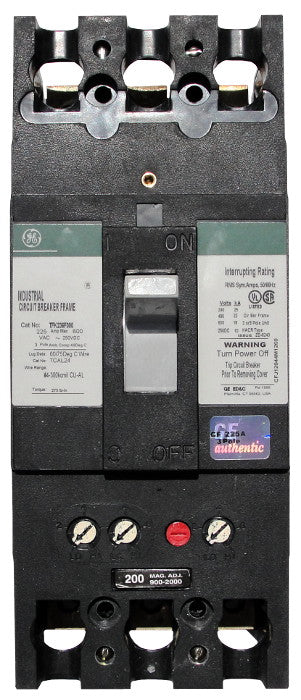

General Electric TFK236200WL 200A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

In stock
SKU: TFK236200WL-NS
$2,992.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

Product Overview

The General Electric TFK236200WL is a robust molded case circuit breaker engineered for dependable overload and short-circuit protection in demanding commercial and industrial electrical systems. Built on the TFK frame platform, this 3-pole breaker features a thermal magnetic interchangeable trip unit rated at 200 amperes at 40°C. Its bolt-on mounting design ensures secure installation, while standard line and load end terminals provide easy field wiring. With strong AC and DC interrupting capacities, this breaker is ideal for protecting feeders, branch circuits, and distribution equipment operating up to 600VAC.

Product Specifications

  • Brand: General Electric
  • Model: TFK236200WL
  • Amperage: 200 Amp
  • Number of Poles: 3 Pole
  • Breaker Type: Molded Case Circuit Breaker
  • Mount Type: Bolt-On
  • Voltage: 600VAC
  • Frequency: 50/60 Hz
  • Frame Type: F / TFK Frame
  • Warranty: One Year

Technical Specifications

  • Trip Unit Type: Thermal Magnetic Interchangeable
  • Protection Type: Overload and Short Circuit Protection
  • Frame Style: TFK
  • Connection Type: Bolt-On
  • Trip Setting Range: 900-2000
  • Standard Lug Type: Line and Load End Terminals Included
  • Operating Temperature Rating: 40°C
  • Construction: Heavy-Duty Industrial Design

Voltage and Ratings

  • 25 kA @ 240V AC
  • 22 kA @ 480V AC
  • 18 kA @ 600V AC
  • 10 kA @ 250V DC
  • Maximum Rated Voltage: 600VAC
  • Frequency Rating: 50/60 Hz

Product Data

  • Manufacturer: General Electric GE
  • Part Number: TFK236200WL
  • Condition: New Surplus / Certified Reconditioned (subject to availability)
  • Poles: 3
  • Mounting Style: Bolt-On
  • Included Terminals: Line and Load End Terminals Standard
  • Application: Commercial and Industrial Power Distribution
  • Warranty Coverage: 1 Year In-House Warranty
  • Suitable For: Panelboards, Switchgear, Distribution Equipment

Important Note

Please verify compatibility with your electrical panel, frame type, trip unit requirements, and system voltage before purchase. This breaker includes standard line and load terminals. Installation should be performed by a qualified electrician in accordance with local electrical codes and safety standards to ensure safe and reliable operation.
