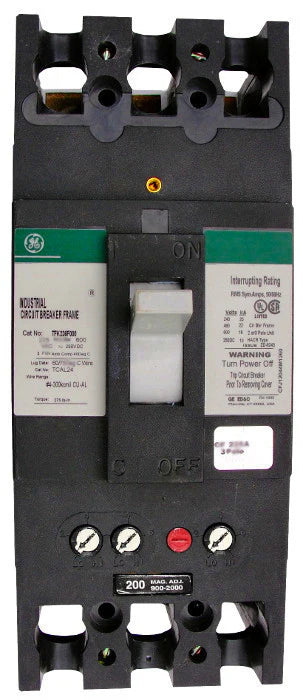

General Electric THFK236150WL 150A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The General Electric THFK236150WL is a heavy-duty molded case circuit breaker designed for dependable circuit protection in commercial and industrial electrical distribution systems. Built on the THFK Hi-Break frame platform, this 3-pole breaker features a thermal magnetic interchangeable trip unit rated at 150 amperes at 40°C. Its bolt-on mounting design allows secure installation, while the included line and load terminals simplify connection. With high interrupting capacities and rugged construction, this breaker is ideal for applications requiring reliable overload and short-circuit protection up to 600VAC.

Product Specifications

• Brand: General Electric
• Model: THFK236150WL
• Amperage: 150 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt-On
• Voltage: 600VAC
• Frequency: 50/60 Hz
• Frame Type: F / THFK Hi-Break Frame
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Thermal Magnetic Interchangeable
• Protection Type: Overload and Short Circuit Protection
• Frame Style: THFK Hi-Break
• Connection Type: Bolt-On
• Trip Setting Range: 700-1500
• Standard Lug Type: Line and Load End Terminals Included
• Operating Temperature Rating: 40°C
• Construction: Industrial Heavy-Duty Design

Voltage and Ratings

• 65 kA @ 240V AC
• 25 kA @ 480V AC
• 18 kA @ 600V AC
• Maximum Rated Voltage: 600VAC
• Frequency Rating: 50/60 Hz

Product Data

• Manufacturer: General Electric GE
• Part Number: THFK236150WL
• Condition: New Surplus / Certified Reconditioned (subject to stock)
• Poles: 3
• Mounting Style: Bolt-On
• Included Terminals: Line and Load End Terminals Standard
• Application: Commercial and Industrial Power Distribution
• Warranty Coverage: 1 Year In-House Warranty
• Suitable For: Panelboards, Switchgear, Distribution Systems

Important Note

Please verify compatibility with your electrical panel, frame type, trip settings, and system voltage before purchase. This breaker includes standard line and load terminals, but all installations should be completed by a qualified electrician in accordance with local electrical codes and safety standards.
