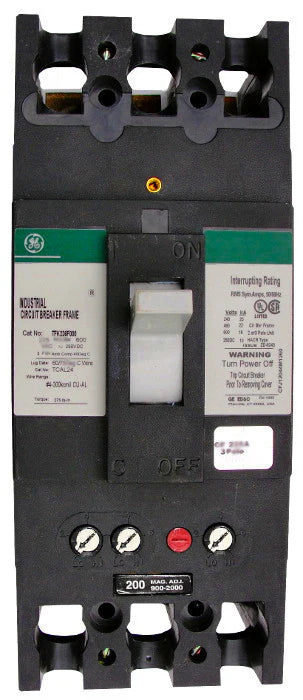

General Electric THFK236200WL 200A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC

The General Electric THFK236200WL is a high-performance molded case circuit breaker engineered for reliable overload and short-circuit protection in demanding industrial and commercial power distribution systems. Built on the THFK Hi-Break frame platform, this 3-pole breaker features a thermal magnetic interchangeable trip unit rated at 200 amperes at 40°C. Its bolt-on mounting design ensures secure installation in panelboards and switchgear assemblies, while standard line and load end terminals allow straightforward field wiring. With strong interrupting ratings across AC systems, this breaker is well-suited for feeder and distribution circuit protection up to 600VAC.

Product Specifications

• Brand: General Electric
• Model: THFK236200WL
• Amperage: 200 Amp
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt-On
• Voltage: 600VAC
• Frequency: 50/60 Hz
• Frame Type: F / THFK Hi-Break Frame
• Warranty: One Year

Technical Specifications

• Trip Unit Type: Thermal Magnetic Interchangeable
• Protection Type: Overload and Short Circuit Protection
• Frame Style: THFK Hi-Break
• Connection Type: Bolt-On
• Trip Setting Range: 900-2000
• Standard Lug Type: Line and Load End Terminals Included
• Operating Temperature Rating: 40°C
• Construction: Heavy-Duty Industrial Design

Voltage and Ratings

• 65 kA @ 240V AC
• 25 kA @ 480V AC
• 18 kA @ 600V AC
• Maximum Rated Voltage: 600VAC
• Frequency Rating: 50/60 Hz

Product Data

• Manufacturer: General Electric GE
• Part Number: THFK236200WL
• Condition: New Surplus / Certified Reconditioned (subject to availability)
• Poles: 3
• Mounting Style: Bolt-On
• Included Terminals: Line and Load End Terminals Standard
• Application: Commercial and Industrial Power Distribution
• Warranty Coverage: 1 Year In-House Warranty
• Suitable For: Panelboards, Switchgear, Distribution Equipment

Important Note

Please verify compatibility with your electrical system, panel configuration, frame type, and trip unit settings before purchase. This breaker includes standard line and load end terminals. Installation should be carried out by a qualified electrician in accordance with local electrical codes and safety standards to ensure safe and reliable operation.
