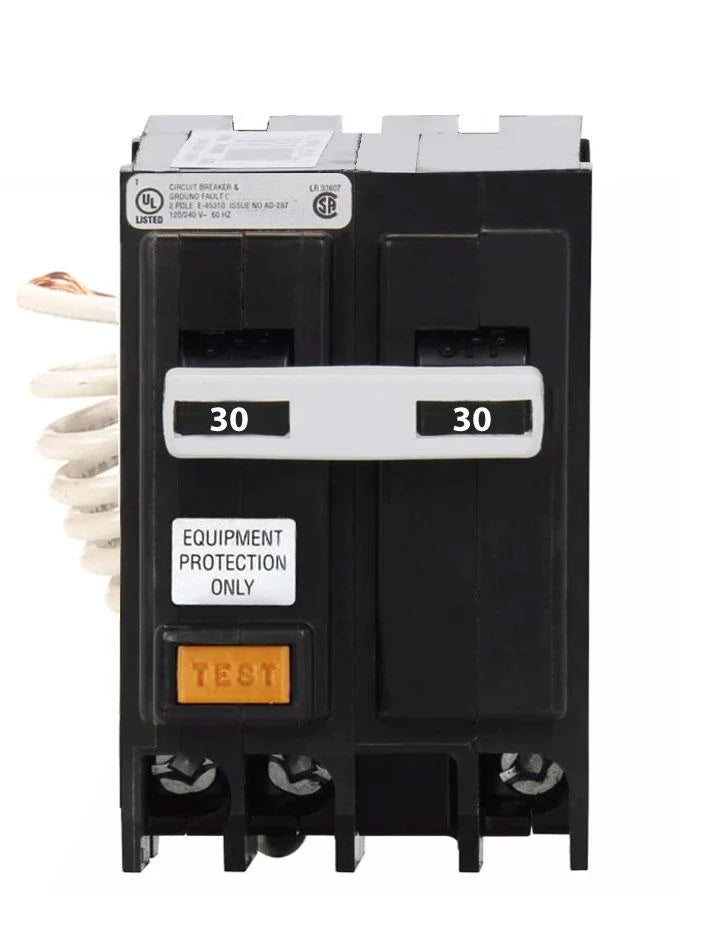

Eaton GFEP230 – 30 Amp 2-Pole Ground Fault Equipment Protector (GFEP) Circuit Breaker | 120/240V | Type BR

Product Description

The Eaton GFEP230 is a 30 Amp, 2-Pole Ground Fault Equipment Protector (GFEP) circuit breaker designed to provide equipment protection from damaging ground faults in 120/240 Volt AC electrical systems. Unlike a standard 5mA GFCI breaker intended for personnel protection, the GFEP230 is calibrated to trip at approximately 30mA, making it ideal for applications such as heat trace systems, snow melting equipment, irrigation, pumps, HVAC equipment, and other commercial or industrial loads where equipment protection is required.

Built on Eaton's trusted Type BR platform, the GFEP230 installs into compatible Eaton BR load centers and panelboards while providing dependable overload, short-circuit, and ground fault equipment protection.

Key Features

• Genuine Eaton / Cutler-Hammer Circuit Breaker

• Catalog Number: GFEP230

• 30 Amp

• 2-Pole

• 120/240 Volt AC

• Ground Fault Equipment Protector (GFEP)

• 30mA Ground Fault Trip Level

• Thermal-Magnetic Protection

• Common Trip Design

• Type BR Plug-In Breaker

• 10kAIC Interrupt Rating

• UL 489 Listed

• Designed for Equipment Protection Applications

Technical Specifications

Manufacturer: Eaton

Catalog Number: GFEP230

Series: Type BR

Breaker Type: Ground Fault Equipment Protector (GFEP)

Amperage: 30 Amps

Poles: 2

Voltage Rating: 120/240 VAC

Frequency: 50/60 Hz

Interrupting Rating (KAIC):

• 10kA @ 120/240VAC

Ground Fault Trip Level:

• 30mA (Equipment Protection)

Trip Type: Common Trip

Protection Type:

• Overload Protection

• Short Circuit Protection

• Ground Fault Equipment Protection

Wire Range:

• #14–#4 AWG Copper/Aluminum

Mounting Style:

• Plug-In

Panel Compatibility:

• Eaton BR Load Centers

• Cutler-Hammer BR Panels

• Bryant BR Panels

• Westinghouse BR Panels

Certifications:

• UL 489 Listed

Product Data

Brand: Eaton

Manufacturer: Eaton Corporation

Part Number: GFEP230

UPC / GTIN: 00786676382557

Condition: New

Country of Manufacture: Dominican Republic

Important Note

The GFEP230 is an Equipment Protection breaker, not a Class A GFCI breaker for personnel protection. It trips at approximately 30mA, making it suitable for protecting equipment from ground faults but not for applications requiring 5mA personnel protection as required by the National Electrical Code (NEC) for receptacles, spas, kitchens, bathrooms, and similar locations.
