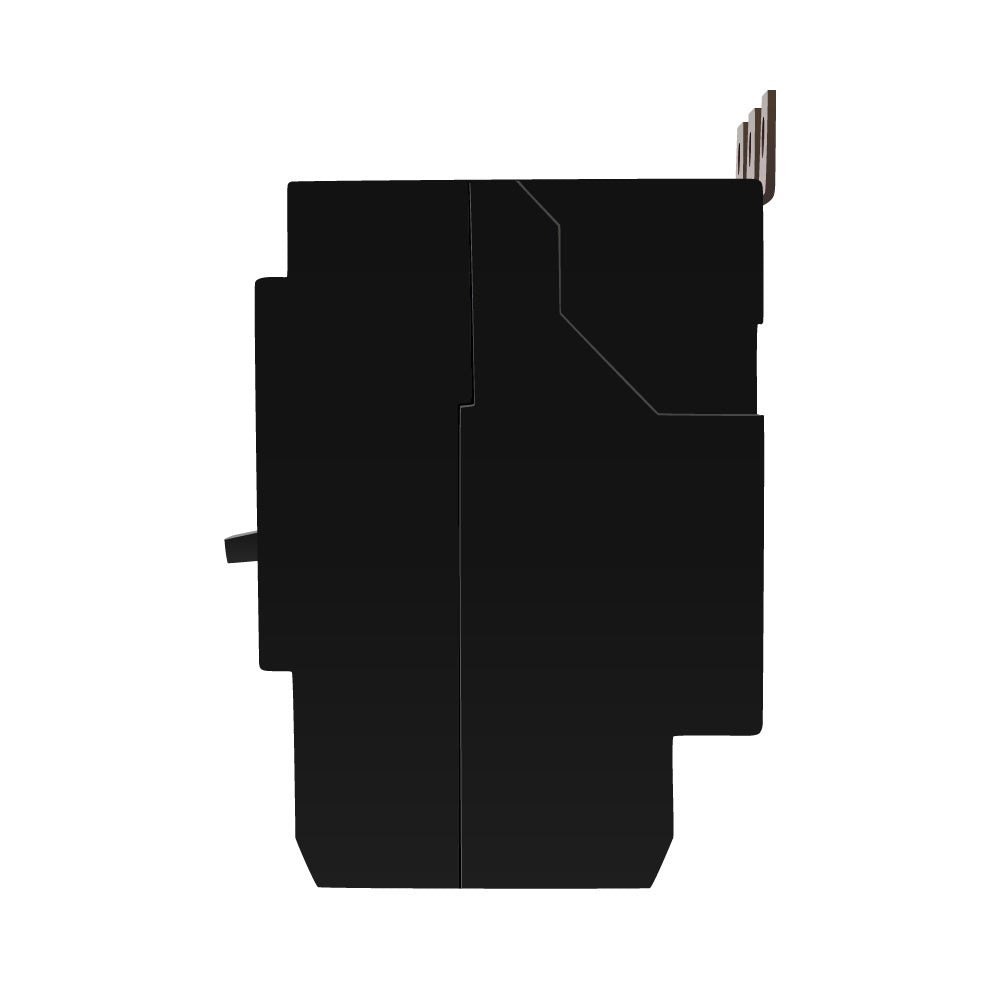

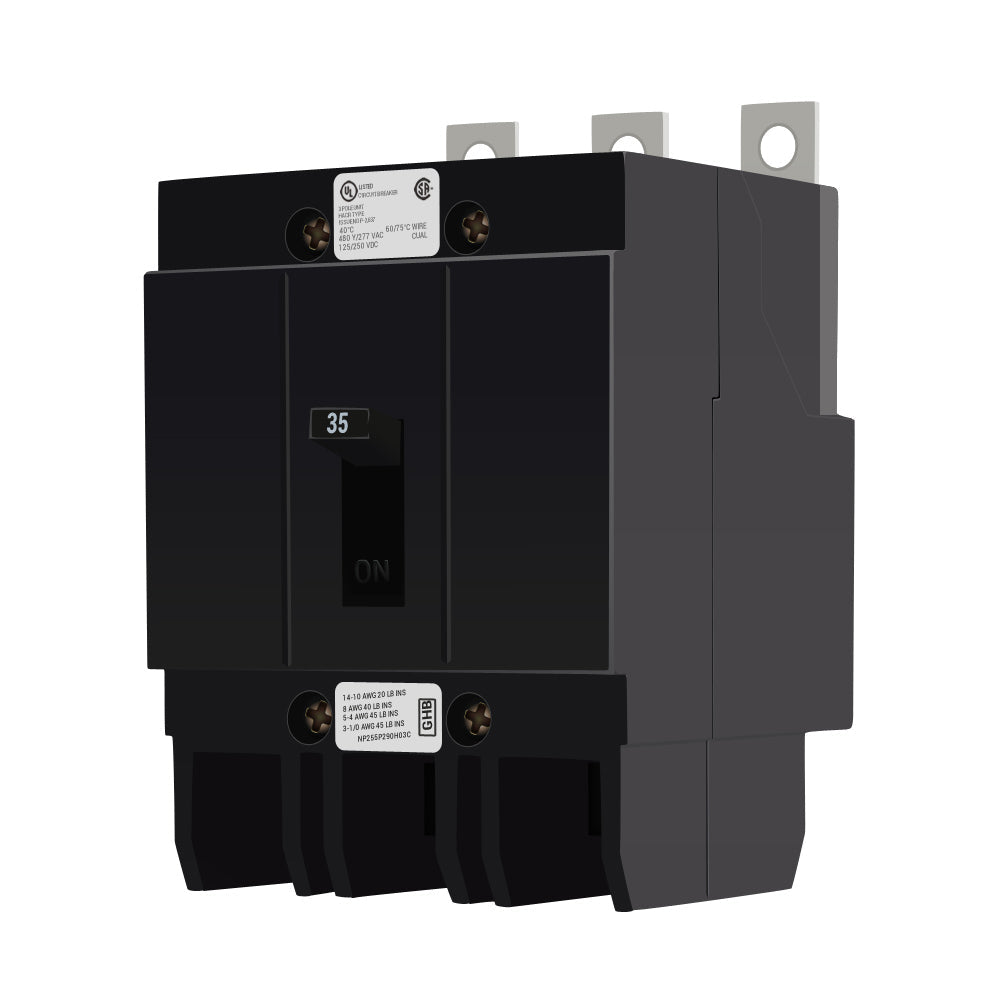

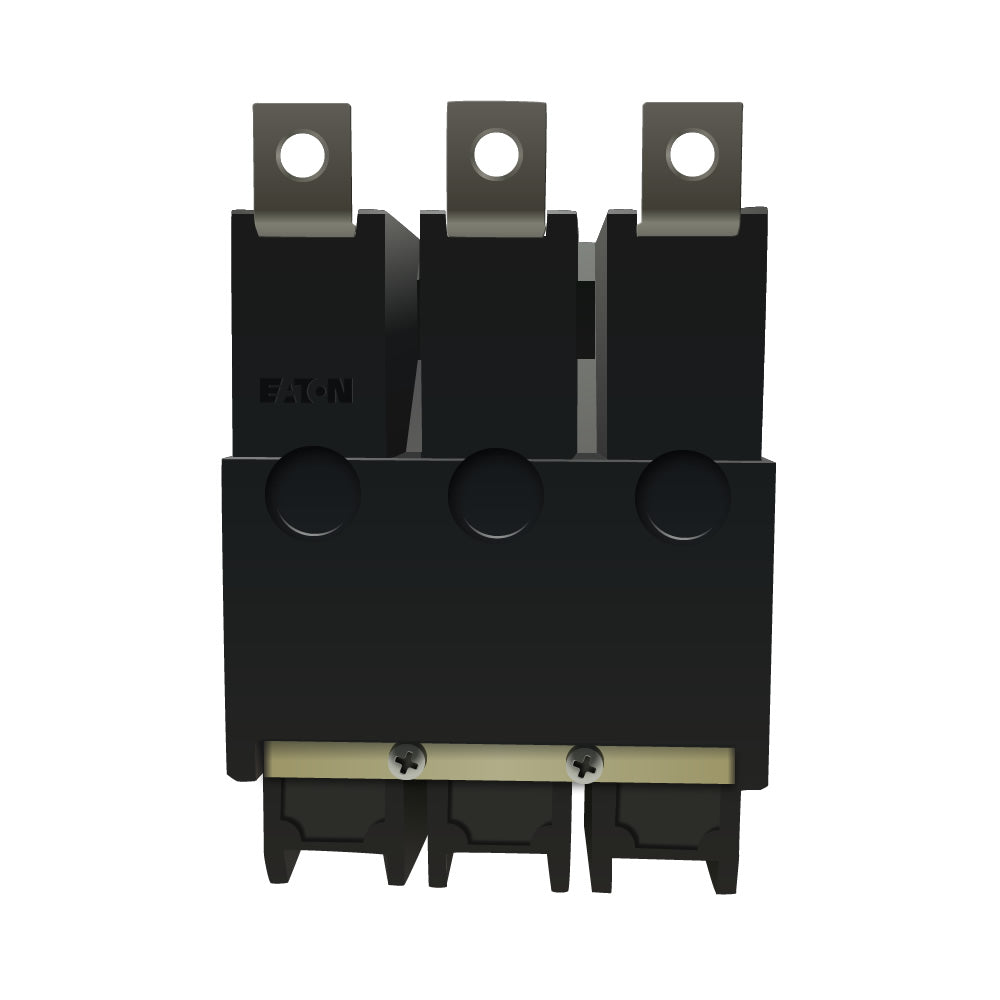

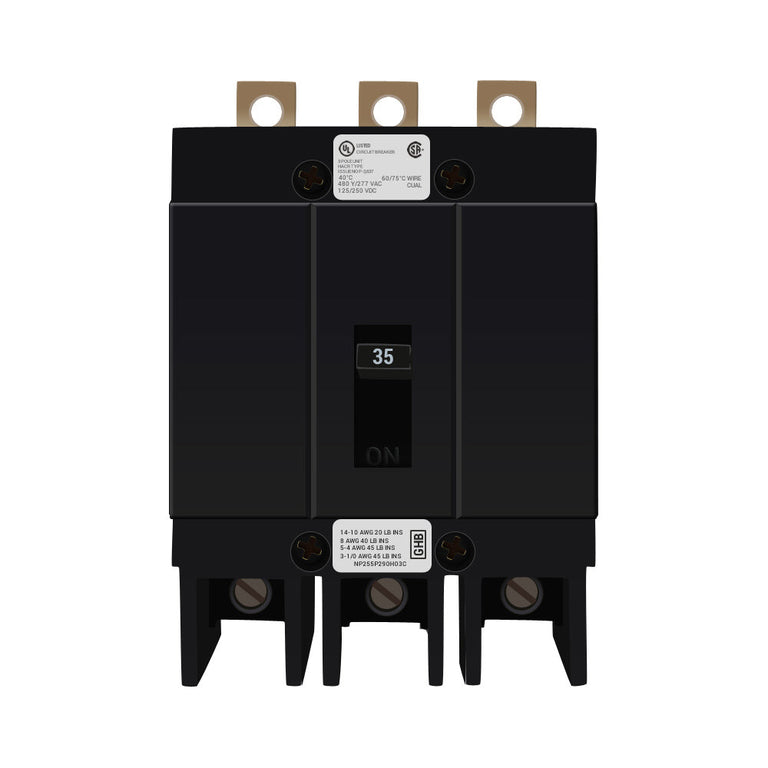

Eaton GHB3035 Molded Case Circuit Breaker – 35A – 3-Pole – 480Y/277V AC – 14kA @ 480V – Bolt-On – Series C GHB

The Eaton GHB3035 is a 35A, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C GHB family. It features a G-frame, fixed thermal-magnetic trip design with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 480Y/277V AC with a 14kA interrupting rating at 480V. It uses a bolt-on configuration, has a non-interchangeable trip, and is suitable for compatible Eaton panelboard and electrical distribution applications. The breaker is also suitable for reverse-feed use.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: GHB
• Frame Type: G-Frame
• Catalog No.: GHB3035
• Current Rating: 35A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 480Y/277V AC
• Maximum AC Voltage: 480V
• DC Voltage Rating: 125/250V DC
• Interrupting Rating: 14kA @ 480V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Fixed Thermal / Fixed Magnetic
• Trip Unit: Non-Interchangeable
• Mounting / Connection: Bolt-On
• Terminal Type: Screw-Clamp Line and Load Terminals
• Reverse Feed: Suitable
• Frequency: 50/60 Hz
• Ratings: HACR Rated
• Application: Electrical Distribution and Overcurrent Protection
• UPC: 786679172605
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): GHB3035
• Catalog Number: GHB3035
• Product Family: Eaton Series C
• Series: GHB
• Frame: G-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: GHB3035
• Breaker Configuration: 3-Pole, 35A
• UPC: 786679172605

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C GHB electrical distribution equipment and panelboards that accept G-frame bolt-on circuit breakers. The GHB3035 provides 35A, 3-pole thermal-magnetic protection for compatible 480Y/277V AC applications and has a 14kA interrupting rating at 480V.

The breaker is suitable for reverse-feed applications and uses fixed thermal and magnetic trip protection. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• UL 489 Listed
• 35A Rated
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• 125/250V DC Rated
• 14kA Interrupting Rating @ 480V
• Thermal-Magnetic Protection
• Fixed Thermal / Fixed Magnetic Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• HACR Rated
• Suitable for Reverse Feed
• G-Frame
• Genuine Eaton / Cutler-Hammer Product
