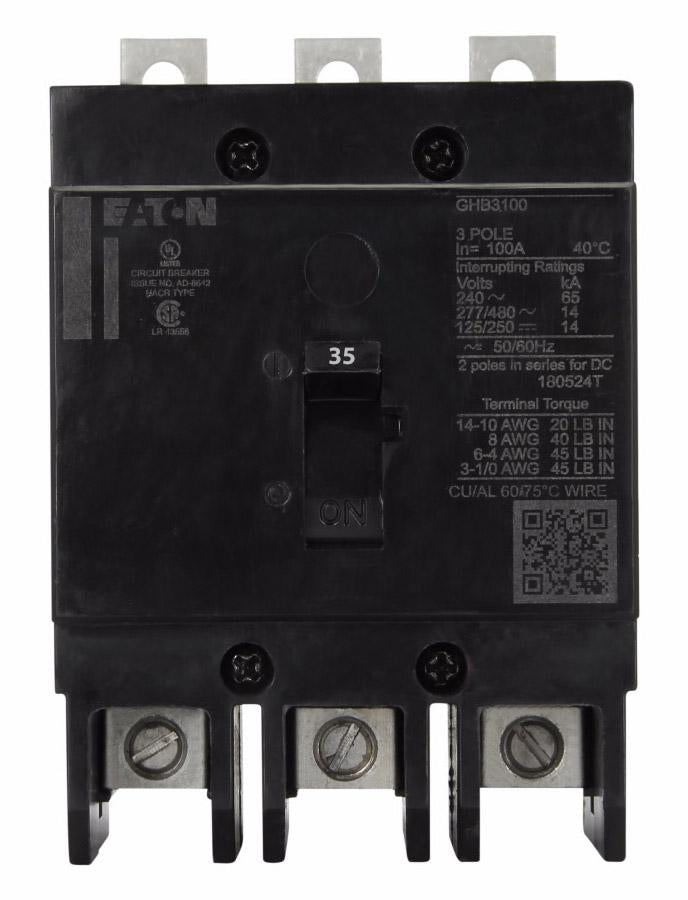

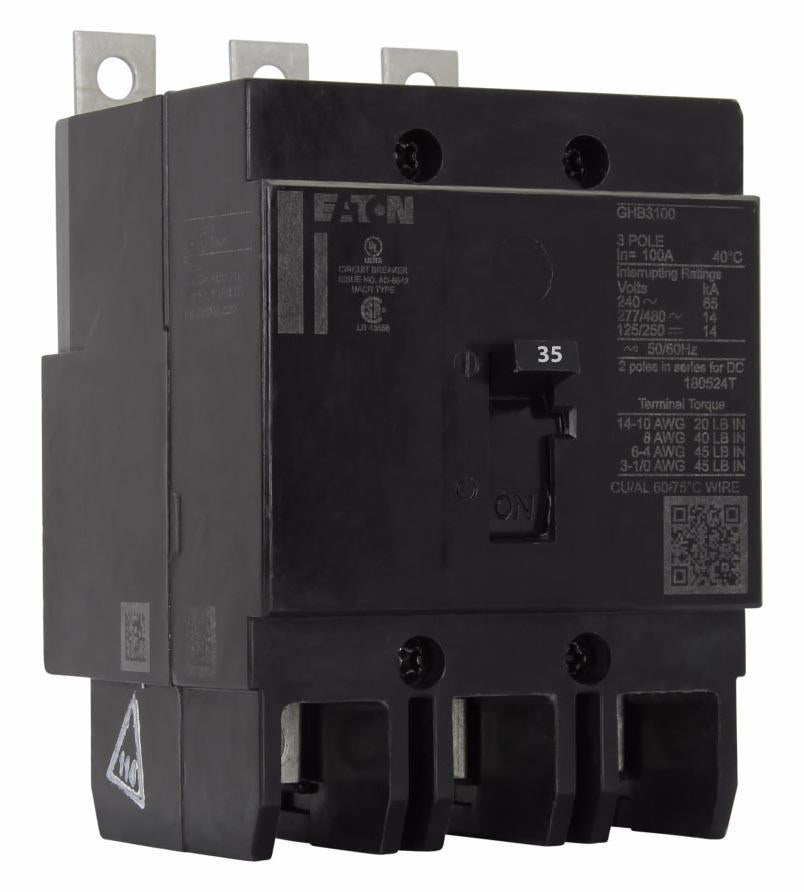

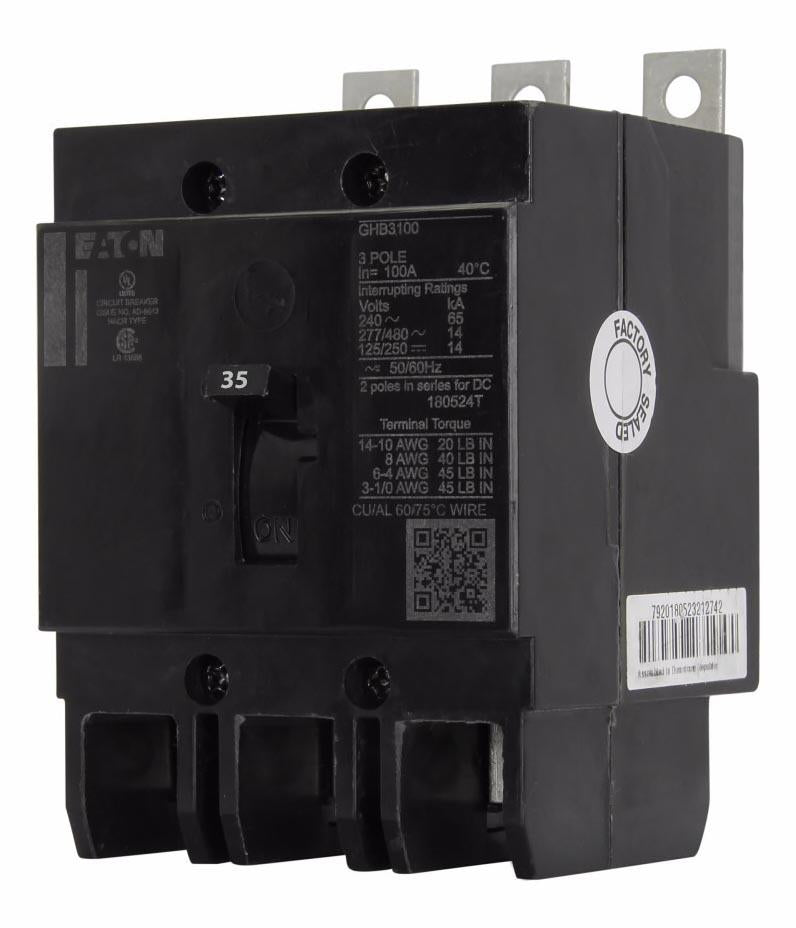

Eaton GHB3035S1 35 Amp Molded Case Circuit Breaker – 3 Pole – 480Y/277 V AC – 125/250 V DC – 65 kAIC@240 V AC – 14 kAIC@480Y/277 V AC – 120 V AC Rear Connection with Left Pigtail – Series C

The Eaton GHB3035S1 is a 35 Amp, 3-pole complete molded case circuit breaker from the Eaton Series C, G-frame product range. It is rated for 480Y/277 V AC and 125/250 V DC, with interrupting capacities of 65 kAIC at 240 V AC and 14 kAIC at 480Y/277 V AC. The breaker features fixed thermal and fixed magnetic trip protection and a 120 V AC rear connection with a left pigtail.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Complete Molded Case Circuit Breaker
• Series: Series C
• Frame: G Frame
• Catalog Number / MPN: GHB3035S1
• Primary Rating: 35 Amp
• Poles / Configuration: 3 Pole
• Voltage: 480Y/277 V AC
• DC Voltage: 125/250 V DC
• Interrupting Rating: 65 kAIC @ 240 V AC; 14 kAIC @ 480Y/277 V AC
• Trip Type: Fixed Thermal / Fixed Magnetic
• Connection: 120 V AC Rear Connection with Left Pigtail
• Frequency: 50/60 Hz

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: GHB3035S1
• Series: Series C
• Frame: G Frame
• Current Rating: 35 A
• Pole Count: 3 Pole
• Product Type: Complete Molded Case Circuit Breaker
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• Connection: Rear Connection with Left Pigtail
• UPC:786679060476

Compatibility

The Eaton GHB3035S1 is intended for compatible Eaton Series C G-frame electrical distribution and circuit protection applications.
