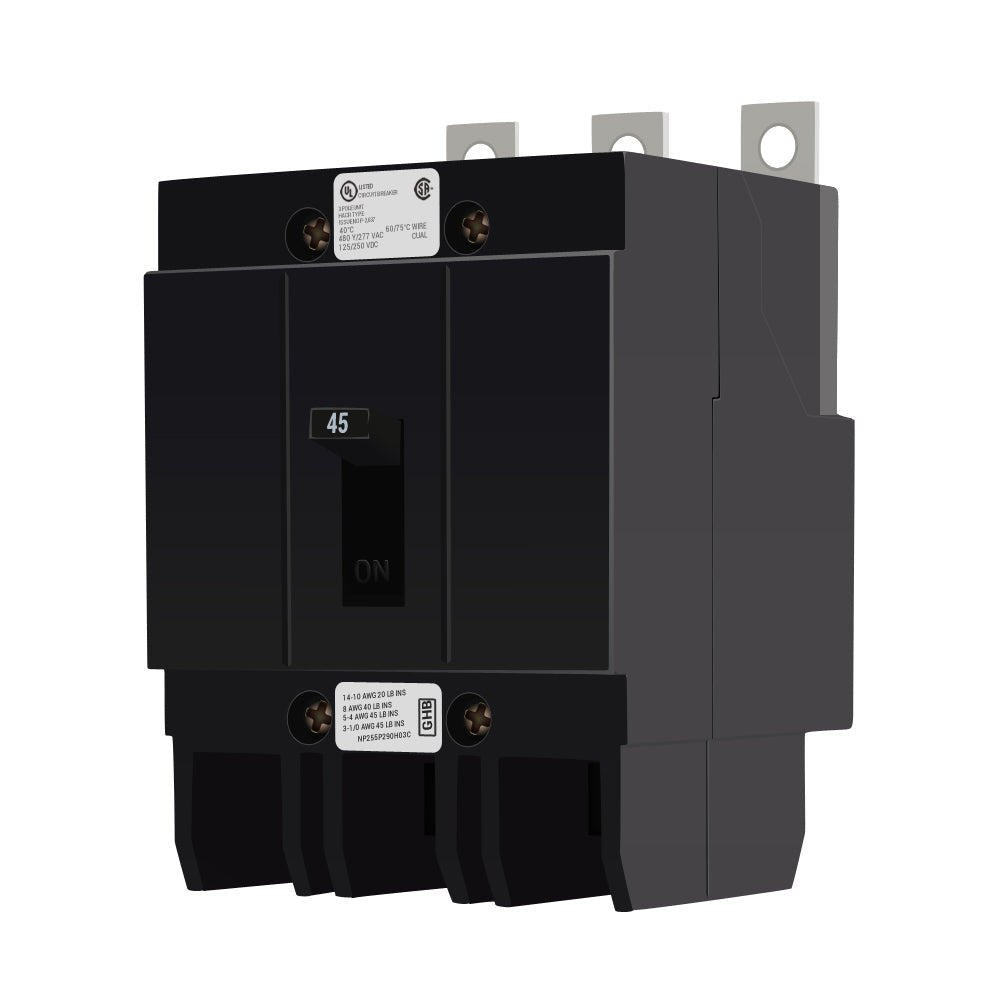

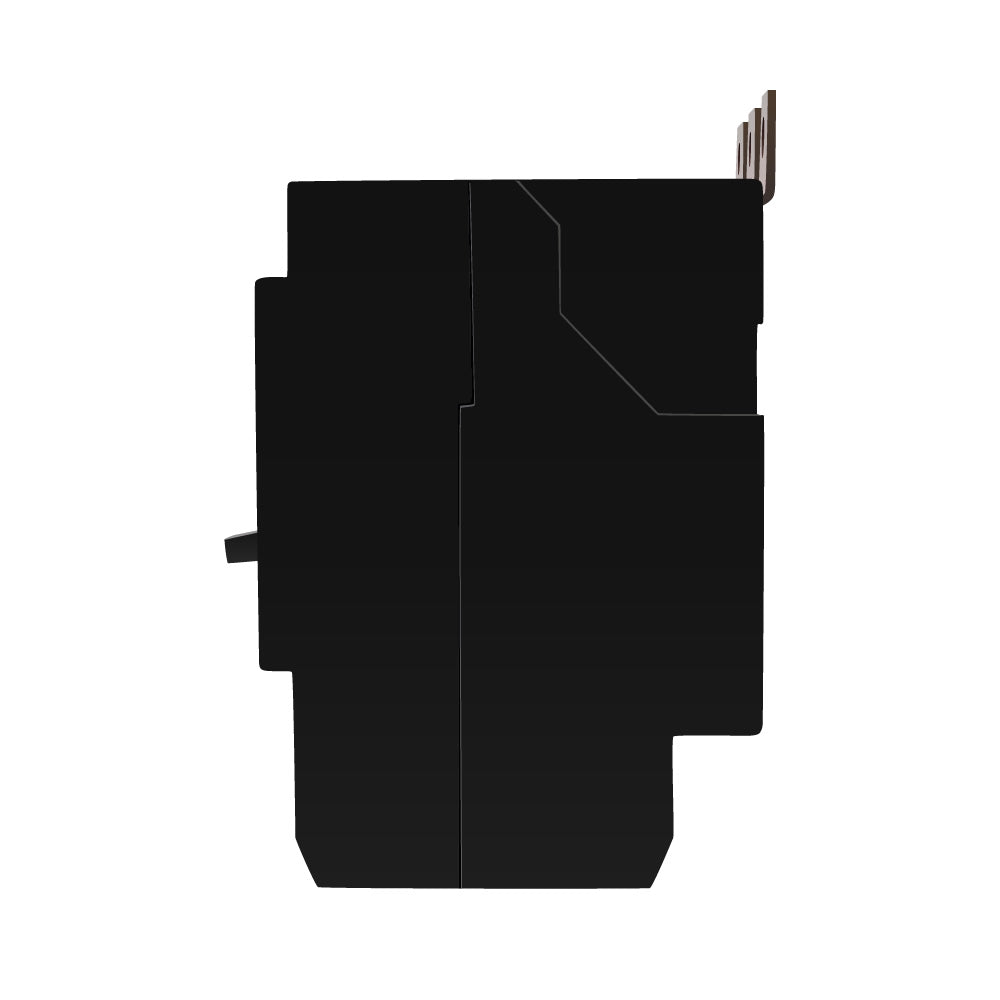

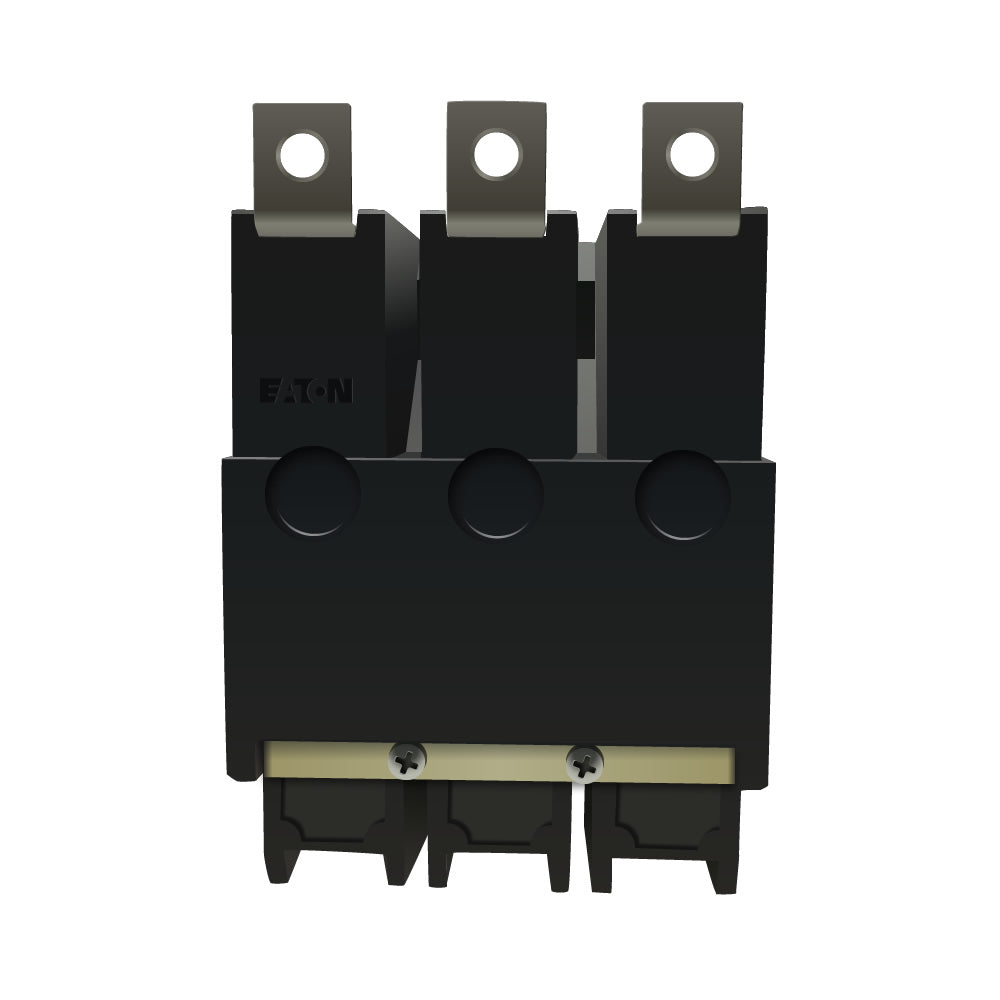

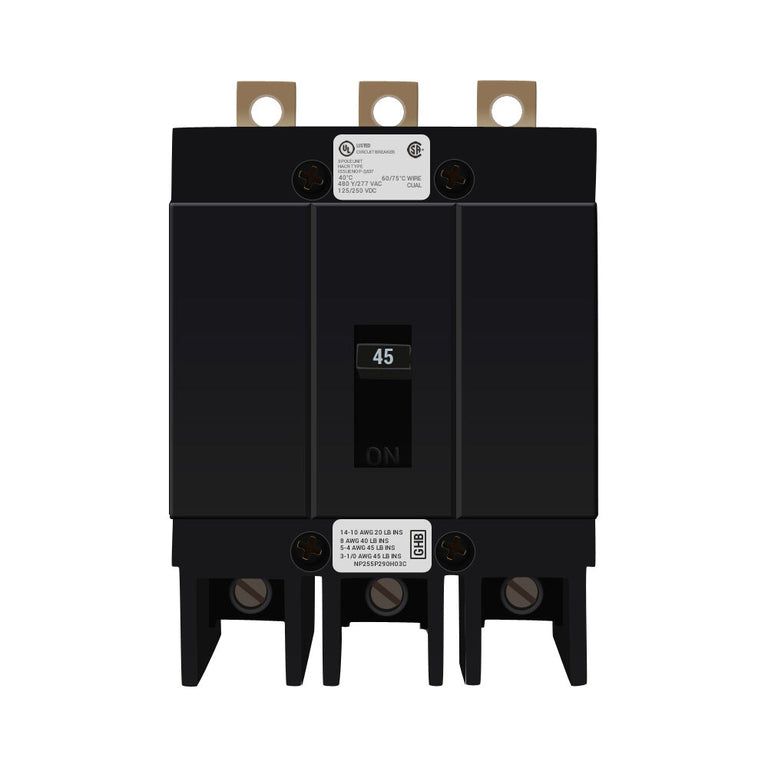

Eaton GHB3045 Molded Case Circuit Breaker – 45A – 3-Pole – 480V – 14kA – Bolt-On – GHB Series

The Eaton GHB3045 is a 45A, 3-pole bolt-on molded case circuit breaker from the Cutler-Hammer C Series. It features thermal-magnetic trip protection, a maximum voltage rating of 480V, and provides 14kA interrupting capacity at 480V. The breaker provides long-time and instantaneous protection and is suitable for reverse-feed applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Catalog No.: GHB3045
• Product Family: Cutler-Hammer C Series
• Series: GHB
• Current Rating: 45A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 480V
• Trip Type: Thermal-Magnetic
• Protection Functions: Long-Time and Instantaneous
• Interrupting Rating: 14kA at 480V
• Mounting Type: Bolt-On
• Reverse Feed: Suitable for Reverse Feed
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): GHB3045
• Catalog Number: GHB3045
• Model: GHB3045
• Product Family: Cutler-Hammer C Series
• Series: GHB
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 45A
• upc:786679172643

Compatibility:

Designed for compatible Eaton / Cutler-Hammer C Series electrical distribution applications that accept GHB-type bolt-on molded case circuit breakers. The GHB3045 provides 45A thermal-magnetic protection with long-time and instantaneous functions and is suitable for reverse-feed applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and reverse-feed requirements before installation.

Certifications:

• 45A Rated
• 3-Pole / 3-Phase
• 480V Maximum Voltage Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous Protection
• 14kA Interrupting Rating at 480V
• Bolt-On Mounting
• Reverse-Feed Suitable
• Genuine Eaton / Cutler-Hammer Product
