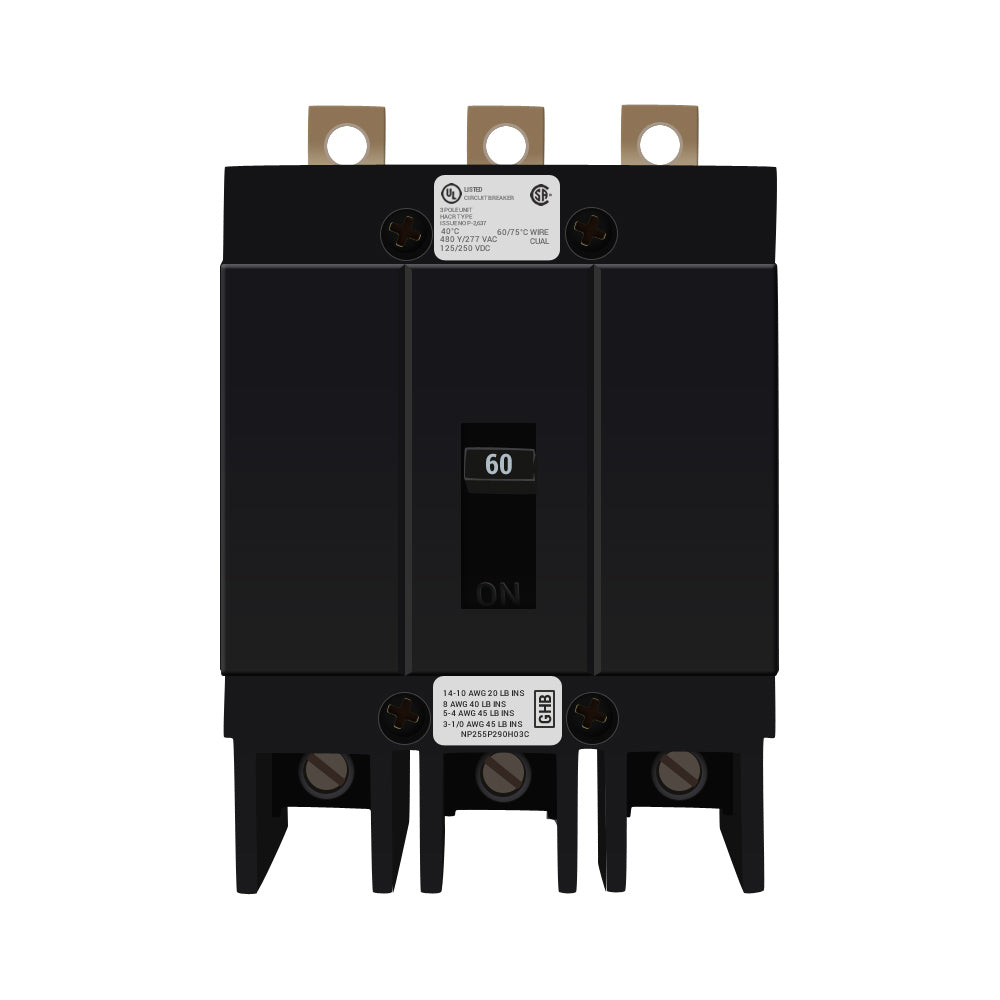

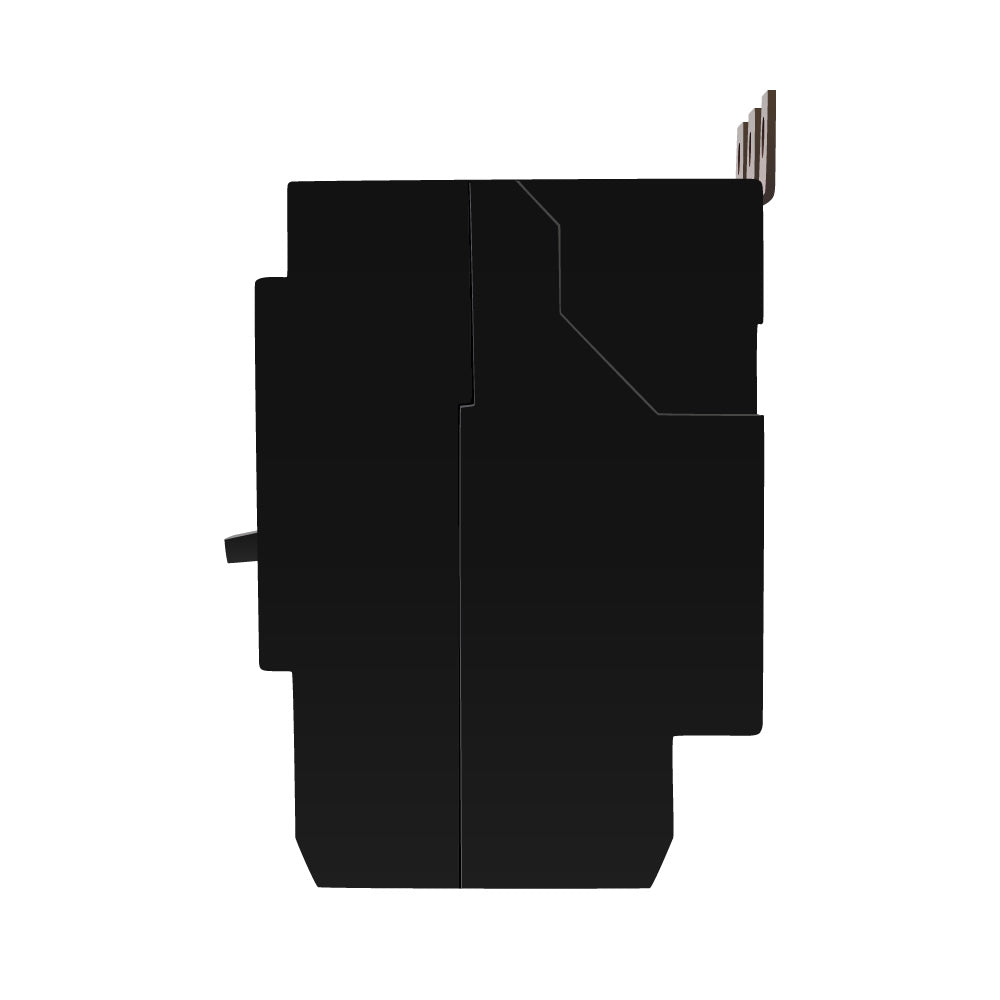

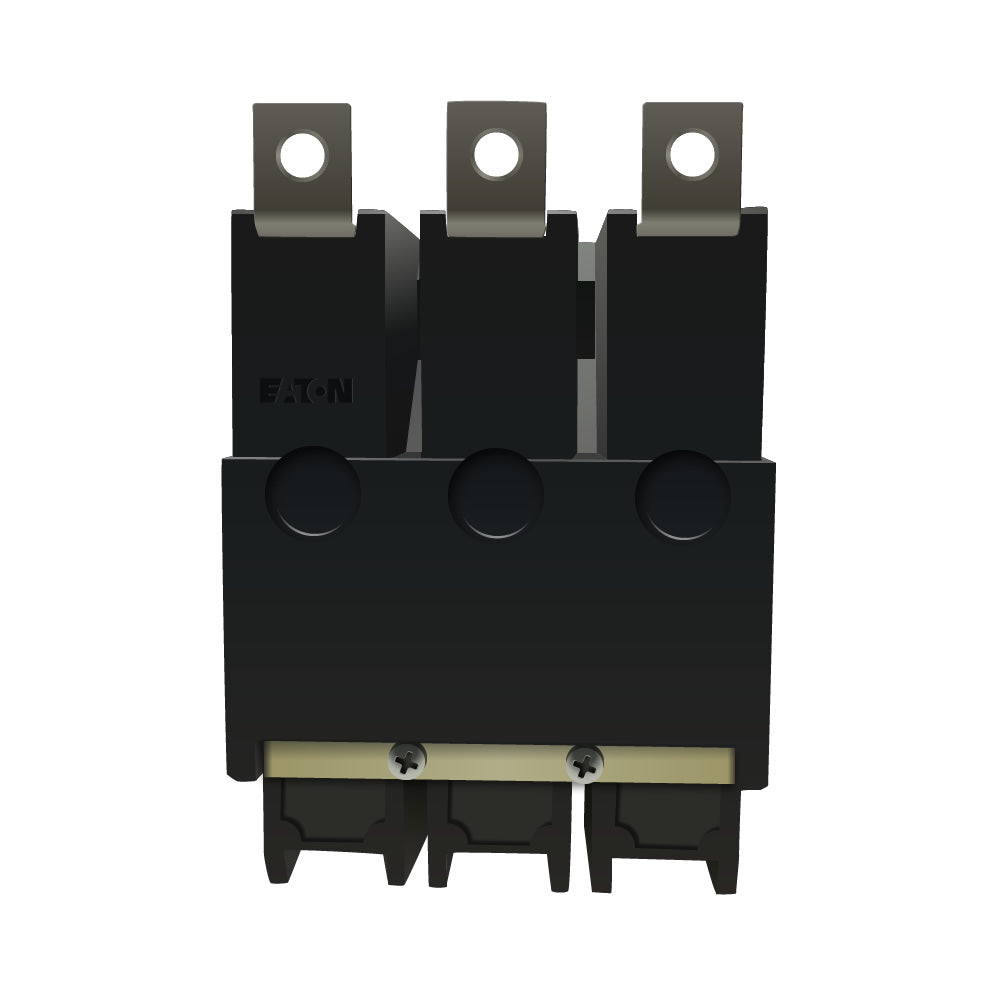

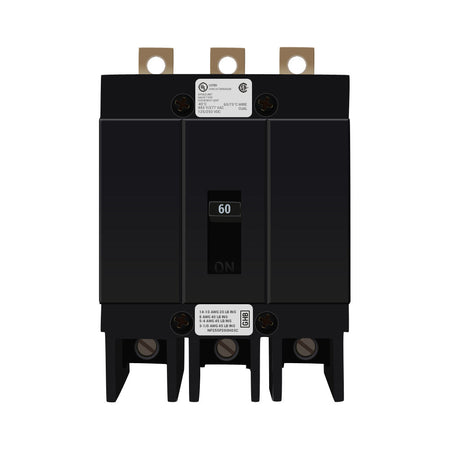

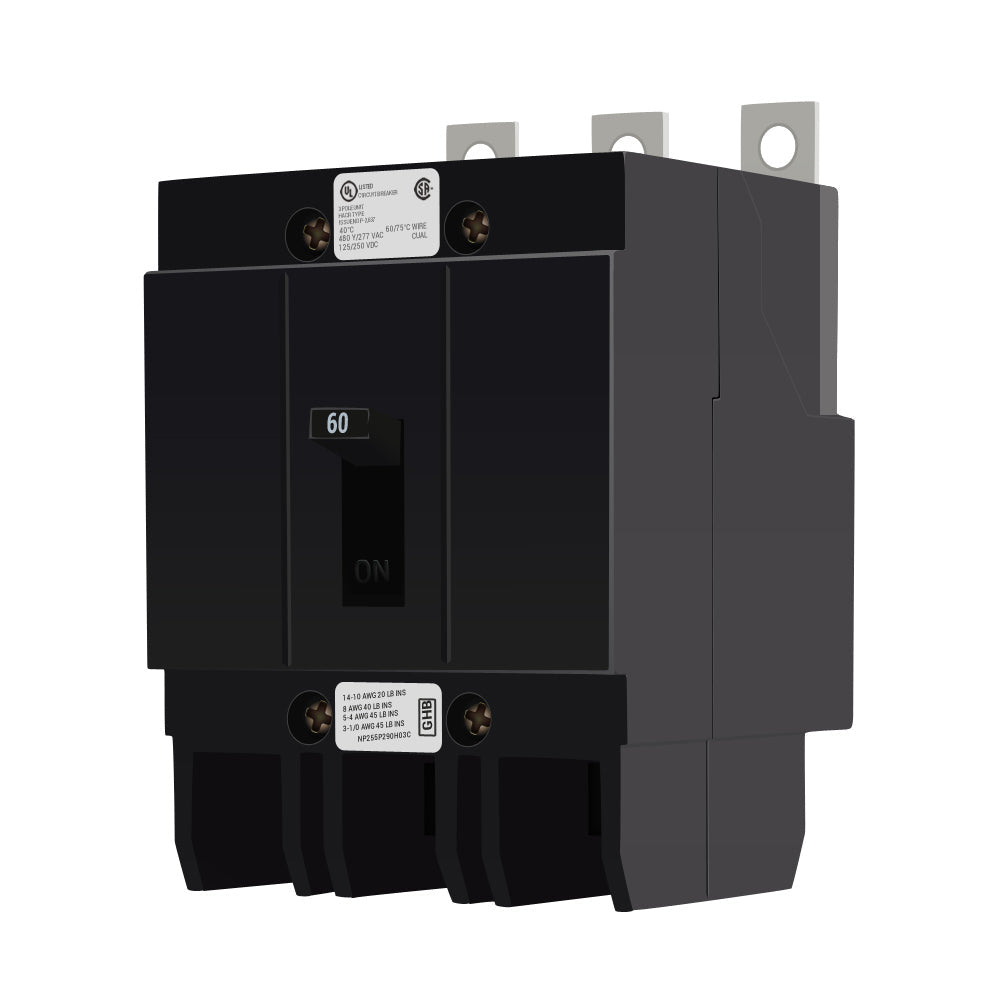

Eaton GHB3060 Molded Case Circuit Breaker – 60A – 3-Pole – 480Y/277V AC – 14 kAIC – Bolt-On – Series C

The Eaton GHB3060 is a 60A, 3-pole molded case circuit breaker from the Series C G-Frame family, designed for compatible commercial and industrial electrical distribution applications. It features a fixed thermal-magnetic trip unit that provides reliable protection against overloads and short circuits.

The GHB3060 uses a bolt-on connection and is designed for use with compatible Eaton Pow-R-Line panelboards and other approved electrical distribution equipment. It is rated for 480Y/277V AC and provides an interrupting capacity of 14 kAIC at 480Y/277V AC. The breaker is also rated for compatible 125/250V DC applications.

With its 3-pole configuration and thermal-magnetic protection, the GHB3060 is suitable for compatible industrial power distribution, motor branch circuit, HVAC, lighting, and panelboard applications.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Catalog No.: GHB3060
• Series: Series C
• Frame: G-Frame
• Type: GHB
• Current Rating: 60A
• Voltage Rating: 480Y/277V AC
• DC Voltage Rating: 125/250V DC
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Frequency: 50/60 Hz
• Trip Unit: Fixed Thermal-Magnetic
• Protection: Overload and Short-Circuit Protection
• Mounting Type: Bolt-On
• Connection: Bolt-On
• Interrupting Rating: 14 kAIC at 480Y/277V AC
• Interrupting Rating: 65 kAIC at 240V AC
• Wire Range: #10–1/0 AWG Copper/Aluminum
• Application: Commercial and Industrial Circuit Protection
• Compatible Equipment: Eaton Pow-R-Line Panelboards
• UPC: 786679048092
• Authenticity: Genuine Eaton Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): GHB3060
• Catalog Number: GHB3060
• Model: GHB3060
• Product Family: Eaton Series C Circuit Breakers
• Series: Series C
• Frame: G-Frame
• Type: GHB
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• upc:786679048092

Compatibility

Designed for use with compatible Eaton Pow-R-Line panelboards and other approved electrical distribution equipment that accepts the Series C G-Frame GHB circuit breaker configuration.

The GHB3060 is intended for compatible 3-phase, 480Y/277V AC electrical distribution applications and uses a bolt-on connection. It is also rated for compatible 125/250V DC applications.

Always verify the specific panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor size, mounting arrangement, and installation requirements before installation.

Certifications

• Series C / G-Frame
• 60A Rating
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• 125/250V DC Rated
• Fixed Thermal-Magnetic Trip
• 14 kAIC at 480Y/277V AC
• 65 kAIC at 240V AC
• Bolt-On Connection
• #10–1/0 AWG Copper/Aluminum
• Designed for Eaton Pow-R-Line Panelboards
• Genuine Eaton Product
