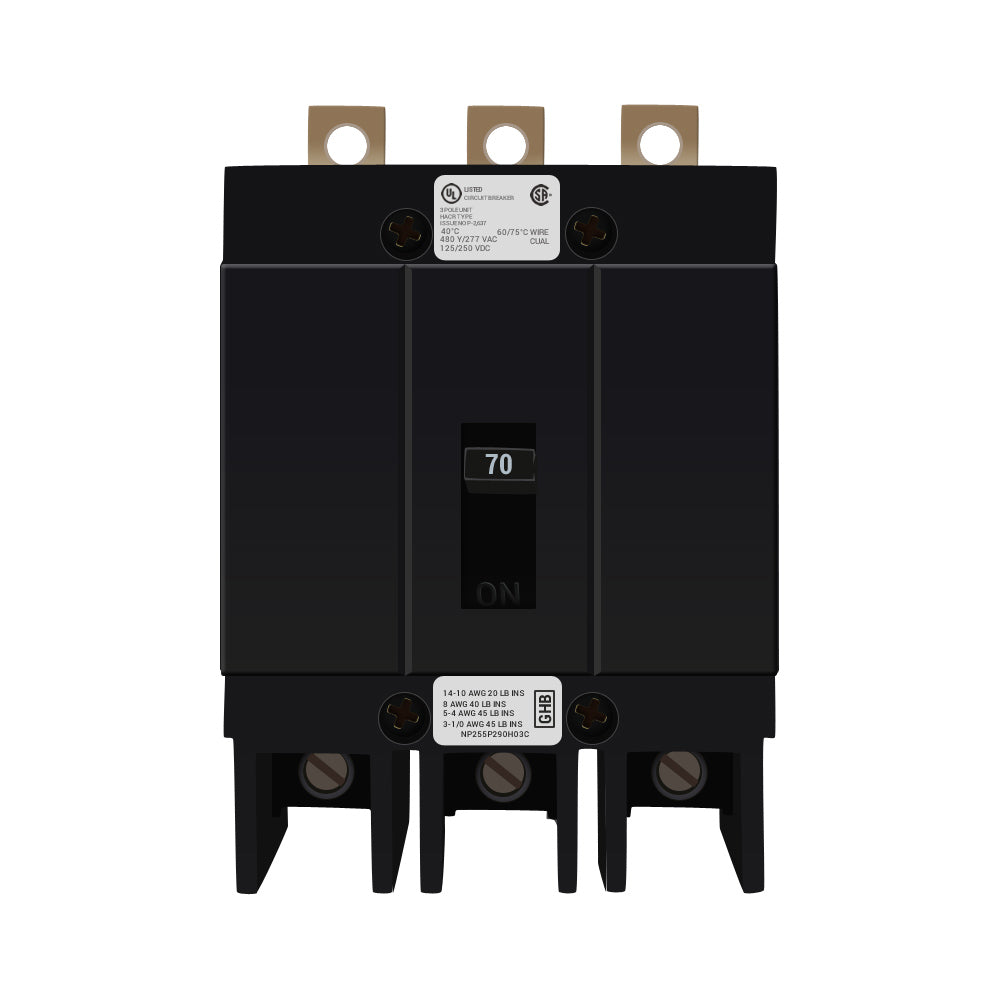

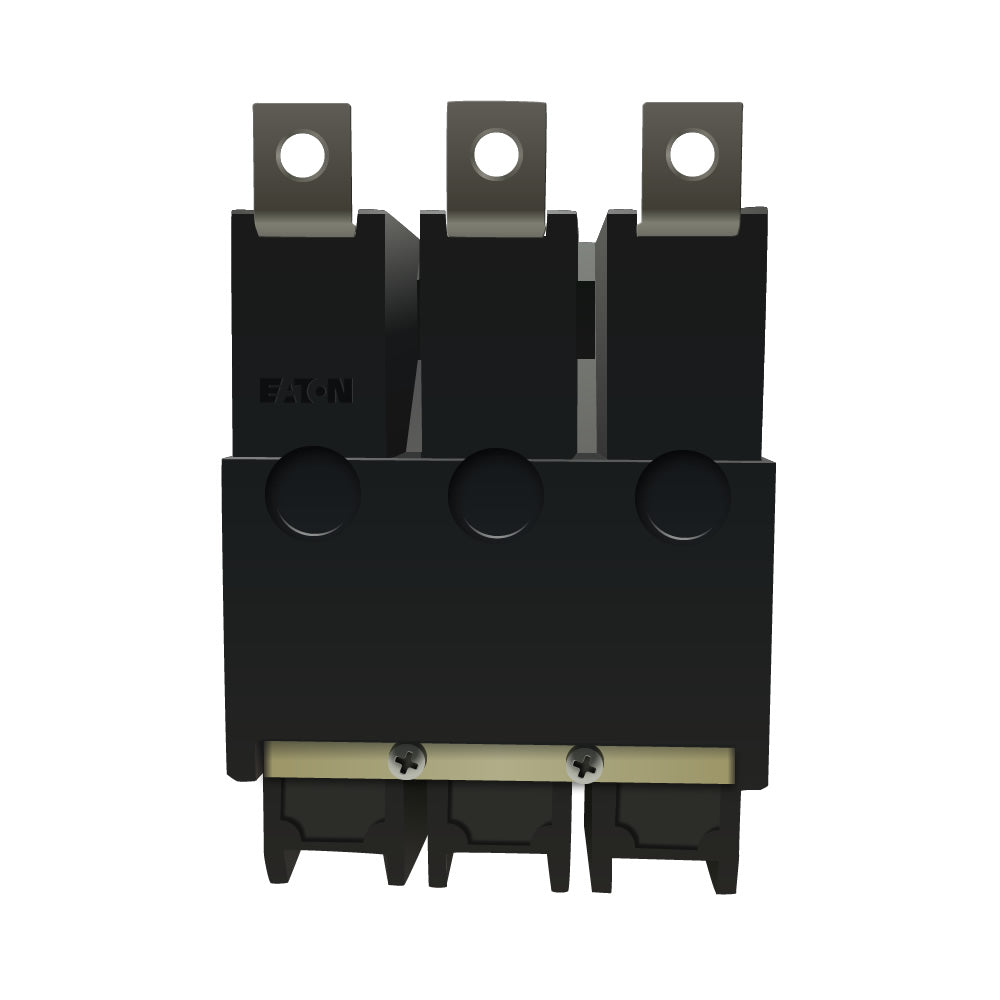

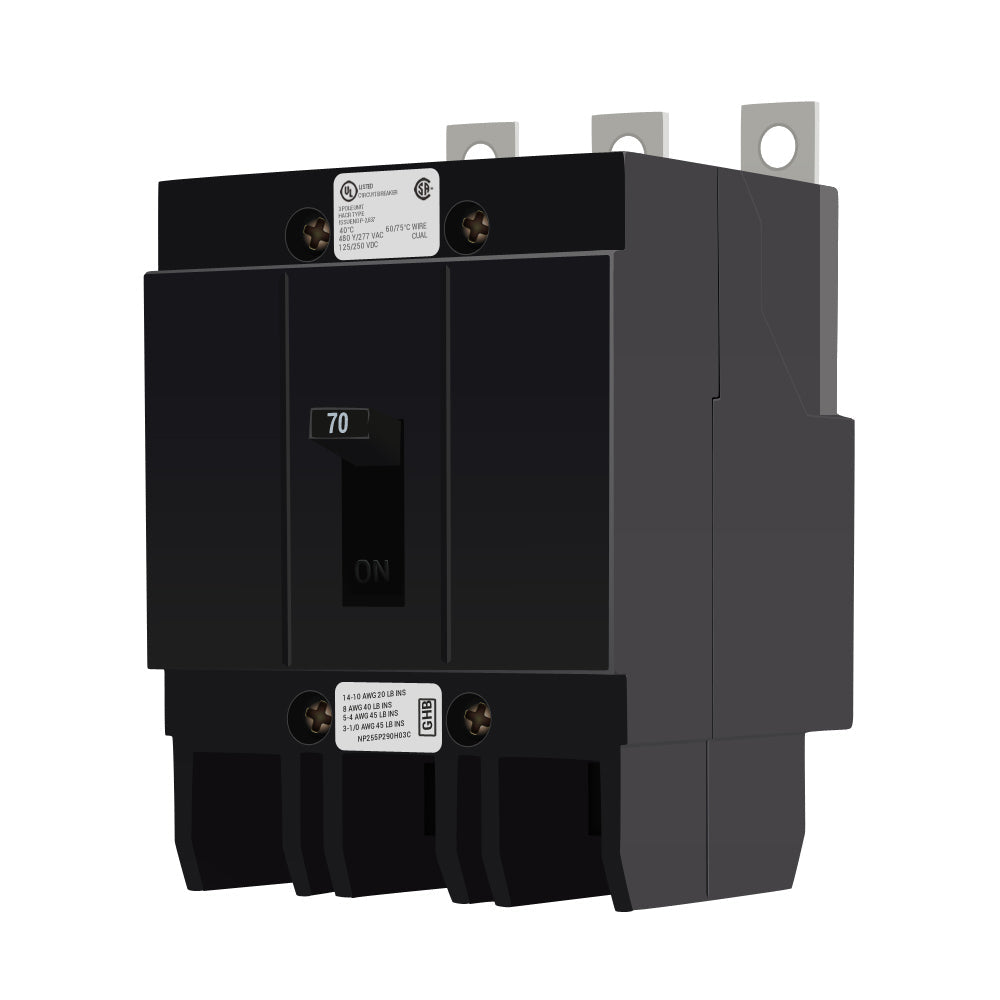

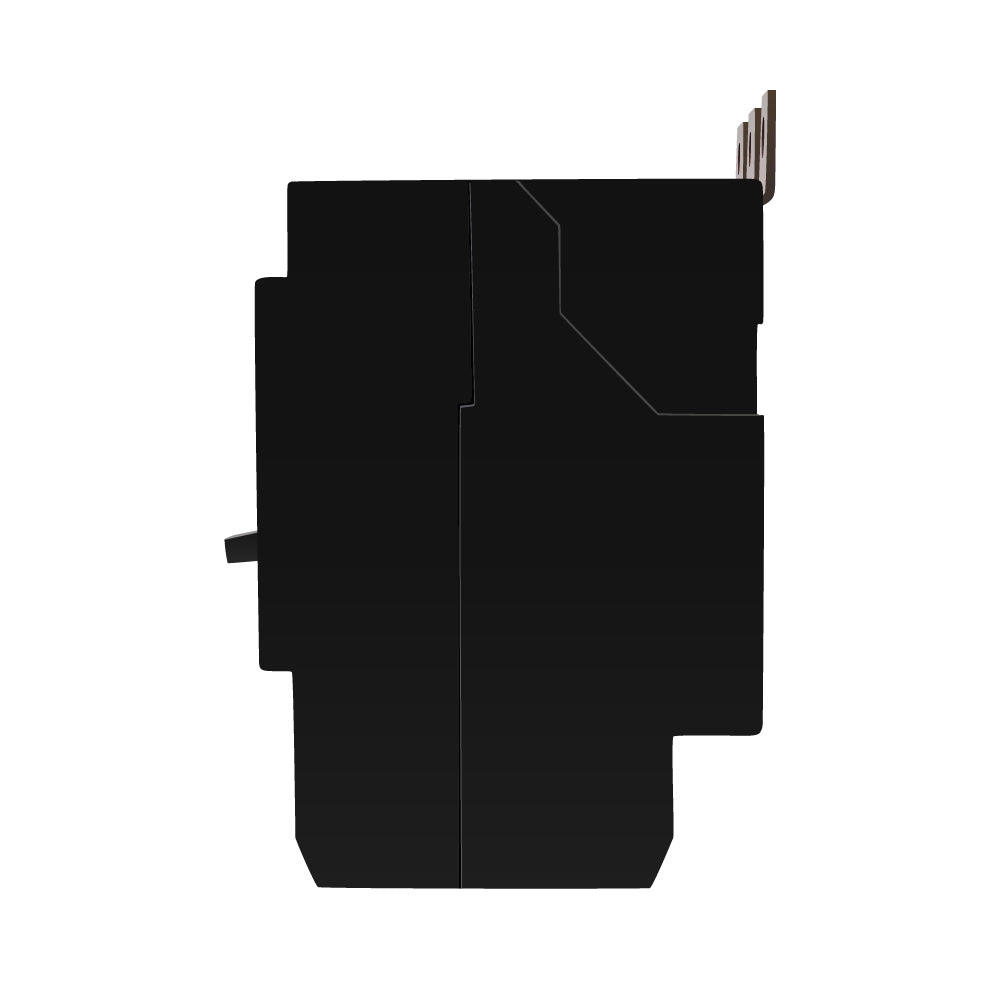

Eaton GHB3070 Molded Case Circuit Breaker – 70A – 3-Pole – 480Y/277V AC – 14kAIC – Bolt-On – GHB Series

The Eaton GHB3070 is a 70A, 3-pole molded case circuit breaker designed for compatible Eaton Pow-R-Line panelboards and commercial, industrial, and electrical distribution applications. It features a fixed thermal-magnetic trip unit for overload and short-circuit protection.

The GHB3070 is rated for 480Y/277V AC with an interrupting capacity of 14kAIC at 480Y/277V AC and 65kAIC at 240V AC. It uses a bolt-on connection and is also rated for 125/250V DC applications.

Specifications:

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Type: GHB
• Catalog No.: GHB3070
• Product Family: GHB Series / G-Frame
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 480Y/277V AC
• DC Voltage Rating: 125/250V DC
• Frequency Rating: 50/60 Hz
• Trip Unit: Fixed Thermal-Magnetic
• Interrupting Rating: 14kAIC at 480Y/277V AC; 65kAIC at 240V AC
• Mounting Type: Bolt-On
• Connection: Bolt-On
• Wire Range: #10–1/0 AWG Copper/Aluminum
• Application: Motor Branch Circuits, Industrial Panelboards, HVAC Protection, and Electrical Distribution
• UPC: 786679024041

Part Numbers & Identification:

• Manufacturer Part Number (MPN): GHB3070
• Catalog Number: GHB3070
• Product Family: Eaton GHB Series
• Frame: G-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: GHB3070
• Breaker Configuration: 3-Pole, 70A
• upc:786679911310

Compatibility:

Designed for use with compatible Eaton Pow-R-Line panelboards and electrical distribution equipment accepting GHB Series bolt-on molded case circuit breakers. The GHB3070 is configured for 3-phase, 70A applications and provides thermal-magnetic protection for compatible AC and DC systems.

Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, interrupting rating, pole configuration, mounting arrangement, and conductor requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• 70A Rating
• 3-Pole / 3-Phase
• 480Y/277V AC Rated
• 125/250V DC Rated
• 14kAIC at 480Y/277V AC
• 65kAIC at 240V AC
• Fixed Thermal-Magnetic Protection
• Bolt-On Mounting
• Genuine Eaton Product
