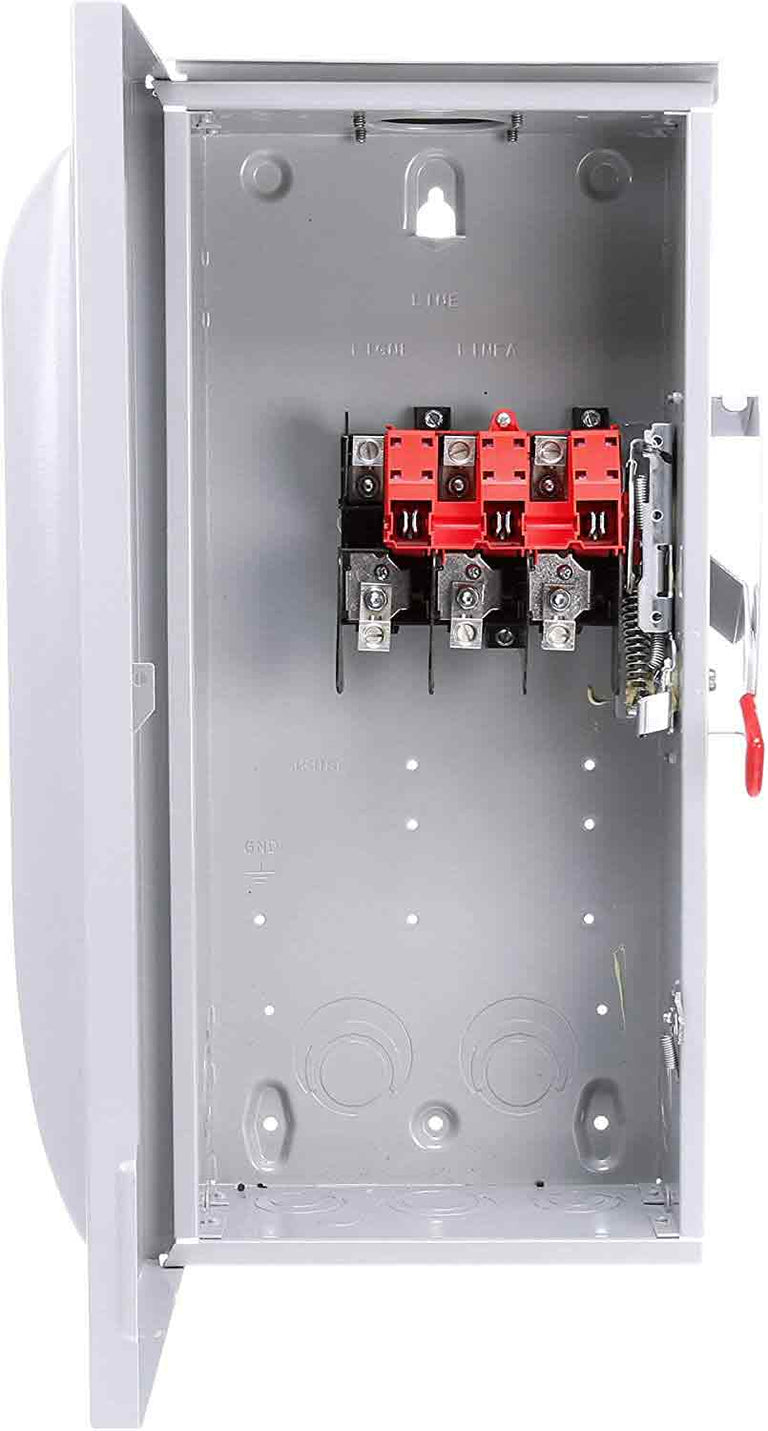

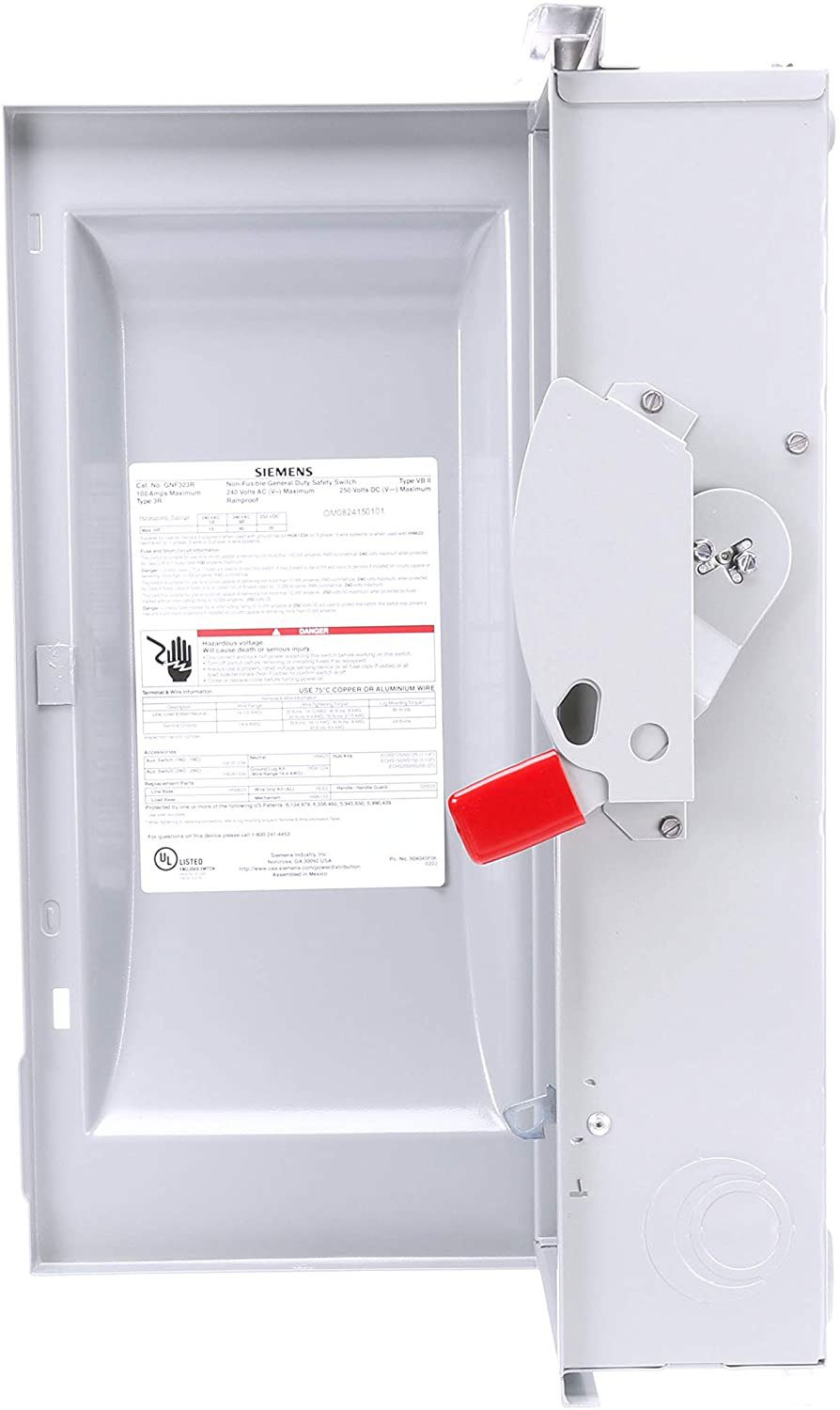

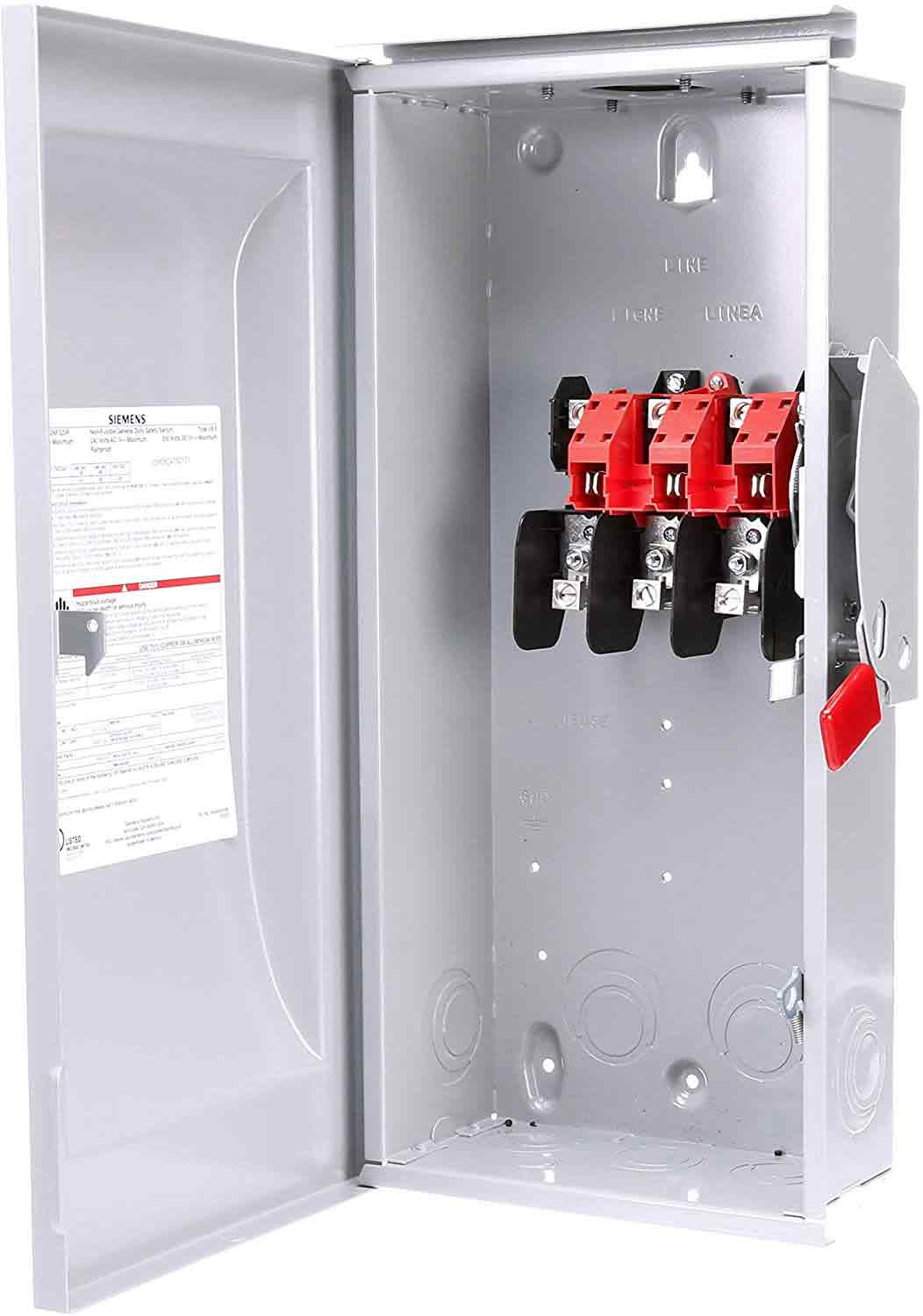

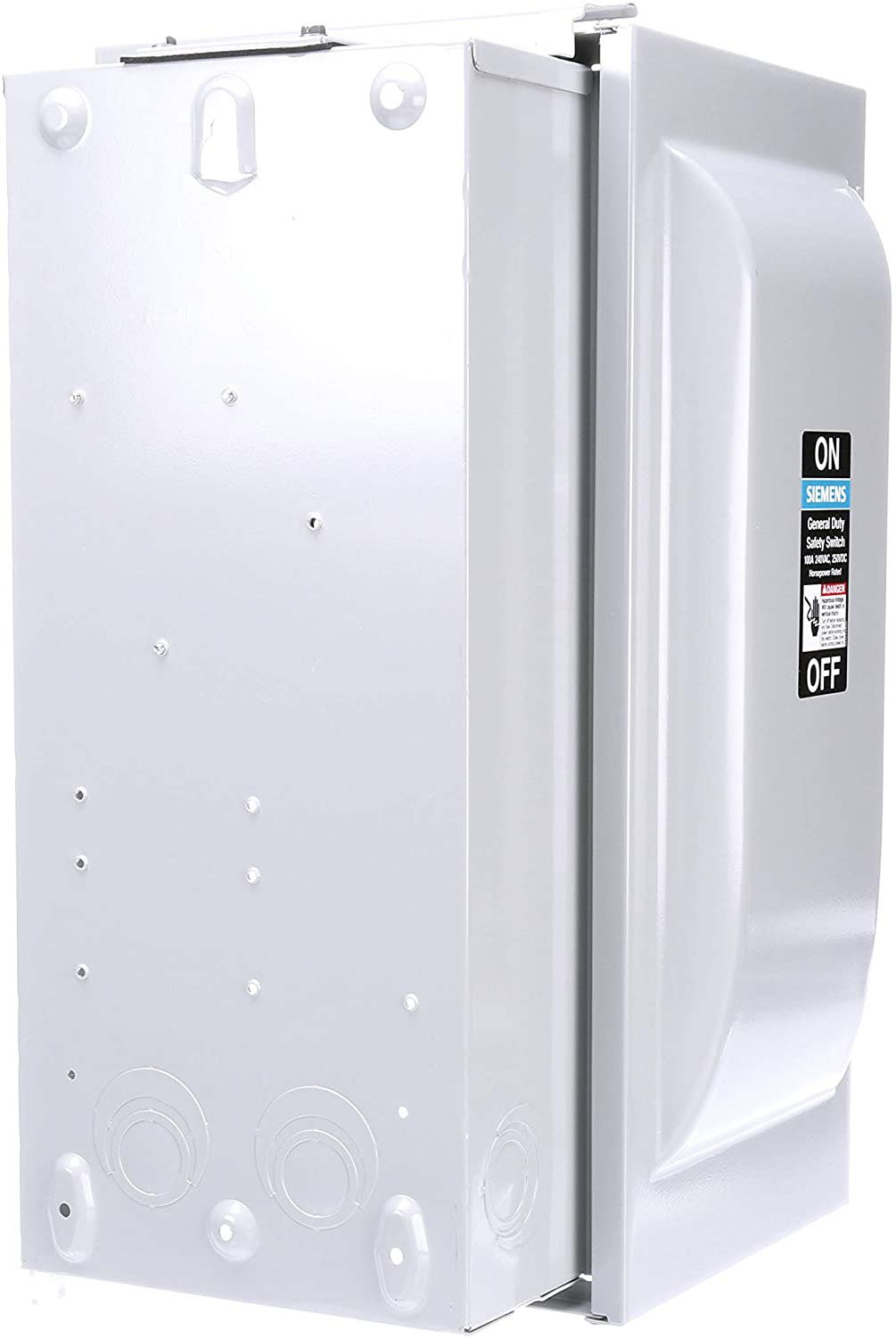

Siemens GNF323R Disconnect Safety Switch – 100A – 3-Pole / 3-Phase – 240V – 100kA @ 240V – Non-Fusible – VBII Series

GNF323R - Siemens 100 Amp 3 Pole 240 Volt Disconnect Safety Switches

Siemens, disconnect, general duty safety disconnect switches, type GNF, 3PH, 3P, 3 wire, 240V, 100A, 100kA@240V, nema 3R, non-fusible type, Single style, suitable for outdoor use

• Manufacturer

  The Siemens GNF323R is a 100A, 3-pole, 3-phase general-duty disconnect safety switch from the Siemens VBII Series. It is a non-fusible disconnect switch designed for compatible electrical disconnect and safety-switch applications.

  The GNF323R is rated for 240V and provides a 100kA interrupting rating at 240V. It features a 3-wire configuration, NEMA 3R enclosure, and single-style construction, making it suitable for outdoor use.

  Specifications:

  • Manufacturer: Siemens
  • Product Type: Disconnect Safety Switch
  • Product Family: VBII Series
  • Series: VBII
  • Type: GNF
  • Catalog No.: GNF323R
  • Current Rating: 100A
  • Number of Poles: 3-Pole
  • Phase: 3-Phase
  • Voltage Rating: 240V
  • Wire Configuration: 3-Wire
  • AIC / Interrupting Rating: 100kA @ 240V
  • Switch Type: Non-Fusible
  • Style: Single
  • Enclosure Rating: NEMA 3R
  • Outdoor Use: Suitable for Outdoor Use
  • Application: General-Duty Electrical Disconnect and Safety Switching

  Part Numbers & Identification:

  • Manufacturer Part Number (MPN): GNF323R
  • Catalog Number: GNF323R
  • Model: GNF323R
  • Product Family: Siemens VBII Series
  • Series: VBII
  • Type: GNF
  • Brand: Siemens
  • Manufacturer: Siemens
  • Product Type: Disconnect Safety Switch
  • Configuration: 3-Pole, 100A
  • Switch Configuration: Non-Fusible, 3-Wire, Single Style
  • UPC:783643150027

  Compatibility:

  Designed for use with compatible Siemens VBII Series general-duty disconnect safety-switch applications. The GNF323R provides a 100A, 3-pole disconnect function at 240V with a 100kA interrupting rating at 240V.

  Its NEMA 3R enclosure and outdoor-use designation make it suitable for applicable outdoor installations. Always verify the specific electrical equipment model, approved switch type, system voltage, pole and wire configuration, enclosure requirements, available fault current, mounting arrangement, conductor requirements, and installation specifications before installation.

  Certifications:

  • No specific certification information provided
  : Siemens
• Type: GFN
• Family: VBII Series
• Disconnect Safety Switches

Interrupting Rating

• AIC Rating: 100kA@240V
