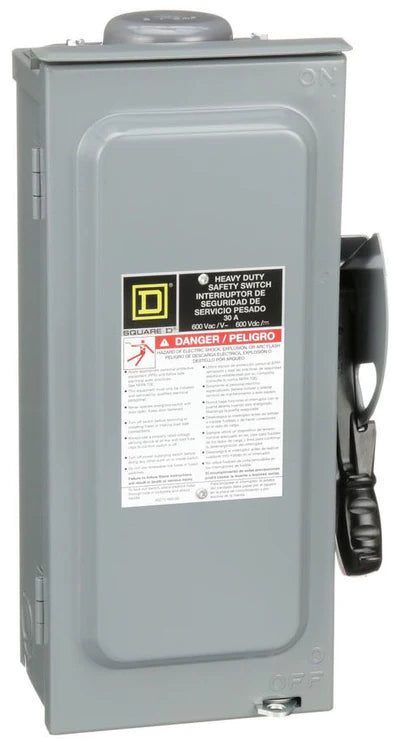

H361NRB Square D Series F Disconnect 600V 30A Fusible Switch
Couldn't load pickup availability
Ask an expert
Description
H361NRB
The Square D H361NRB is a 3 phase 3 pole 600 Volt 30 Amp H type Disconnect Switch. This switch has a Nema rating of 3R and an AIC rating of 200kA@600V. The H361NRB is a single switch configuration and uses class R, J, H, and K fuses. This model also includes a Neutral and Bolt on hub provision.
Specifications
- Part Number: H361NRB
- Manufacturer : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R
- Compatible Frames : ED
Product Data
- UPC : 785901122487
- GTIN : 00785901122487
- Dimensions : Depth 4.86 in (123.44 mm) Width 7.55 in (191.77 mm) Height 14.88 in (377.95 mm)
- Weight : 9.82 lb
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating 30 Amp - 3 Pole - 600 Volt
