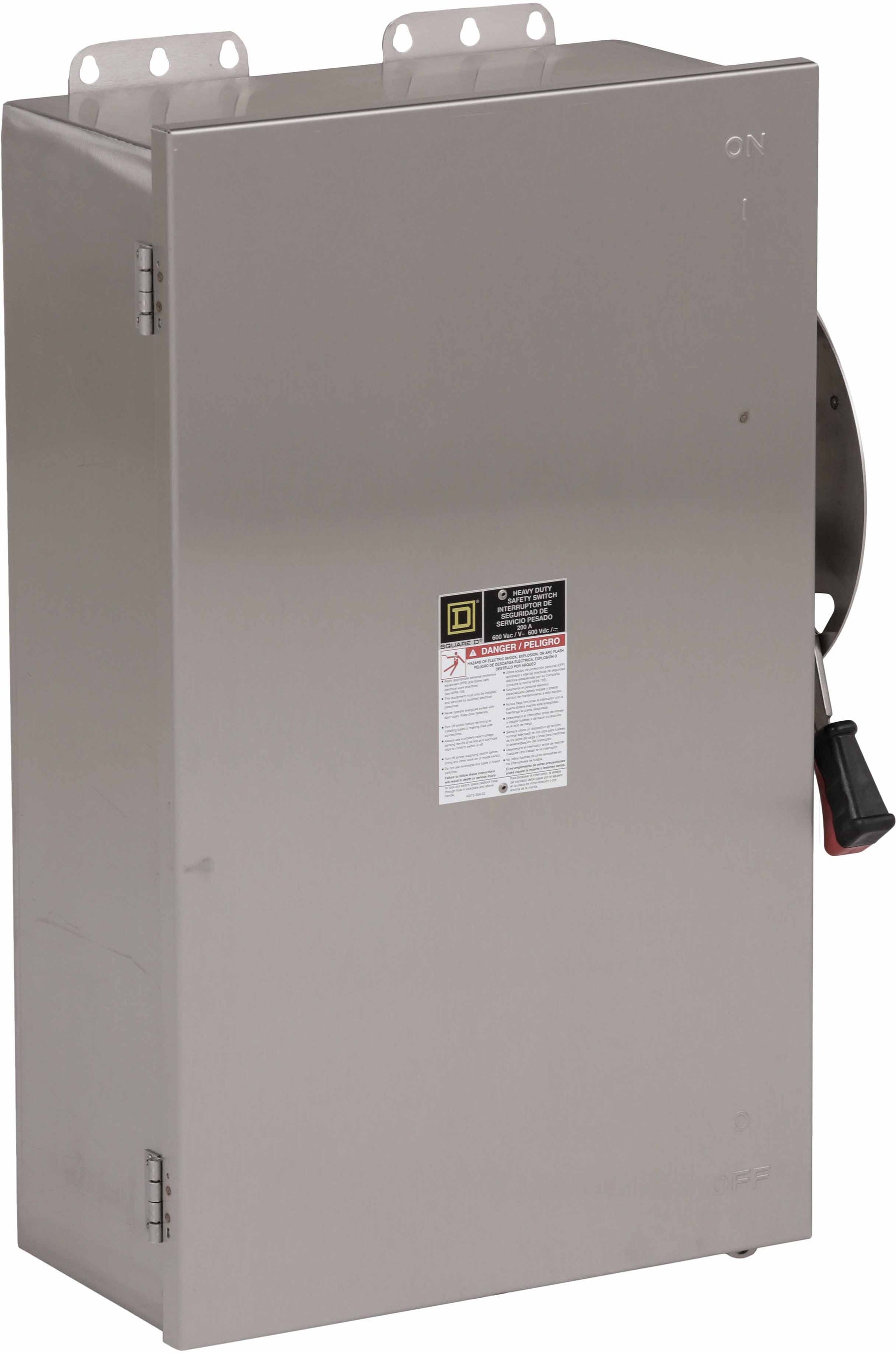

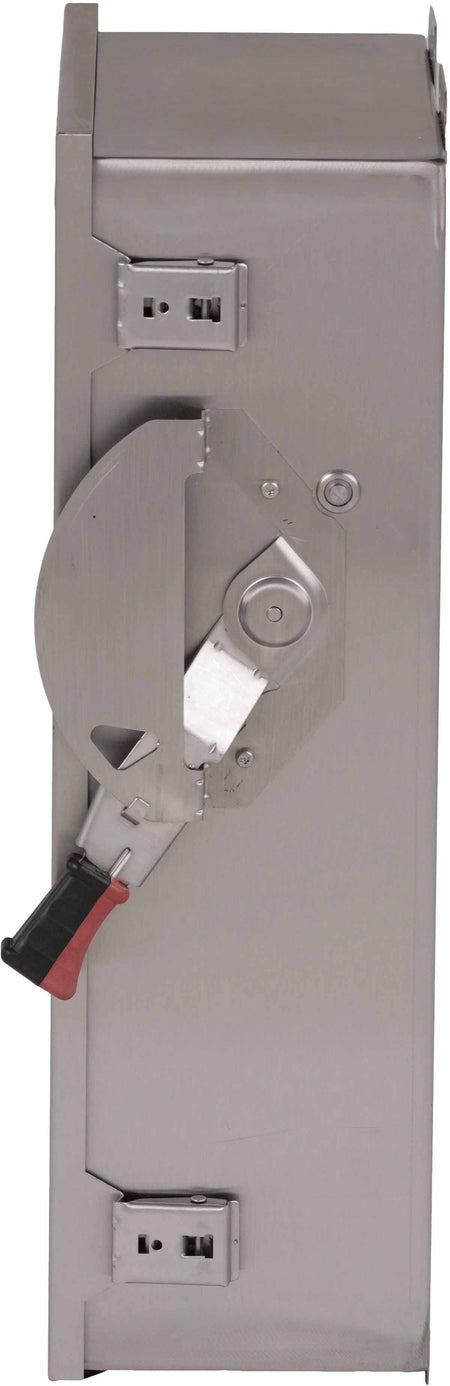

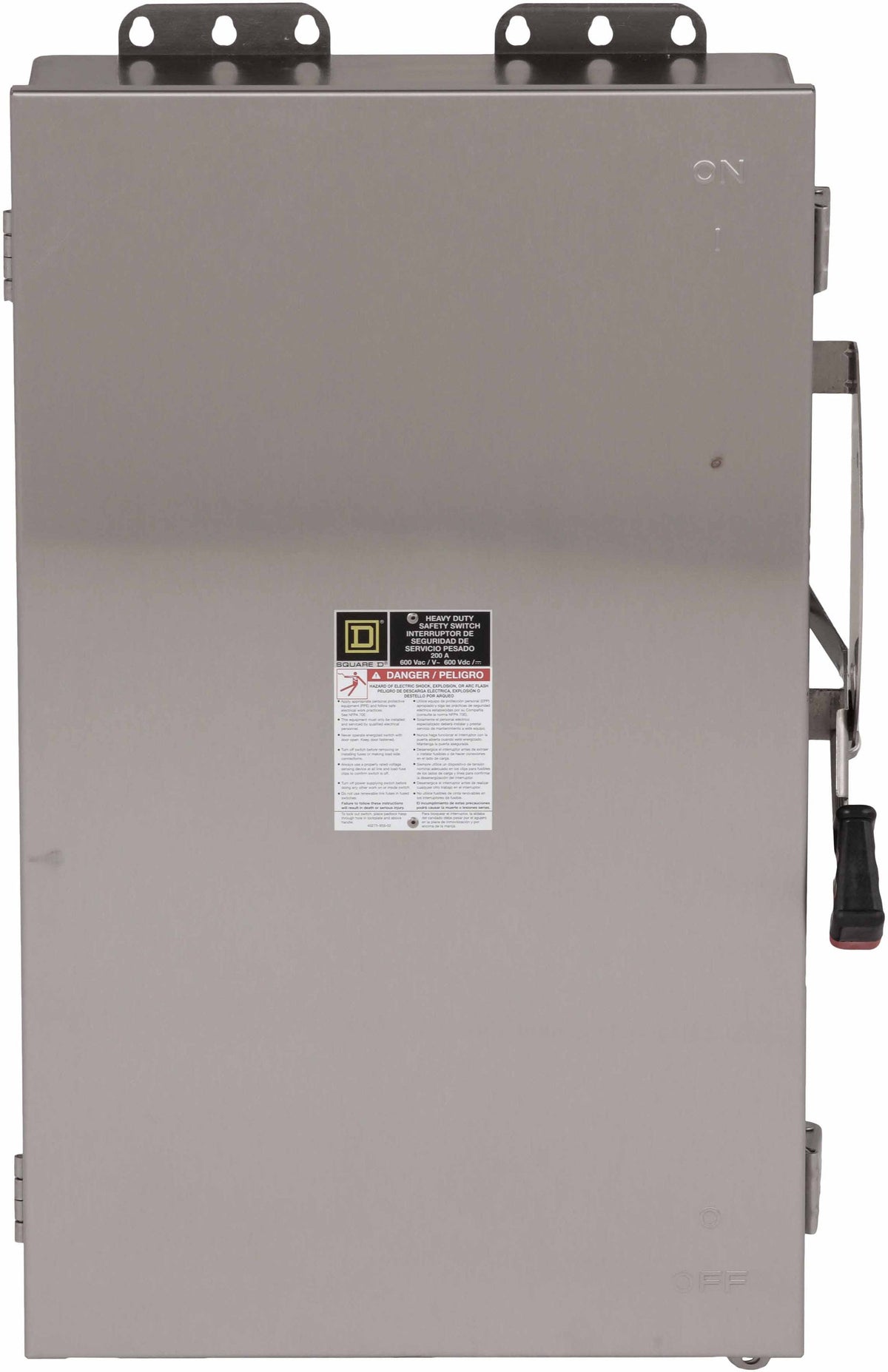

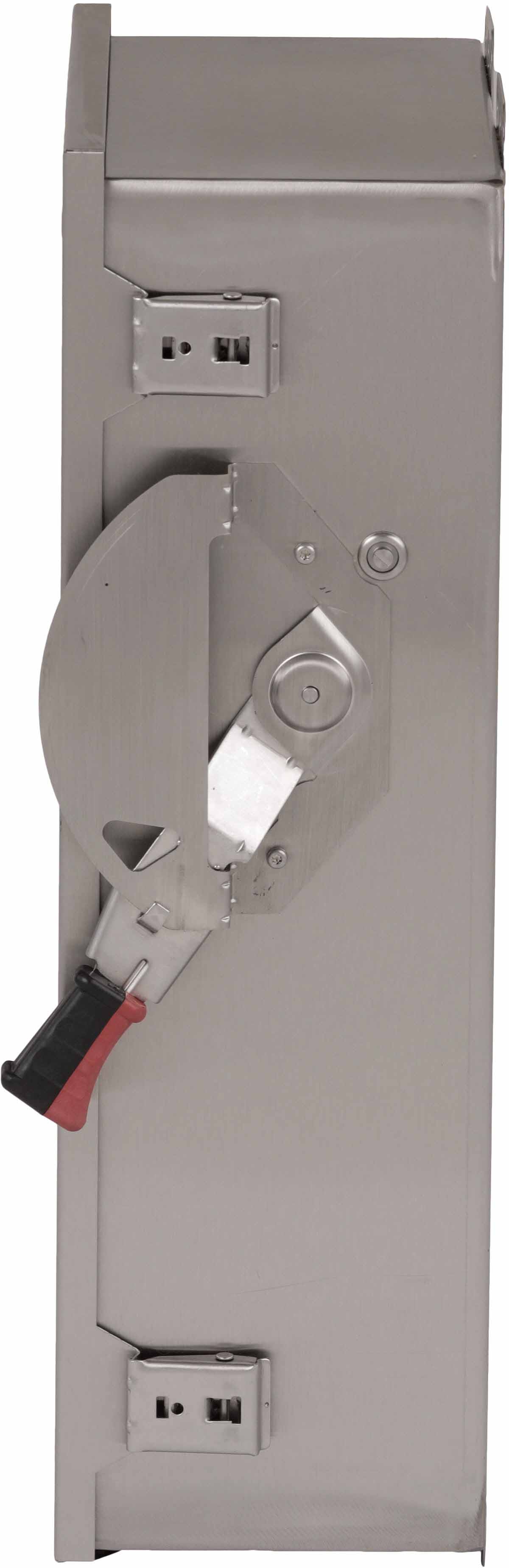

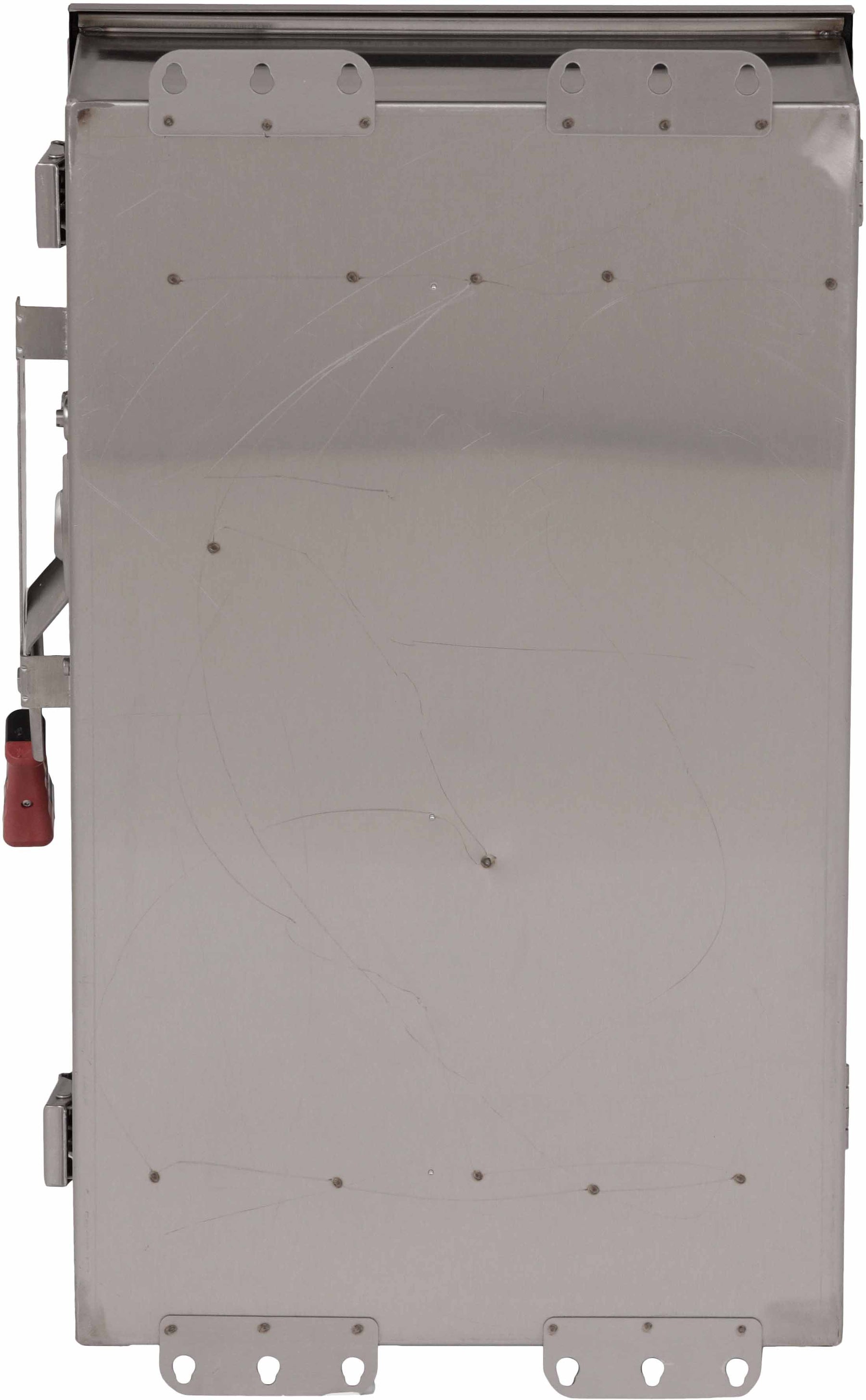

Square D H364DS Disconnect and Safety Switch – 200A – 3-Pole / 3-Phase – 600V – Fusible – NEMA 4/4X – Heavy-Duty Safety Switch

The Square D H364DS is a 200A, 3-pole, 3-phase heavy-duty fusible safety disconnect switch designed for compatible electrical distribution and disconnect applications. It is rated for 600V and uses a 3-wire configuration.

The switch features a NEMA 4/4X stainless-steel enclosure and is designed to provide rainproof, dust-tight, and corrosion-resistant protection for suitable outdoor installations. It accepts Class R fuses and is specified as a single-style disconnect safety switch.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Disconnect and Safety Switch
• Product Family: Heavy-Duty Safety Disconnect Switches
• Catalog No.: H364DS
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 3-Wire
• Voltage Rating: 600V
• Switch Type: Fusible
• Fuse Class: Class R
• Enclosure Rating: NEMA 4/4X
• Enclosure Material: Stainless Steel
• Configuration: Single Style
• Environmental Protection: Rainproof, Dust-Tight, and Corrosion Resistant
• Outdoor Use: Suitable for Outdoor Use
• Application: Disconnect and Safety Switching

Part Numbers & Identification:

• Manufacturer Part Number (MPN): H364DS
• Catalog Number: H364DS
• Model: H364DS
• Product Family: Square D Heavy-Duty Safety Disconnect Switches
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Disconnect and Safety Switch
• Configuration: 3-Pole, 200A
• Switch Type: Fusible
• Fuse Type: Class R
• UPC:785901023753

Compatibility:

Designed for compatible Square D heavy-duty safety disconnect switch applications requiring a 200A, 3-pole, 600V fusible disconnect. The H364DS accepts Class R fuses and uses a NEMA 4/4X stainless-steel enclosure for applications requiring rainproof, dust-tight, and corrosion-resistant protection.

Always verify the specific electrical equipment, system voltage, fuse requirements, enclosure requirements, conductor configuration, installation environment, and applicable installation requirements before installation.

Certifications:

• NEMA 4/4X Enclosure
• Stainless-Steel Enclosure
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• Fusible Type
• Accepts Class R Fuses
• Rainproof
• Dust-Tight
• Corrosion Resistant
• Suitable for Outdoor Use
• Heavy-Duty Safety Disconnect Switch
