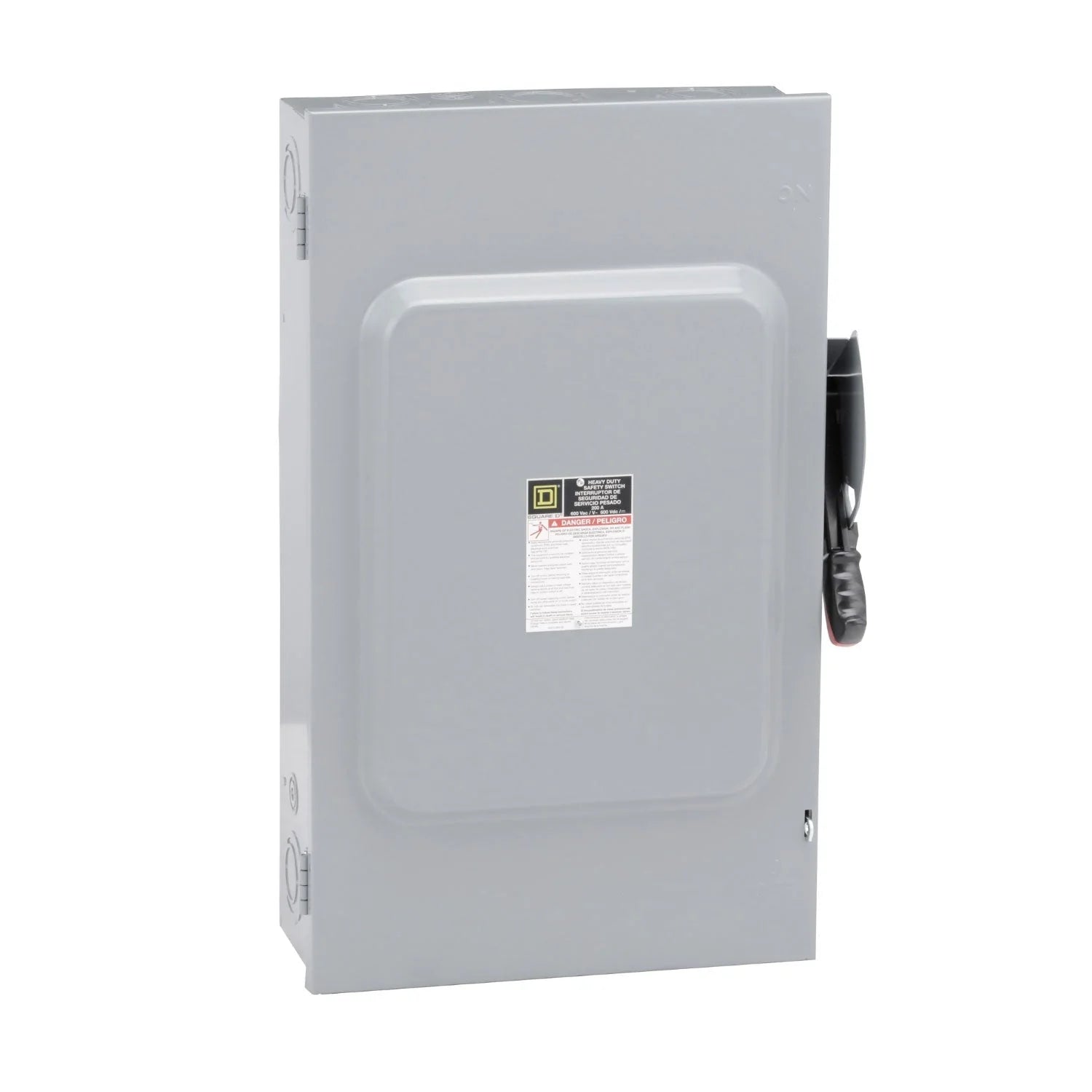

Square D H364N Disconnect and Safety Switch – 200A – 3-Pole / 3-Phase – 600V – 200kA @ 600V – Fusible – Series F

The Square D H364N is a 200A, 3-pole, 3-phase heavy-duty fusible safety disconnect switch from the Square D Series F, Type H family. It is designed for compatible electrical distribution and disconnect applications.

The H364N is rated for 600V and provides a 200kA interrupting rating at 600V. It uses a 4-wire configuration, accepts Class R fuses, and features a NEMA 1 enclosure for suitable indoor applications. The switch is specified as a single-style disconnect and is suitable for indoor use.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Disconnect and Safety Switch
• Product Family: Series F
• Type: H
• Catalog No.: H364N
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 4-Wire
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 600V
• Switch Type: Fusible
• Fuse Class: Class R
• Enclosure Rating: NEMA 1
• Configuration: Single Style
• Indoor / Outdoor Use: Suitable for Indoor Use
• Application: Disconnect and Safety Switching
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): H364N
• Catalog Number: H364N
• Model: H364N
• Product Family: Square D Series F Disconnect Switches
• Series: Series F
• Type: H
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Heavy-Duty Safety Disconnect Switch
• Configuration: 3-Pole, 200A
• Switch Type: Fusible
• Fuse Type: Class R
• UPC:785901482338

Compatibility:

Designed for use with compatible Square D Series F, Type H heavy-duty safety disconnect switch applications requiring a 200A, 3-pole, 600V fusible disconnect. The H364N accepts Class R fuses and uses a NEMA 1 enclosure for suitable indoor installations.

The switch uses a 4-wire configuration and is specified as a single-style disconnect. Always verify the specific electrical equipment, system voltage, fuse requirements, conductor configuration, enclosure requirements, installation environment, and applicable installation requirements before installation.

Certifications:

• UL Listed
• Series F / Type H
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 600V Interrupting Rating
• Fusible Type
• Accepts Class R Fuses
• NEMA 1 Enclosure
• Suitable for Indoor Use
• Heavy-Duty Safety Disconnect Switch
