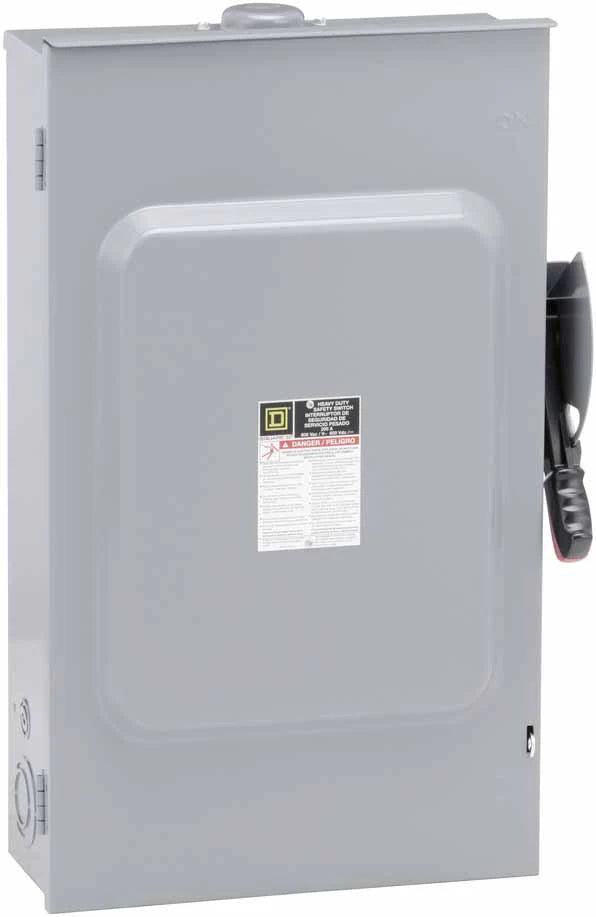

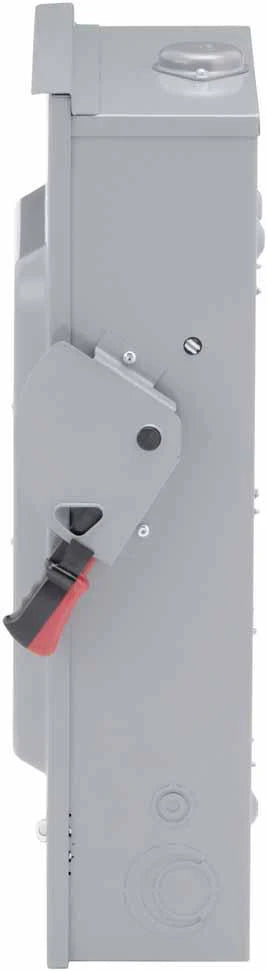

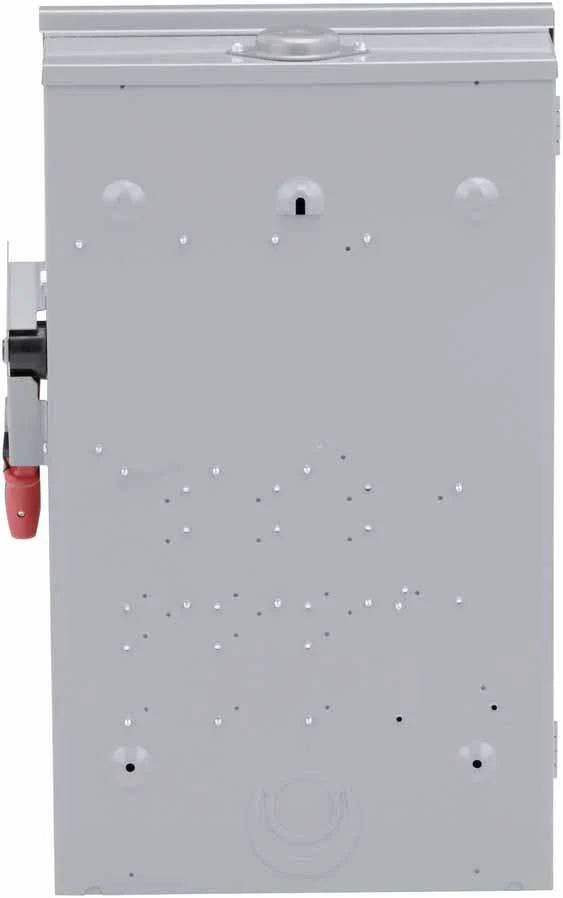

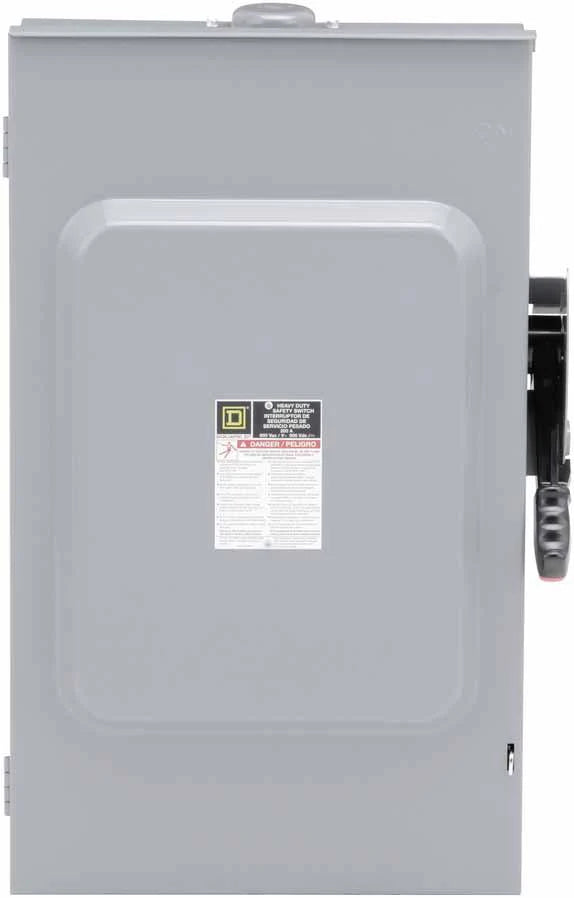

Square D H364RB Disconnect and Safety Switch – 200A – 3-Pole / 3-Phase – 600V –Outdoor NEMA 3R – H Series

The Square D H364RB is a 200A, 3-pole, 3-phase heavy-duty fusible disconnect and safety switch from the Square D H Series. It is designed for compatible electrical disconnect and safety-switch applications.

The H364RB is rated for 600V, uses a 4-wire configuration, and accepts Class R fuses. It features a NEMA 3R enclosure and is rainproof and suitable for outdoor use. The switch is specified as a single-style disconnect safety switch.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Disconnect and Safety Switch
• Product Family: Heavy-Duty Safety Disconnect Switches
• Series: H
• Catalog No.: H364RB
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 4-Wire
• Voltage Rating: 600V
• Switch Type: Fusible
• Fuse Class: Class R
• Enclosure Rating: NEMA 3R
• Configuration: Single Style
• Environmental Protection: Rainproof
• Outdoor Use: Suitable for Outdoor Use
• Application: Disconnect and Safety Switching
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): H364RB
• Catalog Number: H364RB
• Model: H364RB
• Product Family: Square D Heavy-Duty Safety Disconnect Switches
• Series: H
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Disconnect and Safety Switch
• Configuration: 3-Pole, 200A
• Switch Type: Fusible
• Fuse Type: Class R
• UPC:785901482710

Compatibility:

Designed for use with compatible Square D / Schneider Electric heavy-duty safety disconnect switch applications requiring a 200A, 3-pole, 600V fusible disconnect. The H364RB accepts Class R fuses and uses a NEMA 3R enclosure for rainproof outdoor applications.

Always verify the specific electrical equipment, system voltage, pole and wire configuration, fuse requirements, enclosure requirements, installation environment, and applicable installation specifications before installation.

Certifications:

• NEMA 3R Enclosure
• 200A Rated
• 3-Pole / 3-Phase
• 4-Wire Configuration
• 600V Rated
• Fusible Type
• Accepts Class R Fuses
• Rainproof
• Suitable for Outdoor Use
• Heavy-Duty Safety Disconnect Switch
