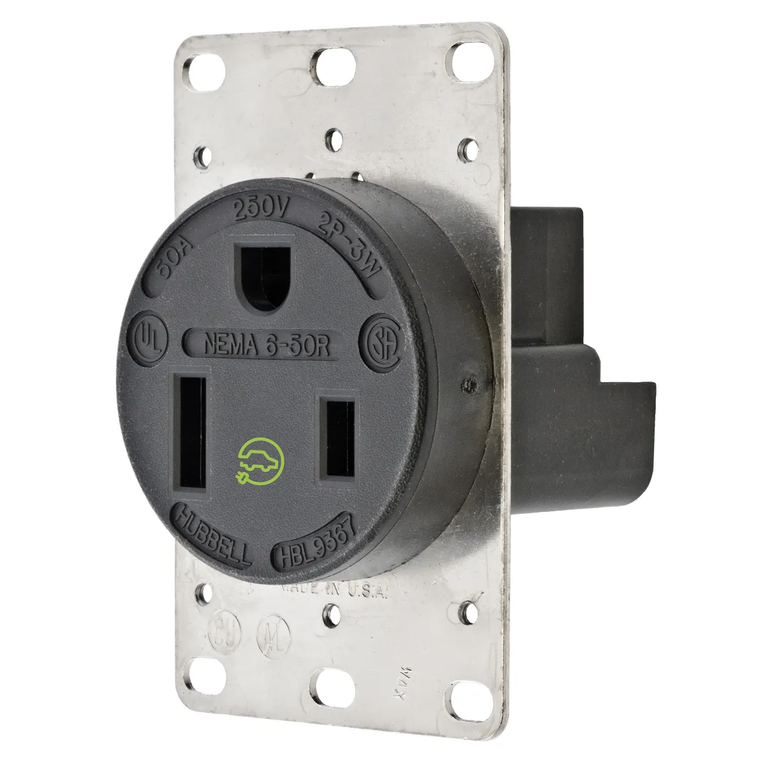

Hubbell HBL9367 50A 2-Pole 250V NEMA 6-50R Industrial Grade Single Receptacle

Product Description

The HBL9367, 2-Pole, 50 Amp, 250 Volt industrial-grade receptacle from Hubbell is designed for heavy-duty commercial and industrial power applications. Featuring a NEMA 6-50R configuration, this flush-mount receptacle provides a reliable connection for welders, industrial machinery, generators, EV charging equipment, and other high-current 250V loads. Its durable thermoplastic construction and heavy-duty brass contacts ensure long service life in demanding environments.

Key Features

• Catalog Number: HBL9367
• 50 Amp Rating
• 250 Volt AC
• NEMA 6-50R Configuration
• 2-Pole, 3-Wire Grounding
• Industrial Grade Design
• Flush Mount Receptacle
• Heavy-Duty Brass Contacts
• Reinforced Thermoplastic Housing
• Back and Side Wire Terminations
• Accepts Copper Conductors #12 AWG to #4 AWG
• UL Listed
• CSA Certified
• Black Finish
• Made in USA

Technical Specifications

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: HBL9367
• Device Type: Straight Blade Receptacle
• NEMA Configuration: 6-50R
• Amperage: 50A
• Voltage Rating: 250VAC
• Poles: 2
• Wire Configuration: 3-Wire Grounding
• Phase: Single Phase
• Mounting Type: Flush Mount
• Wiring Method: Back and Side Wired
• Terminal Type: Screw Terminals
• Housing Material: Reinforced Thermoplastic Polyester
• Contact Material: Brass
• Color: Black
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to 75°C
• Standards: UL 498, CSA Certified, NEMA WD-6

Product Data

• Manufacturer: Hubbell Wiring Device-Kellems
• Catalog Number: HBL9367
• UPC: 783585015279
• GTIN: 00783585015279
• Current Rating: 50A
• Voltage Rating: 250VAC
• NEMA Configuration: 6-50R
• Pole/Wire Configuration: 2-Pole, 3-Wire Grounding
• Dimensions: 3.28" H × 2.25" W × 2.23" D
• Country of Origin: USA
• Condition: New
• Application: Industrial, Commercial, Welding Equipment, EV Charging, Power Distribution Equipment
