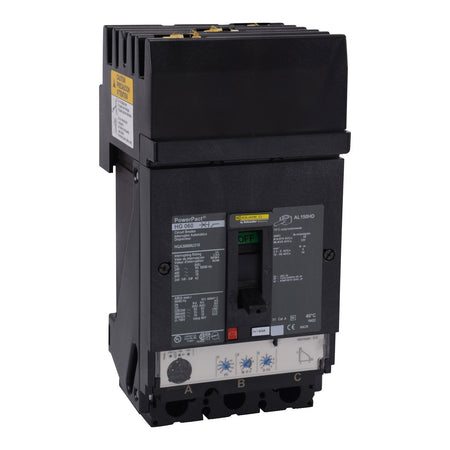

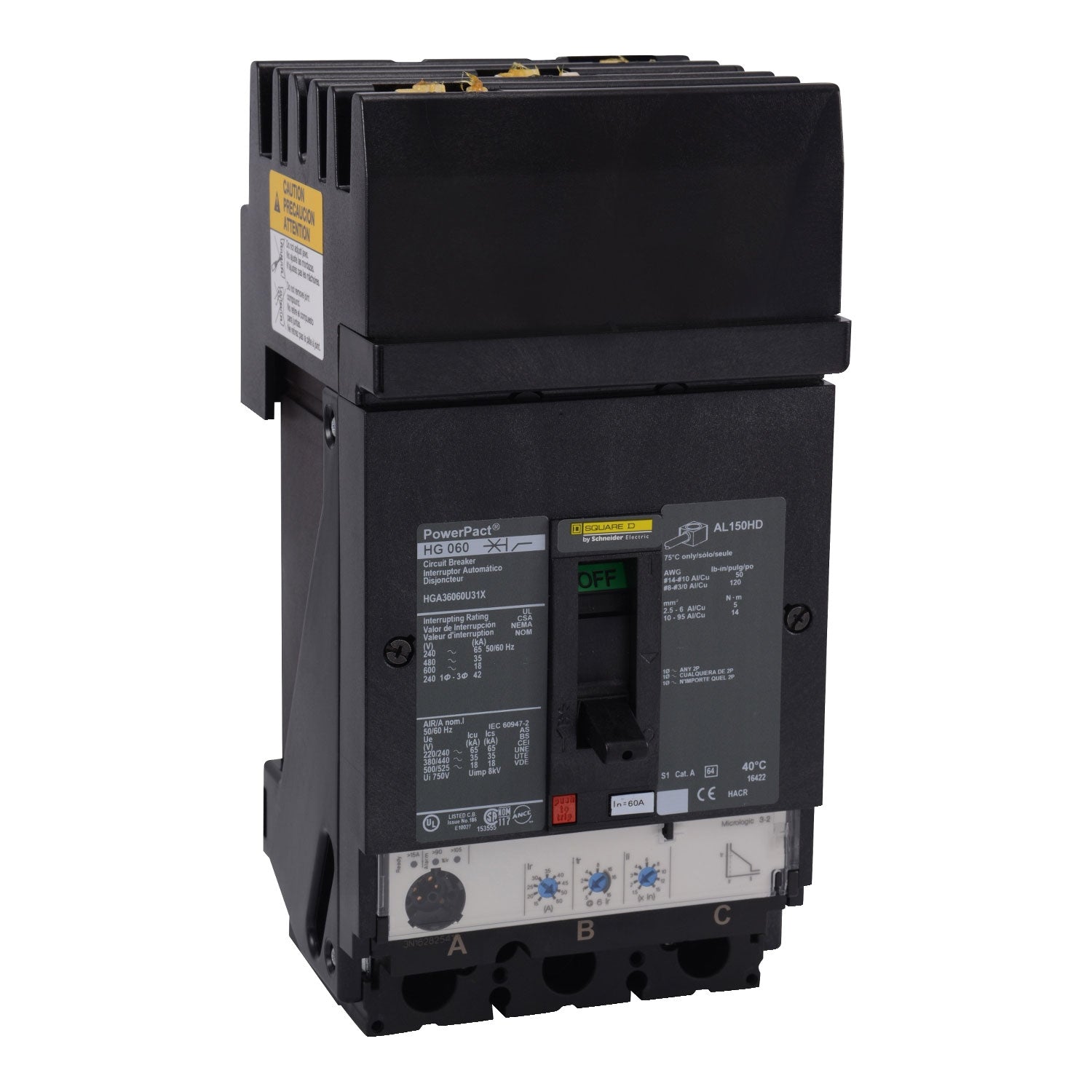

Square D HDA36060U33X Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600V – 18kA @ 480V – I-Line Style Plug-In – PowerPact HDA Series

The Square D HDA36060U33X is a 60A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type HDA Series. It features a solid-state electronic MicroLogic Standard 3.2S trip unit with Long-Time and Short-Time protection (LSI) and a non-interchangeable trip.

The HDA36060U33X is rated for 600V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features an ABC phase connection, I-Line style plug-in connection, and is suitable for reverse-fed applications. The breaker can also be used for 2-pole applications and is supplied as a complete breaker. It is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HDA
• Type: HDA
• Catalog No.: HDA36060U33X
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard 3.2S
• Trip Functions: Long-Time and Short-Time (LSI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• 2-Pole Application: Suitable for 2-Pole Applications
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HDA36060U33X
• Catalog Number: HDA36060U33X
• Model: HDA36060U33X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HDA
• Type: HDA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Trip Unit: MicroLogic Standard 3.2S
• Trip Configuration: Non-Interchangeable LSI
• UPC:785901674306

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HDA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The HDA36060U33X provides 60A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features an ABC phase connection, I-Line style plug-in connection, MicroLogic Standard 3.2S non-interchangeable trip unit, and LSI protection. It is suitable for reverse-fed applications and can be used for 2-pole applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, phase connection, trip-unit compatibility, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HDA Series
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Solid-State Electronic Protection
• MicroLogic Standard 3.2S Trip Unit
• Long-Time and Short-Time (LSI) Protection
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
• Suitable for 2-Pole Applications
• Complete Breaker
