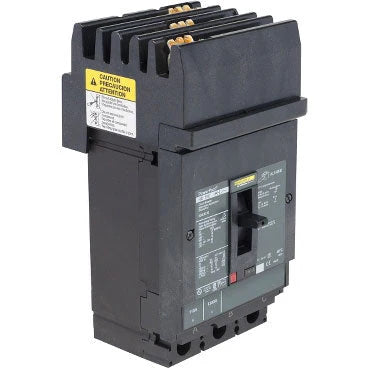

Square D HDA36150U31X 150 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 14 kA@600 V – I-Line – PowerPact H-Frame

The Square D HDA36150U31X is a 150 Amp, 3-pole molded case circuit breaker from Schneider Electric's Square D PowerPact H-Frame Series. It features a Micrologic Standard electronic trip unit with 3.2 LI (Long-Time and Instantaneous) protection functions and provides a 14 kA interrupting rating at 600 V AC. The breaker uses dual-break rotating contacts to help reduce peak current during short-circuit faults and includes an integral push-to-trip button. It has I-Line terminations on the line side and mechanical lug terminals on the load side.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact H-Frame
• Catalog Number / MPN: HDA36150U31X
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase Connection: ABC
• Voltage: 600 V AC
• Interrupting Rating: 14 kA @ 600 V AC
• Trip Type: Electronic
• Trip Unit: Micrologic Standard 3.2
• Trip Functions: LI – Long-Time and Instantaneous
• Continuous Current Rating: 80%
• Connection / Mounting: I-Line
• Line-Side Terminations: I-Line
• Load-Side Terminals: Mechanical Lugs
• Trip Button: Integral Push-to-Trip

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HDA36150U31X
• Series: PowerPact H-Frame
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic Standard 3.2
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line
• Terminal Configuration: I-Line Line Side / Mechanical Lug Load Side
• UPC:785901324409

Compatibility

The Square D HDA36150U31X is designed for compatible Square D PowerPact H-Frame I-Line panelboards and electrical distribution equipment.

Certifications

• UL Compliant
• CSA Compliant
• NOM Compliant
• IEC Compliant
• CE Marked
