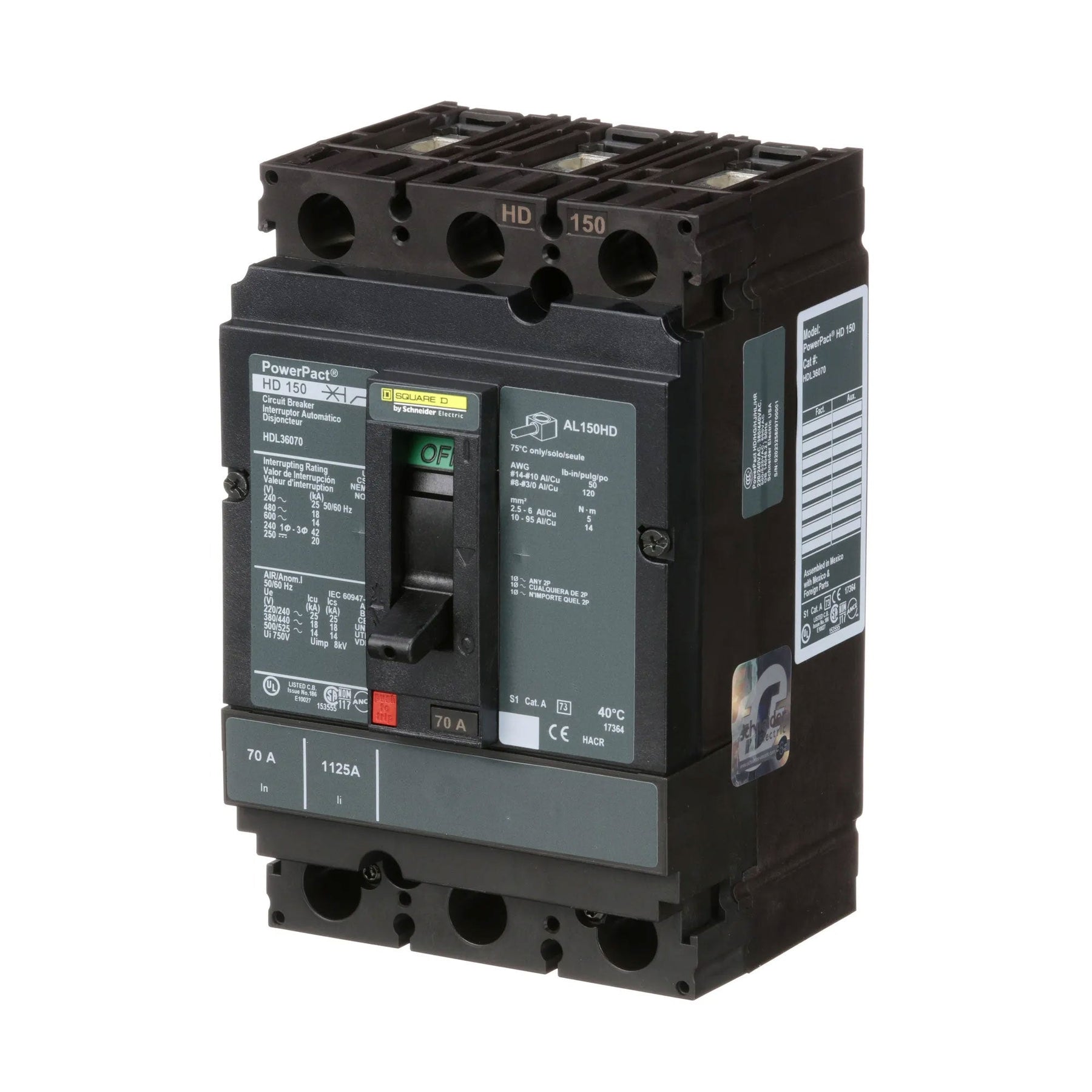

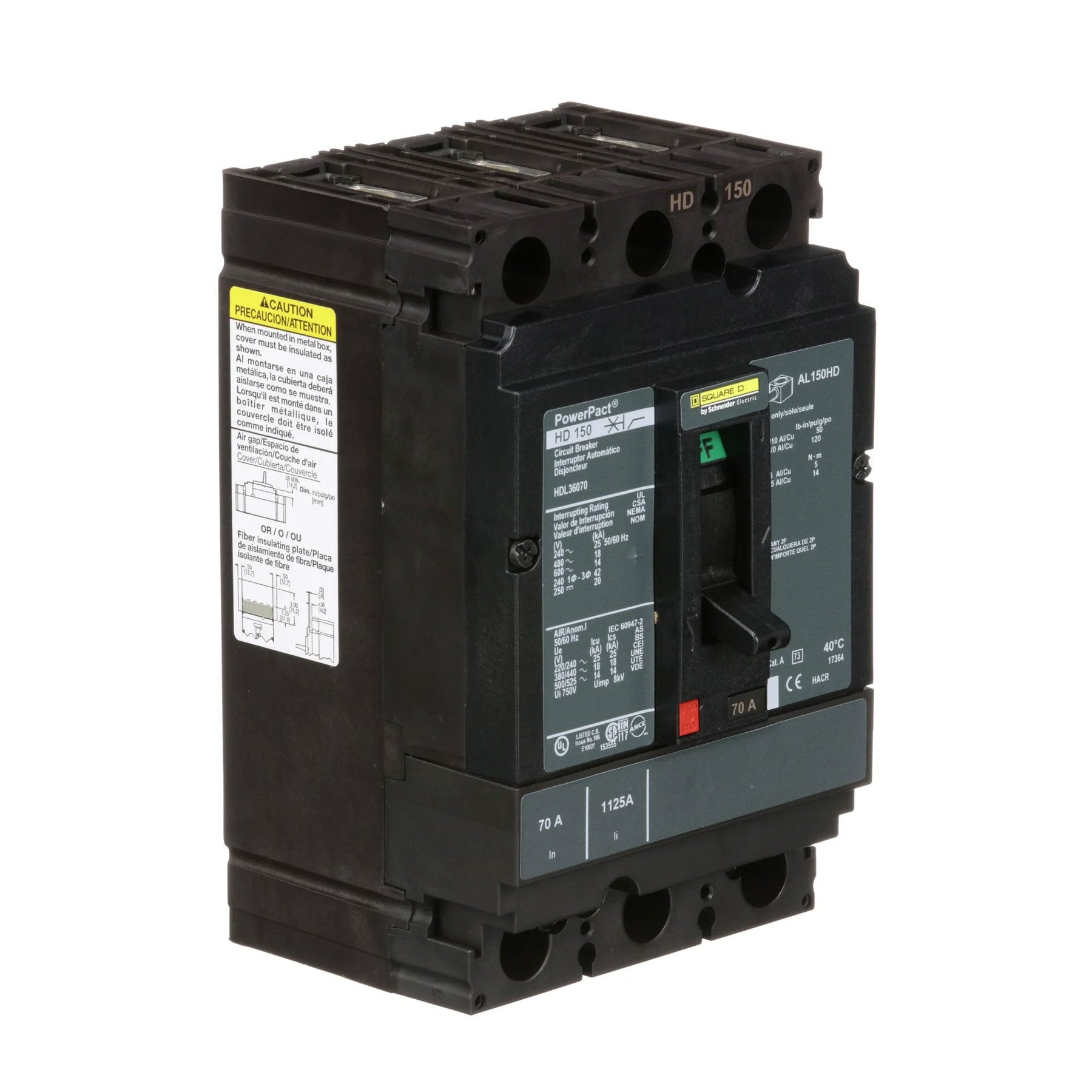

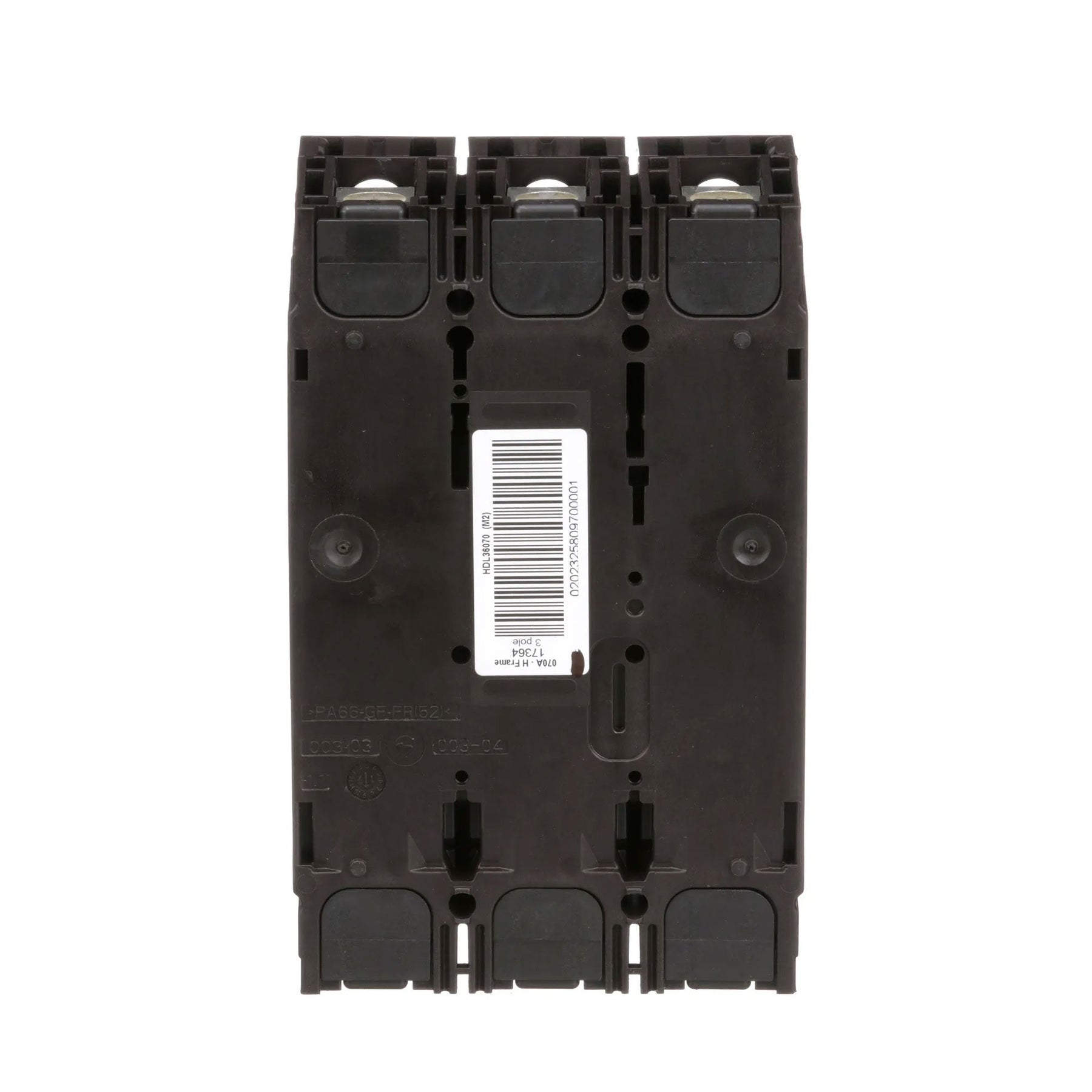

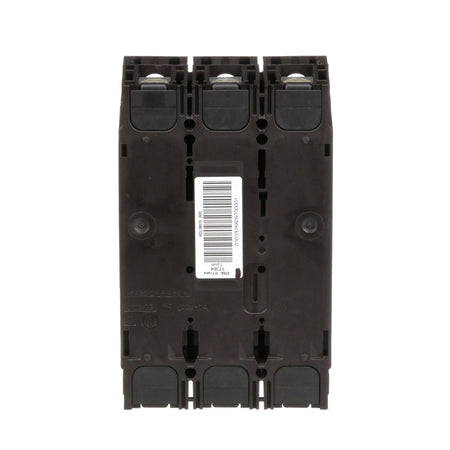

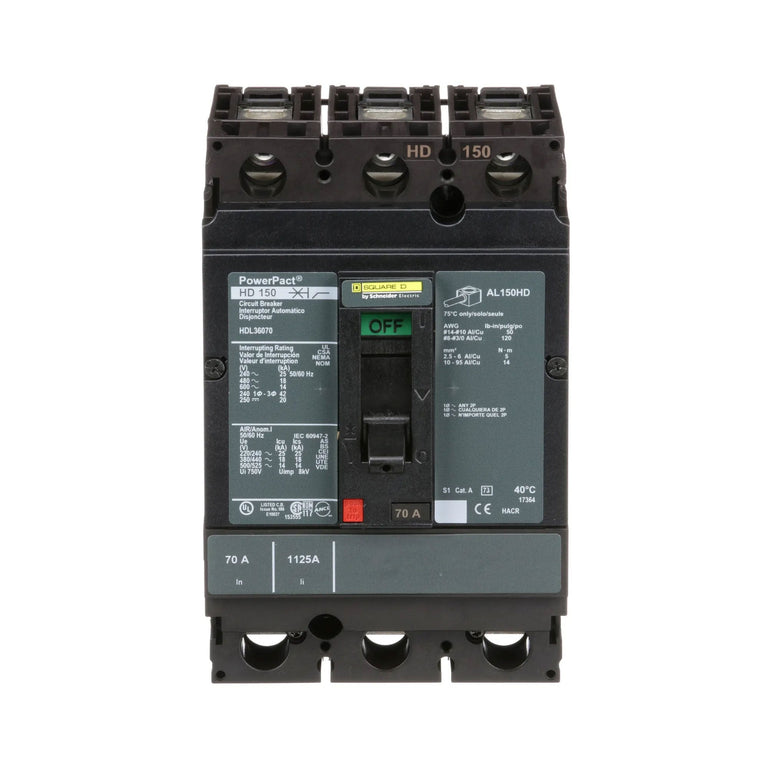

Square D HDL36070 Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 600V – 18kA @ 480V – Feed-Thru – PowerPact HDL Series

The Square D HDL36070 is a 70A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type HDL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HDL36070 is rated for 600V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and is suitable for reverse-fed applications. The breaker is UL Listed and supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HDL
• Type: HDL
• Catalog No.: HDL36070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HDL36070
• Catalog Number: HDL36070
• Model: HDL36070
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HDL
• Type: HDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:785901839859

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HDL Series electrical distribution equipment that accepts HDL Series molded case circuit breakers. The HDL36070 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HDL Series
• 70A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Complete Breaker
