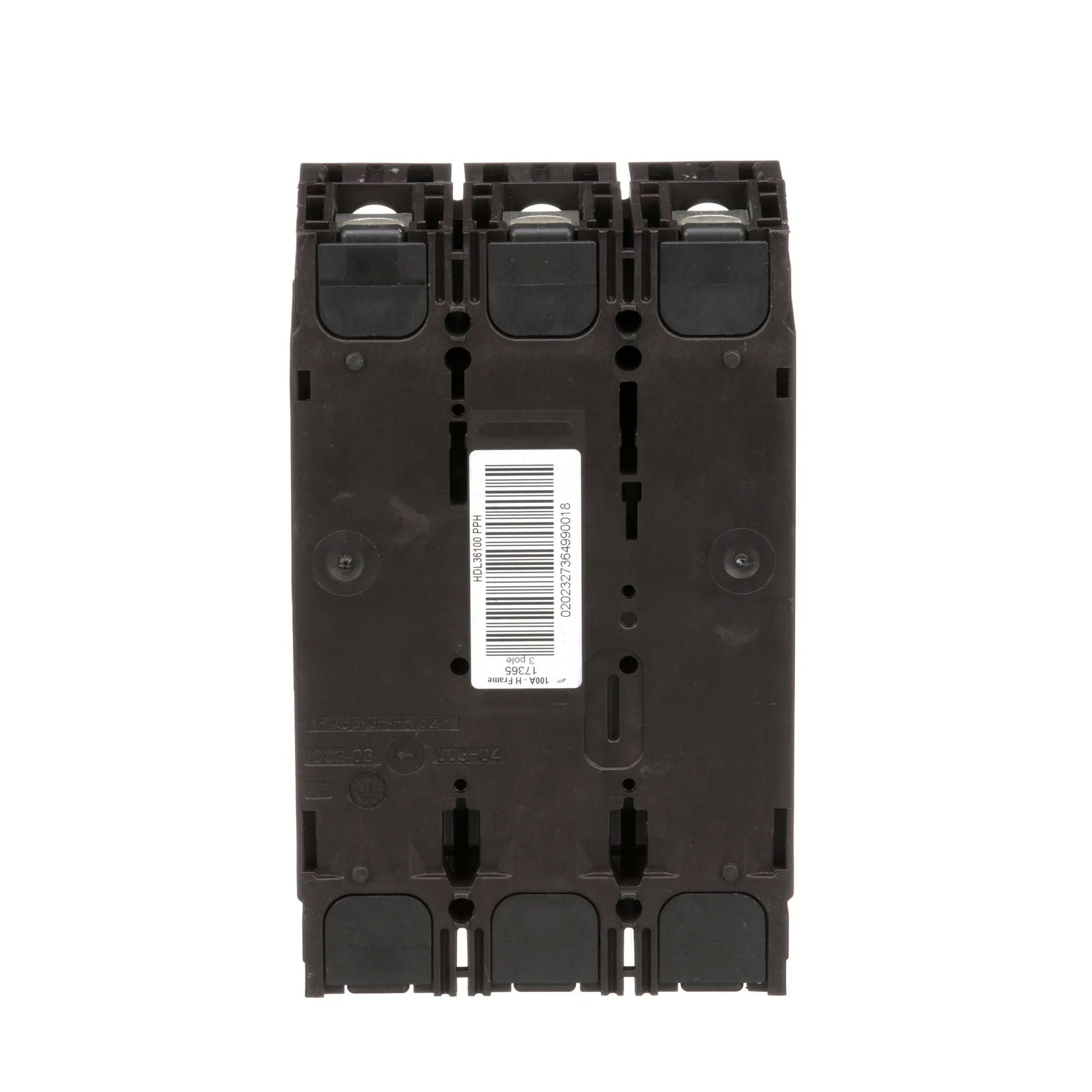

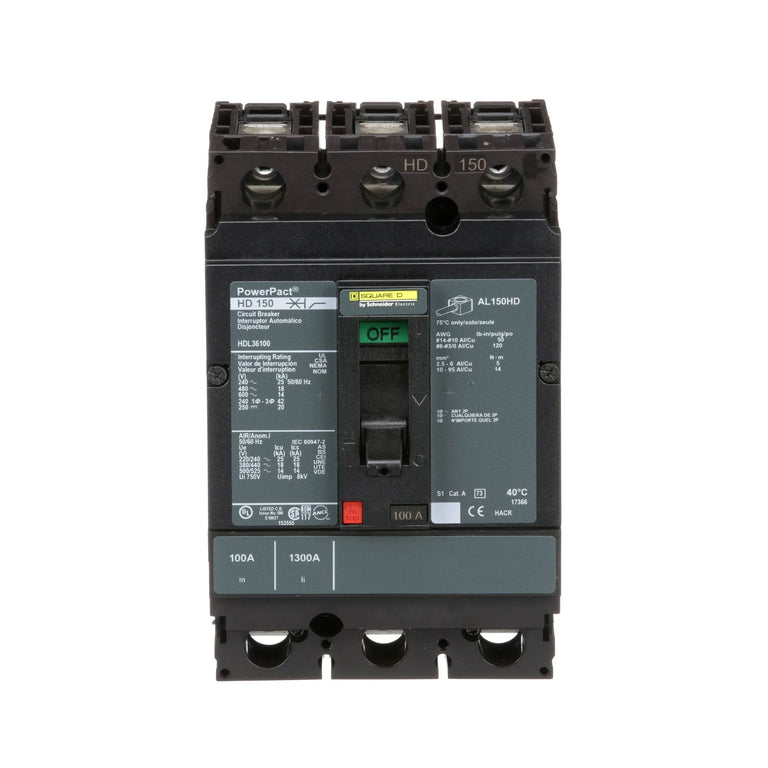

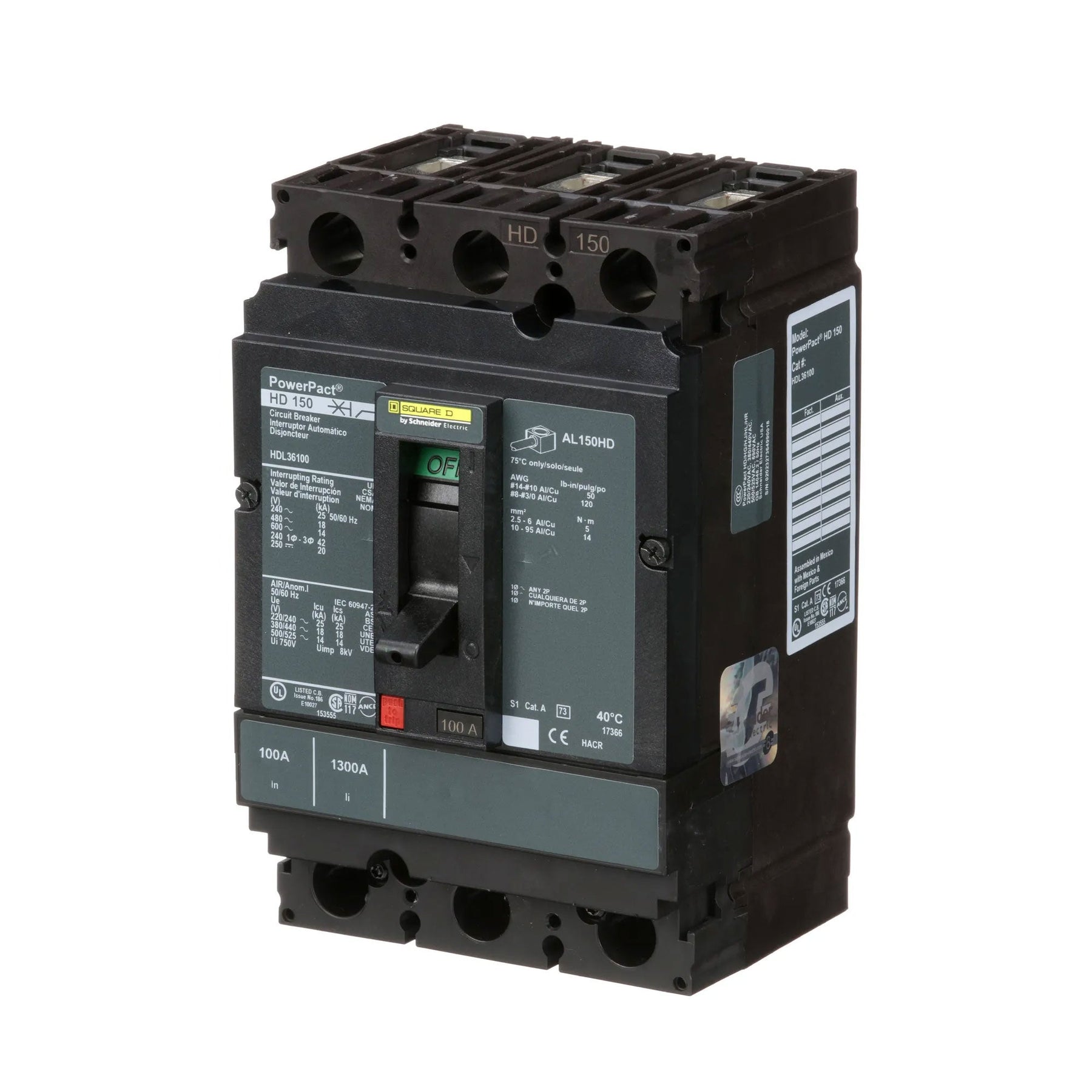

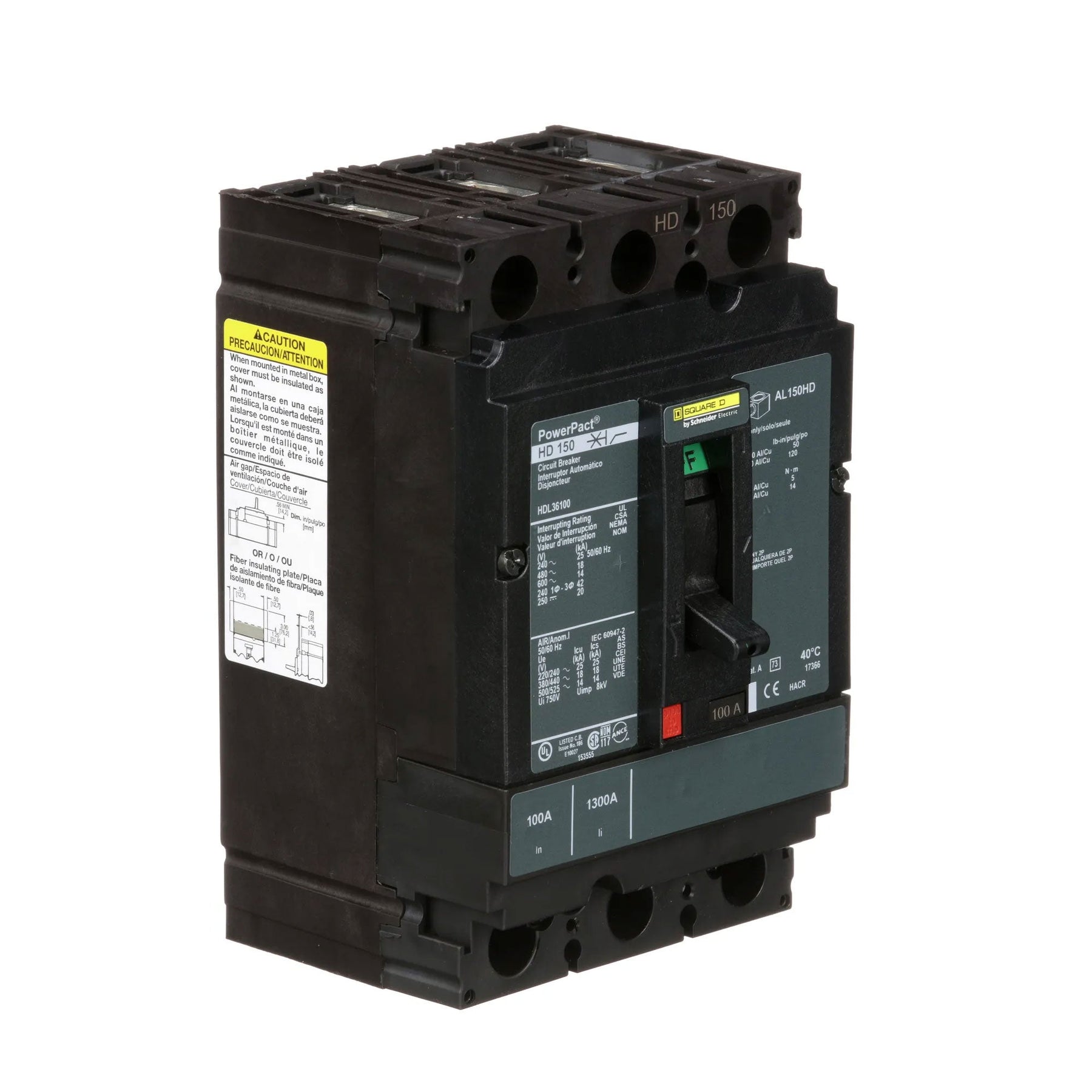

Square D HDL36100 Molded Case Circuit Breaker – 100A – 3-Pole – 600V – 18kA @ 480V – Feed-Thru – PowerPact HDL Series

The Square D HDL36100 is a 100A, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact HDL Series. It is rated for 600V and provides an 18kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a non-interchangeable LI (Long-Time and Instantaneous) trip unit, and line- and load-side lug terminals. It uses a feed-thru configuration, is UL Listed, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer : Schneider Electric / Square D
• Product Type : Molded Case Circuit Breaker
• Product Family : PowerPact
• Series : HDL
• Type : HDL
• Catalog No. : HDL36100
• Current Rating : 100A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• Voltage Rating : 600V
• Interrupting Rating : 18kA @ 480V
• Interrupting Capacity : Standard Interrupting Capacity
• Trip Technology : Thermal-Magnetic
• Trip Unit : Non-Interchangeable
• Trip Functions : LI – Long-Time and Instantaneous
• Connection Type : Feed-Thru
• Terminal Type : Line & Load Side Lug Terminals
• Reverse Feed : Suitable for Reverse-Fed Applications
• Application : Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : HDL36100
• Catalog Number : HDL36100
• Product Family : PowerPact
• Series : HDL
• Type : HDL
• Brand : Square D
• Manufacturer : Schneider Electric
• Product Type : Molded Case Circuit Breaker
• Model : HDL36100
• Breaker Configuration : 3-Pole, 100A
• upc:785901839934

Compatibility:

Designed for use with compatible Schneider Electric / Square D PowerPact HDL Series molded case circuit breaker applications. The HDL36100 is a 100A, 3-pole, 600V feed-thru MCCB with thermal-magnetic protection, a non-interchangeable LI trip unit, and line- and load-side lug terminals. It is suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, feed-thru arrangement, reverse-feed requirements, trip-unit configuration, and terminal requirements before installation.

Certifications:

• PowerPact HDL Series
• 100A Rating
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• LI – Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line & Load Side Lug Terminals
• UL Listed
• Suitable for Reverse-Fed Applications
