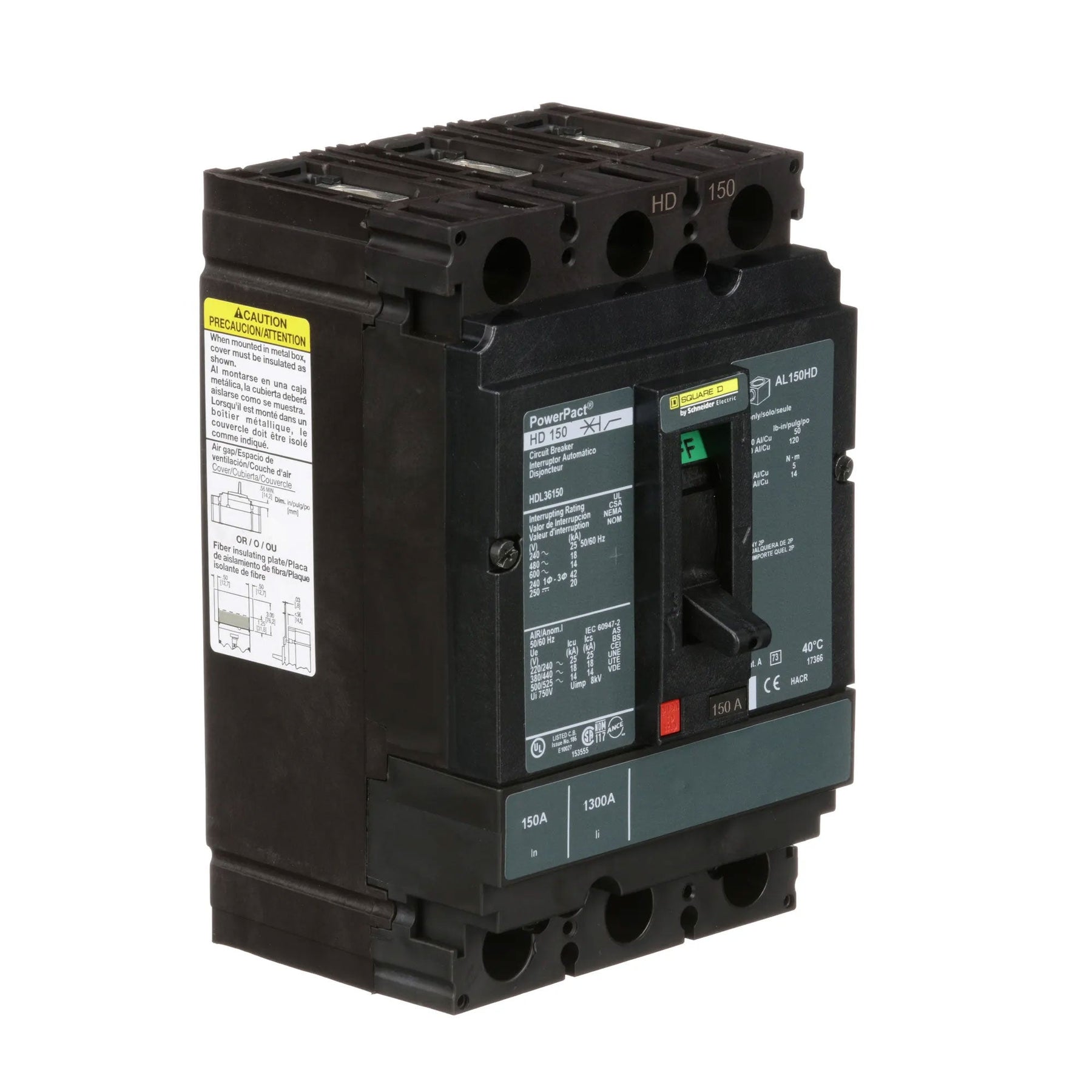

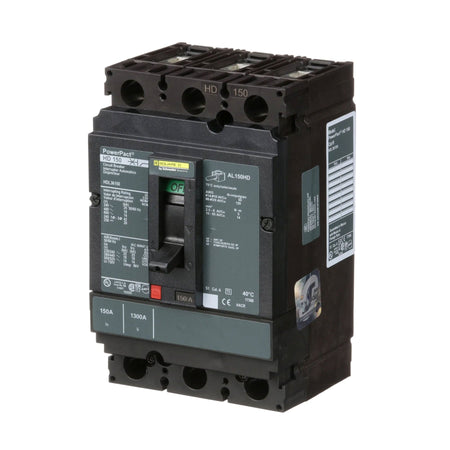

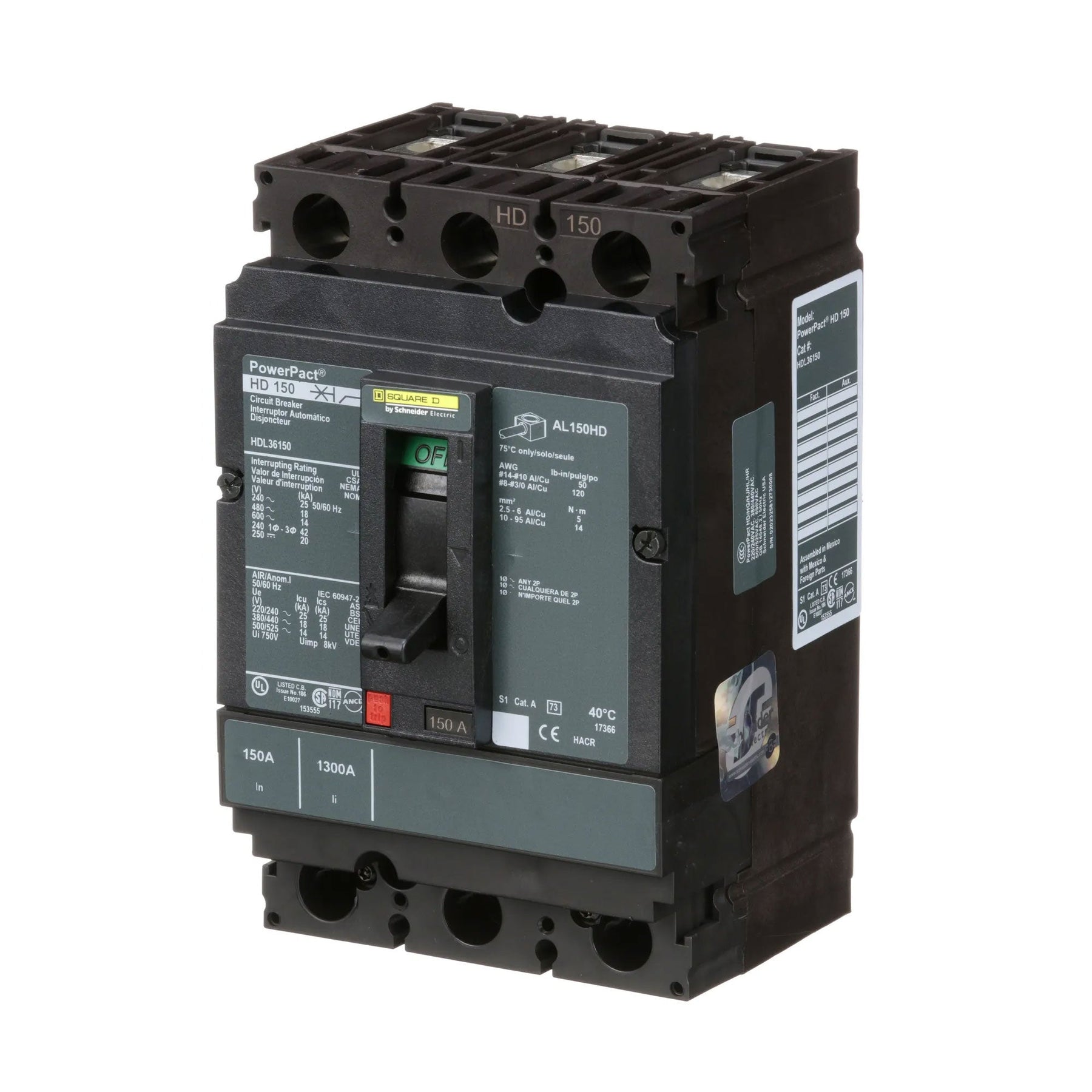

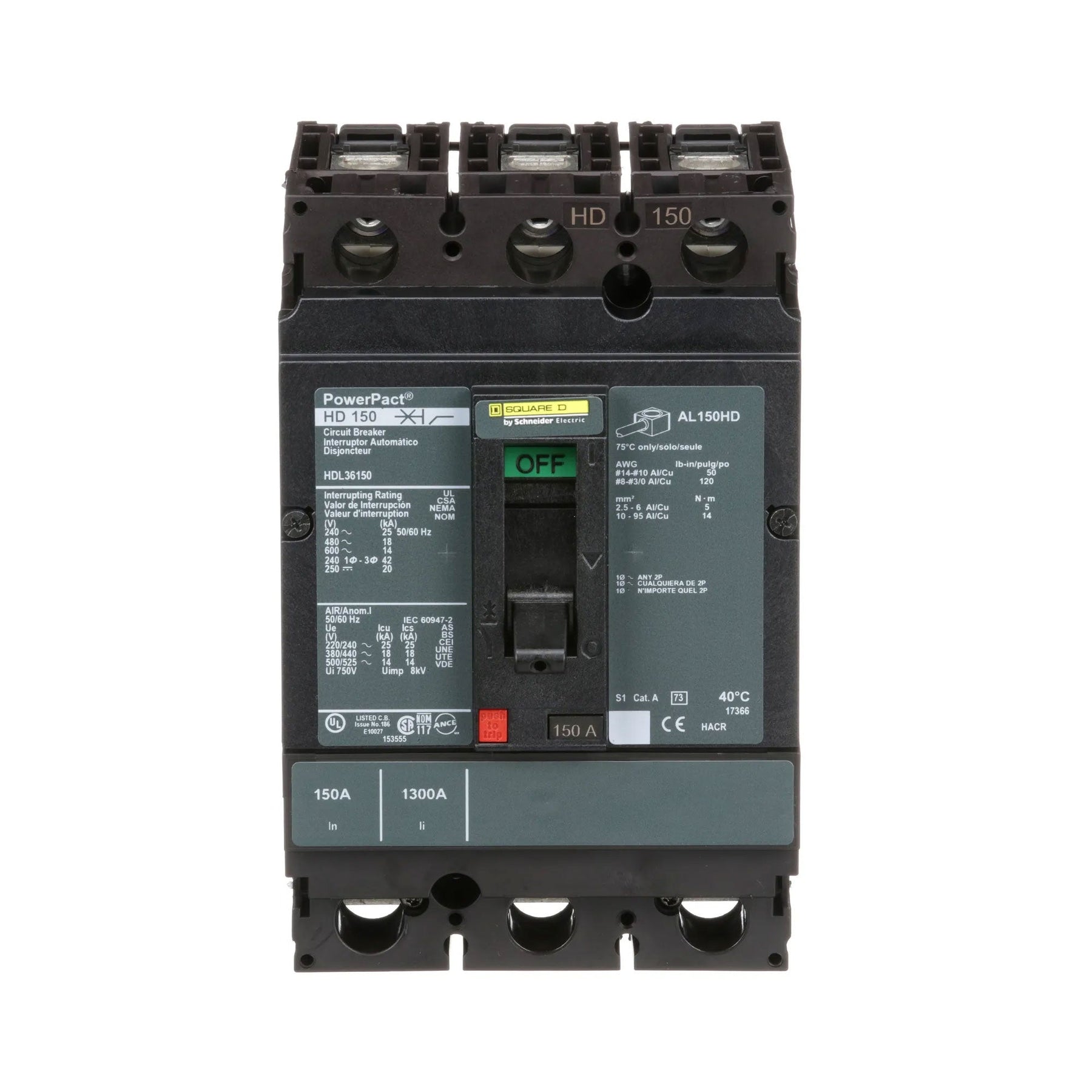

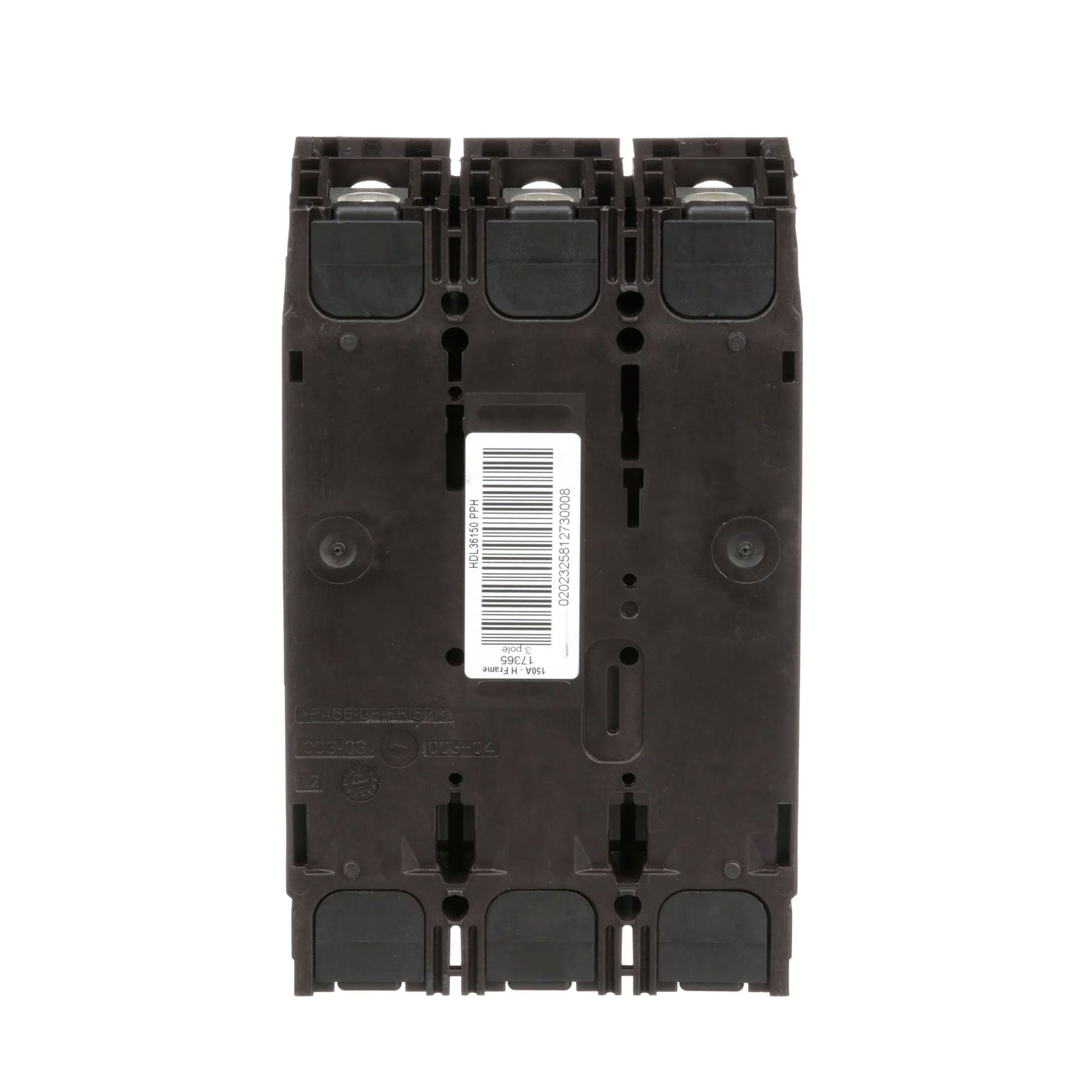

Square D HDL36150 Molded Case Circuit Breaker – 150A – 3-Pole – 600V AC – 18kA @ 480V AC – Feed-Through – PowerPact HDL Series

The Square D HDL36150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type HDL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HDL36150 is rated for 600V AC with an 18kA interrupting rating at 480V AC and uses a feed-through configuration with line- and load-side lug terminals. It has standard interrupting capacity and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HDL
• Type: HDL
• Catalog No.: HDL36150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 18kA @ 480V AC
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Through
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HDL36150
• Catalog Number: HDL36150
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HDL
• Type: HDL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: HDL36150
• Breaker Configuration: 3-Pole, 150A
• upc:785901623212

Compatibility:

Designed for use with compatible Square D PowerPact HDL Series electrical distribution equipment that accepts the specified molded case circuit breaker configuration. The HDL36150 is a 3-pole, 150A, 600V thermal-magnetic breaker with an 18kA interrupting rating at 480V AC, LI trip functions, and line- and load-side lug terminals.

The breaker is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and mounting configuration before installation.

Certifications:

• UL Listed
• PowerPact HDL Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 18kA @ 480V AC Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Through Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
