HED42B125L - Siemens Feed-Thru 480V 110A 2 pole circuit breaker 42kA@480V
Couldn't load pickup availability
Ask an expert
Description
HED42B125L

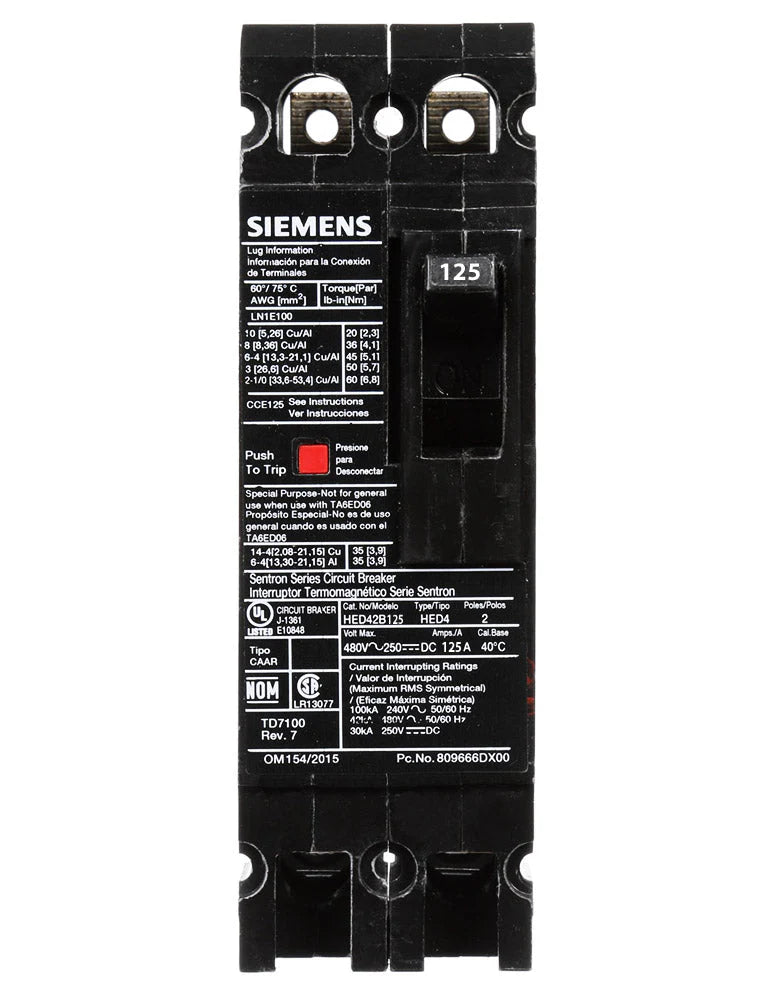

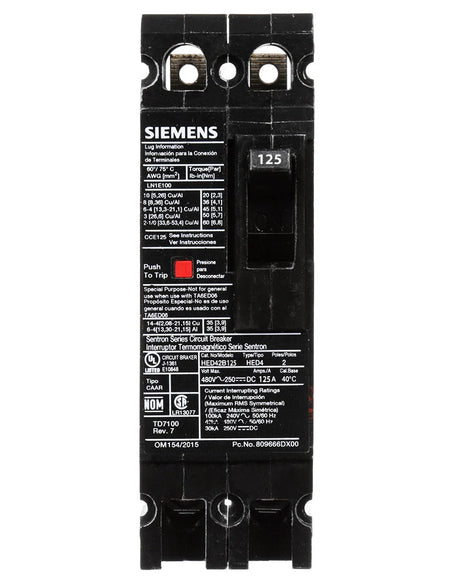

The Siemens HED42B125L is a Molded Case Circuit Breaker. This type HED circuit breaker is a member of The Sentron Series family. The HED42B125L is a 2 pole, 480 Volt, 110 amp rated circuit breaker, with an AIC rating of 42kA@480V. The HED42B125L is manufactured by Siemens. The HED42B125L uses a Feed-Thru connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: HED42B125L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 110
- Phase : 1
- Poles : 2
- AIC rating : 42kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643090279
- GTIN : 00783643090279
- Country of Origin : Mexico
- Weight : 2.71
- Certification : Ul Listed
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt-On - 125 Amp - 2 Pole - 480 Volt
